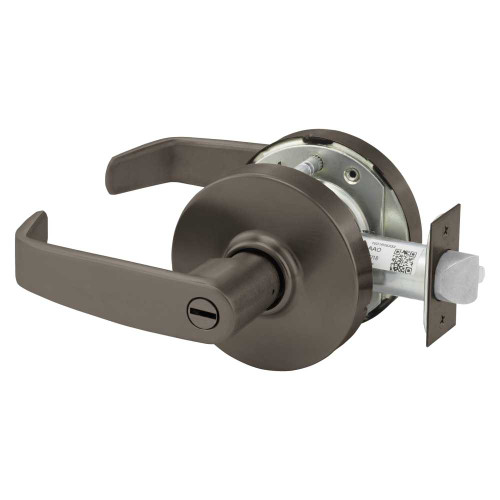

Sargent 28-10U65 LB 10B Grade 1 Privacy Bathroom Cylindrical Lock B Lever Non-Keyed Dark Oxidized Satin Bronze Oil Rubbed Finish Not Handed

Sargent

Write a Review
SKU:
28-10U65 LB 10B
$485.45
$485.45

Descriptions

TypeTitleURL
brochure/sales-materialSargent Bored Lock Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/SAR_Tzone_Generic_Brochure.pdf
Sargent Classroom Security Solutions Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/brochure/SARGENT_School_Security_with_Bored_and_Mortise_Lock_Sell_Sheet.pdf
catalog10 Line Cylindrical Lever Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Bored_Lock_10_Line_Cylindrical_Lock_Catalog.pdf
installation-instructions10 Line Lever Locks (Manufactured Prior to 2/17/04) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7133D.pdf
10 Line Lever Locks for 1-3/8" Door (1- Prefix) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7832C.pdf
10 Line Lever Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7133.pdf
10G26 and10G38 Function Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A8082B.pdf
7 & 10 Line Bored Locks (30- prefix) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6838D_low_res.pdf
7 & 10 Line Levers w/ Sargent Removable Core (63-) or Arrow, Best & Falcon Interchangeable Core Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6847.pdf
SF Prefix Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A8009A.pdf
Video: 10 Line Cylindrical Lock Installationhttps://youtu.be/GI1-bxVXhFM
literature10 Line Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/129.1_ASSA_ABLOY_mrEPD_Sargent10SeriesCylindricalLock.pdf
parts-list10 Line Exploded View (Manufactured Prior to 2/17/04) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/10.4B.pdf
10 Line Lever Lock Functions (Manufactured Prior to 2/17/04) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/10.1B.pdf
10 Line Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/SARGENT_Bored_Lock_10_Line_Parts_List.pdf
10 Line Parts List, Page 1 of 2 (Manufactured Prior to 2/17/04) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/10.3B.pdf
10-Line Parts List, Page 2 of 2 (Manufactured Prior to 2/17/04) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/10.5B.pdf
parts-manualSargent 10 Line Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-manual/SARGENT_Bored_Lock_10_Line_Parts_List.pdf
sell-sheet10 Line Cylindrical Lever Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/SARGENT_Bored_Lock_10_Line_Sell_Sheets.pdf
Hurricane Resistant Bored Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/Windstorm_Bored.pdf
template10-Line (All Functions) Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/4375.pdf
10G70/10G71 Bored Lock Electric Functions Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/4409.pdf
800 Strike for ANSI 115.3 - Standard Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/4131.pdf
808 Strike for ANSI A115.2 - 28 Prefix Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/4049.pdf
All Profile Series 10 Line Cylindrical Lock Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/4632.pdf
IN Series Trim 10L Bored Lock Door Manufacturers Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/4712.pdf

Specifications

Brand:
Sargent
Series:
10-Line Bored Lever Locks
Manufacturer:
Sargent
Bore Hole Diameter (in):
2-1/8"
Commercial Residential:
Commercial
Country Of Origin:
USA
Cylinder Type:
Non-Keyed
Finish:
613/US10B
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated:
3 Hours {A}
Function:
65-Privacy Bathroom Lock
Grade:
Grade 1
Latch Number:
36800
Lever/Knob/Pull:
Lever
Lever/Knob/Pull Design:
B Lever
Maximum Door Thickness (in):
2"
Rose/Escutcheon:
L Rose
Rose/Escutcheon Design:
L Rose
Rose/Escutcheon Dimensions (in):
3-1/2"
Strike Dimensions:
4-7/8"
Strike Number:
808
Sub-Type:
Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Uid:
SAR1002810U65LB10B
Url Title:
28-10u65-lb-10b
Title:
28-10U65 LB 10B
Sub Type:
Cylindrical Lock
Last Modified:
2024-03-01T05:17:32+00:00
Last Pricing:
2023-04-17T00:00:00+00:00
Msrp:
768
Avg Lead Time:
15
Finish Family:
Dark Bronze
Popularity:
7
Pack Weight:
4
Pack Length:
8.25
Pack Width:
7.125
Pack Height:
4.25
Pack Volume:
249.8203125
Limited Warranty:
7 Years
Unit Of Measure:
Each
Vendor:
ASSA ABLOY
Assembly Item:
1
