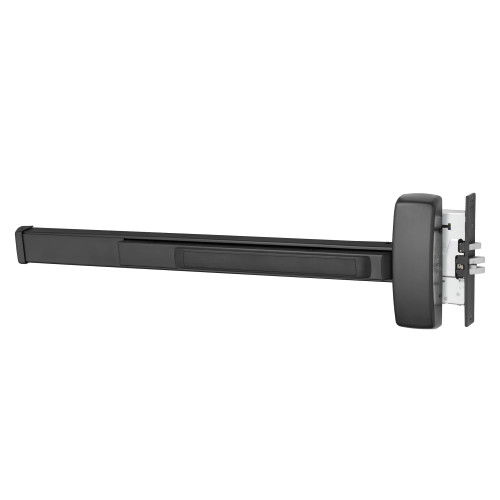

Sargent 56-8904J ETL LHR BSP Grade 1 Mortise Exit Bar Wide Stile Pushpad 42 Device Night Latch Function L Lever with Escutcheon Electric Latch Retraction Less Dogging Black Suede Powder Coat Finish Left Hand Reverse

Sargent

Write a Review
SKU:
56-8904J ETL LHR BSP
$3,420.29
$3,420.29

Descriptions

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
TypeTitleURL
brochure/sales-material80 Series Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90788_80_Series_Exit_Device_Brochure_FINAL.pdf
catalog80 Series Exit Device Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_catalog_80-series_9-2022.pdf
installation-instructions16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6848.pdf
43-Flush End Cap Rail Cutting Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7581B.pdf
55-Signal Switch for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6808C.pdf
565 & 665 Metal End Cap Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6924B.pdf
57-Delayed Action 80 Series Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6810F_Sargent_57_Prefix_Instructions_5-5-2009.pdf
57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installationhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7743E.pdf
59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7690G.pdf
AL- Alarmed Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7224C.pdf
Anti Vandal Pull Trim Instructions - 8800, 8900, PE80https://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/SAR_inst_88_8900_PE80_Anti_Vandal_Pull_Trim.pdf
Electric Dogging for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6835C_58-12-58-Electric_Dogging_11-24-08.pdf
Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6710B.pdf
Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6257D.pdf
literature80 Series Exit Device Environmental Product Declarationhttps://dvwi9lnoau63q.cloudfront.net/sargent/literature/130.1_ASSA_ABLOY_mrEPD_Sargent80SeriesMechanicalExit.pdf
Basic Fundamentals - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/web_90691_SAR_Exits_Tech_lo.pdf
parts-list816 Cylinder Dogging Kit Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80-9-D.pdf
8600/8700/8800/8900 Wide Stile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/80.2-C.pdf
parts-manual80 Series Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80_Series_Parts_Manual.pdf
sell-sheet56-Electric Latch Retraction Exit Device Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90625_SAR_56_Sell_lo.pdf
Windstorm Solutions - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90737_Windstorm_Exits.pdf

Specifications

Brand:
Sargent
Series:
8900 Series Mortise Exit Devices
Manufacturer:
Sargent
Commercial Residential:
Commercial
Country Of Origin:
USA
Cylinder Type:
1-3/4" Mortise
Dogging Option:
Less Dogging
Door Material:
Metal
Finish:
BSP
Finish Description:
Black Suede Powder Coat
Fire Rated:
No
Grade:
Grade 1
Includes Cylinder(s)?:
Yes
Minimum Stile (in):
4-1/2"
Sub-Type:
Mortise Exit Devices
Type:
Exit Devices
Uid:
SAR568904JETLLHRBSP
Url Title:
56-8904j-etl-lhr-bsp
Title:
56-8904J ETL LHR BSP Sargent Manufacturing Mortise Exit Devices
Sub Type:
Mortise Exit Devices
Last Modified:
2024-08-28T04:12:03+00:00
Last Pricing:
2024-03-05T00:00:00+00:00
Msrp:
5411
Avg Lead Time:
28
Finish Family:
Black
Popularity:
6
Pack Weight:
18
Pack Length:
38
Pack Width:
7.5
Pack Height:
6
Ul Listing:
UL10C & UL305
Ansi Code:
ANSI/BHMA A156.3
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
5 Years
Accessible:
Yes
Unit Of Measure:
Each
Vendor:
Assa Abloy
Assembly Item:
1
