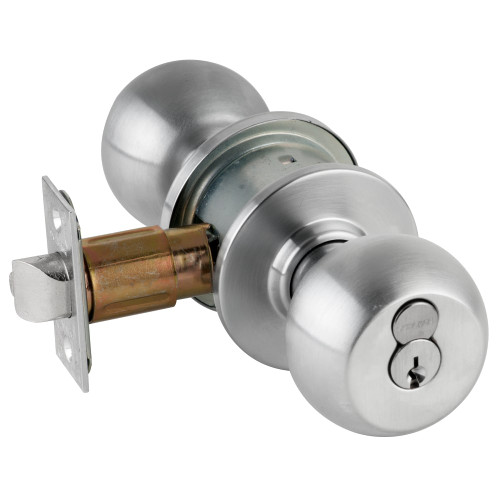

Schlage A80JD ORB 626 Grade 2 Storeroom Cylindrical Lock Orbit Knob FSIC Prep Less Core Satin Chrome Finish Non-Handed

Schlage

Write a Review
SKU:
A80JD ORB 626
$191.17
Schlage A80JD ORB 626 Grade 2 Storeroom Cylindrical Lock Orbit Knob FSIC Prep Less Core Satin Chrome Finish Non-Handed
UPC:
810007500751
$191.17

Descriptions

The safety and security of your buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level: Cycle Tests, Impact Tests, Resistance Tests, Strength Testing and Warped Door Tests. From military barracks and offices, to fine residential homes, Schlage A Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Our A Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building's design.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogSchlage A Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_A_Series_Catalog_102228.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage A Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/manuals/Schlage_A_Series_Service_Manual_106720.pdf

Specifications

Brand:
Schlage
Series:
A Series Knob Locks
Manufacturer:
Schlage
Backset (in):
2-3/8"
Parent Manufacturer:
Allegion
Base Material:
Brass, Bronze
Box Weight (lbs):
1.8 lbs
ADA:
No
Box Height (in):
4-1/4"
Bore Hole Diameter (in):
2-1/8"
Box Depth (in):
3-1/4"
Country Of Origin:
Mexico
Electronic:
No
Box Width (in):
8-1/4"
Door Range (Thickness):
1-3/8" - 1-7/8"
Door Handing:
Non-handed
Certification:
ANSI A156.2-2011, Series 4000, Grade 2, UL Listed
Finish:
626/US26D
Commercial Residential:
Commercial
Can Be Keyed:
Yes
Cylinder Type:
LFIC Housing
Latch Bore Diameter (in):
7/8"
Latch Number:
11-085
Grade:
Grade 2
Finish Description:
Satin Chrome
Latch Dimensions:
1" x 2-1/4"
Latch Description:
Spring Latch
Function:
Storeroom
Includes Cylinder(s)?:
No
Fire Rated:
3 Hours {A}
Keyway:
Less Core
Latch Throw (in):
1/2"
Lever/Knob/Pull Design:
Orbit
Specifications Bullet 2:
Orbit Knob
Lever/Knob/Pull:
Knob
Specifications Bullet 1:
Grade 2 Storeroom Function Cylindrical Lockset
Specifications Bullet 5:
1" x 2-1/4" Spring Latch
Specifications Bullet 7:
2-7/8" Projection
Specifications Bullet 6:
1-1/8" x 2-3/4" T-Strike
Specifications Bullet 3:
LFIC Housing Less Core
Specifications Bullet 4:
2-3/8" Backset
Product Warranty:
3 Year Limited Warranty
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 11:
ANSI A156.2-2011, Series 4000, Grade 2, UL Listed
Specifications Bullet 9:
For Doors 1-3/8" - 1-7/8" Thick
Specifications Bullet 12:
3 Year Limited Warranty
Specifications Bullet 8:
2-1/2" Rose
Rose/Escutcheon:
Rose
Maximum Door Thickness (in):
1-7/8"
Projection (in):
2-7/8"
Minimum Door Thickness (in):
1-3/8"
Strike Number:
10-001
UPC:
810007500751
Rose/Escutcheon Design:
Not Applicable
UOM:
1
Strike Description:
T-Strike
Strike Dimensions:
1-1/8" x 2-3/4"
Rose/Escutcheon Dimensions (in):
2-1/2"
Uid:
SCH100A80JDORB626
Url Title:
a80jd-orb-626
Title:
Schlage A80JD ORB 626 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-28T05:17:33+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
260
Avg Lead Time:
31
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
5
Pack Length:
9.5
Pack Width:
8.25
Pack Height:
4.75
Pack Volume:
372.28125
Ul Listing:
ANSI A156.2-2011, Series 4000, Grade 2, UL Listed
Ansi Code:
F86
Limited Warranty:
3 Year Warranty
Unit Of Measure:
Each
Vendor:
Allegion

Warranty Information

3 Year Limited Warranty
