Descriptions

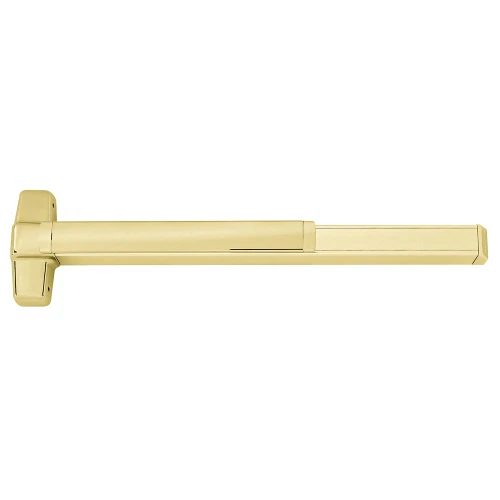

The Von Duprin 99L-BE-06 3 US4 RHR exit device is designed for reliable panic exit hardware on both single and double doors, including those with mullions. Crafted in the USA, this Grade 1 ANSI A156.3-2008 certified device ensures safety and durability in commercial settings. Its versatile design makes it suitable for a variety of door sizes, providing a secure and accessible exit solution that meets strict safety standards.
Constructed with a robust mechanism and finished in a sleek matte brass (606/US4), this exit device offers both aesthetic appeal and high-performance functionality. The device's centerline from the finished floor is approximately 39 13/16 inches, making it compliant with accessibility and building codes. Its deadlocking latch bolt with a 3/4-inch throw ensures reliable locking and unlocking, providing peace of mind in emergency situations.
The Von Duprin 99L-BE-06 features a pushbar that projects about 3 13/16 inches when neutral and around 3 1/16 inches when depressed, allowing easy operation even with minimal force. The device ships with a comprehensive screw pack suitable for metal or wood doors of 1 3/4 inches or 2 1/4 inches thickness. It is also available with optional fasteners for enhanced installation flexibility. This exit device is UL listed for panic exit hardware, emphasizing its compliance with fire and safety standards, although it is not fire-rated itself.
Designed for commercial applications, this Grade 1 device provides dependable security and quick egress. Its compact dimensions and durable construction make it a practical choice for high-traffic doorways in retail, office, and institutional environments. Backed by a three-year limited warranty, the Von Duprin 99L-BE-06 ensures long-lasting performance and peace of mind.
Features: * ANSI Grade 1 certified for high safety standards * Finished in durable matte brass (606/US4) for aesthetic appeal * Suitable for single and double doors with mullions * Centerline height approximately 39 13/16 inches from finished floor * Deadlocking latch bolt with 3/4-inch throw for secure locking * Pushbar projection: neutral 3 13/16 inches, depressed 3 1/16 inches * Includes screw pack for doors 1 3/4 inches or 2 1/4 inches thick * Field selectable device functions for diverse applications * UL listed for panic exit hardware compliance * Made in the USA with a three-year limited warranty
