Descriptions

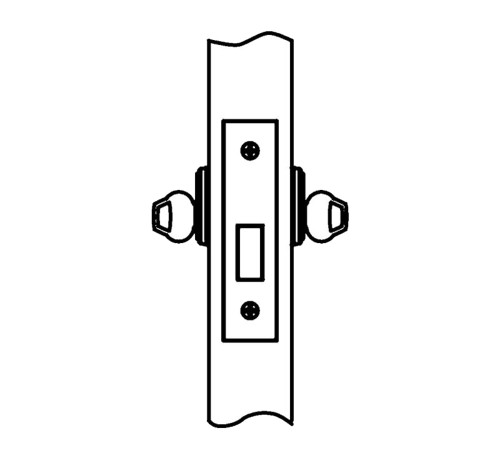

Mortise Deadbolt. Features
Handing: Non-handed.
Door Thickness: Standard- 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
Backset: 2-3/4" (70mm).
Lockcase: Heavy wrought steel; zinc dichromate finish.
Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm).
Deadbolt: Steel with hardened pin; 1" (25mm) throw.
Strike: Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available.
Cylinder: 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
Keys: Two nickel silver standard.
Keying Features Available: Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
Warranty: One-year limited.
| Type | Title | URL |
|---|---|---|
| catalog | Alarm Lock Product Catalog | https://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/ALA112U-Alarm-Lock-2019.pdf |
| Padlocks and Deadlocks Catalog | https://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/45012.pdf | |
| installation-instructions | DL4100 Series Auxiliary Deadlock Installation Instructions | https://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/DL4100-instructions.pdf |
| DL4100 Series Ergonomic Thumbturn Installation Instructions | https://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/DL4100-ergo-install.pdf |
