Descriptions

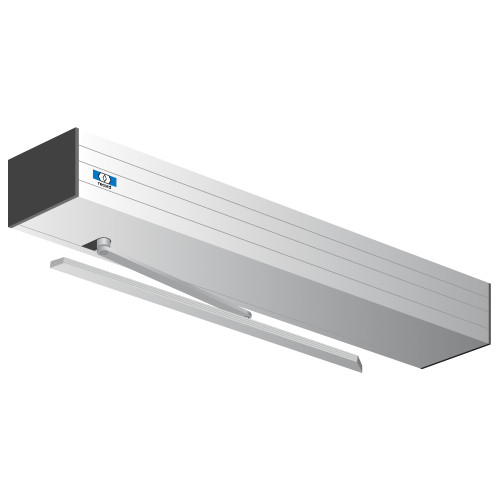

SimpleSwing Heavy Duty Surface Mounted Electromechanical Double Door Operator, 84" Header, Slide Track Arm Standard with Positive Stop, Push Side Mounted, Up to 48" Door, 90 Deg. Swing, Statuary Bronze Finish, Dual Handed
SimpleSwing door operators are controlled by a proprietary control system that is patented, powerful and intelligent providing for a complete door control throughout the opening and closing cycle even when multifaceted tasks are required.
- Header width dimensions: 4.5" x 5"
- Motor: 1/4hp
- Opening angle with track arm: 90 degrees
- Opening angle with standard arm: 120 degrees
- Electrical requirements: 120 VAC @ 15amps 60hz
- Power Supply: 24V AC/DC @.5amp for magnets, electric strikes
- ANSI/BHMA 156.19
- UL325/UL228
- Operating Conditions: -40°F and +140°F
