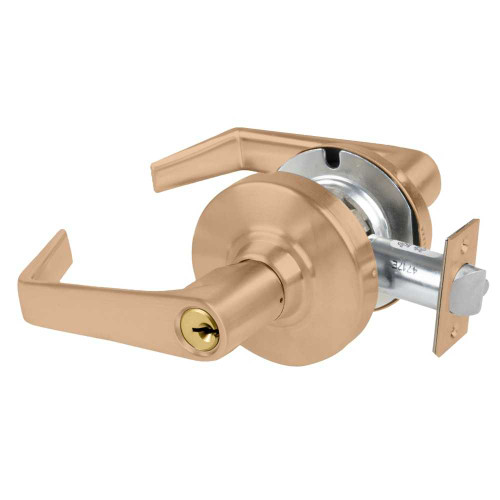

Schlage ALX53P TLR 612 Grade 2 Entrance Cylindrical Lock with Field Selectable Vandlgard Tubular Lever Conventional Cylinder Satin Bronze Finish Non-handed

Schlage

Write a Review
SKU:
ALX53P TLR 612
$234.61
$234.61

Descriptions

Since the beginning nearly 100 years ago, the Schlage Lock Company has consistently delivered innovation and continuous improvement to the solutions you’ve grown to trust. The Schlage ALX Series gives you the ability to use it as you would any other lock: ordered and delivered as a complete, configured product ready for installation. However, in its new modular design, ALX Series offers you the flexibility to utilize the separate components of chassis, function and lever packaged kits to create a lock to meet your needs on demand. Whether you are needing configured locks or change lock functionality, ALX Series can work for you. The ALX Series locksets are commonly used in Government, Office, Retail, and other commercial applications. The ALX Series has been certified Grade 2; exceeding 400,000 operating cycles without failure.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogALX Key Systems, Cylinders and Keys Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_Key_Systems_Cylinders_and_Keys_Catalog_109487.pdf
ALX Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ALX_Series_Catalog_113231_1.pdf
cut-sheetALX Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/sell-sheets/Schlage_ALX_Series_Cut_Sheet_113327.pdf
installation-guideSchlage ALX Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/Schlage_ALX_Installation_Instructions_113125.pdf
miscellaneousALX Configure Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ALX_How_To_Configure_Poster_113368.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
product-guideALX Cylinders and Keyways Reference Guidehttps://dvwi9lnoau63q.cloudfront.net/schlage/quick-reference-guide/Schlage_Cylinders_and_Key_Blanks_Quick_Reference_Brochure_109158_1.pdf
sell-sheetSchlage ALX Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/sell-sheets/Schlage_ALX_Series_Sell_Sheet_113320.pdf
service-manualALX Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/manuals/Schlage_ALX_Series_Service_Manual_113523.pdf

Specifications

Brand:
Schlage
Series:
ALX Series Lever Locks
Manufacturer:
Schlage
Bore Hole Diameter (in):
2-1/8 In.
Commercial Residential:
Commercial
Country Of Origin:
Mexico
Cylinder Type:
Conventional Cylinder
Finish:
612/US10
Finish Description:
Satin Bronze
Fire Rated:
3 Hours {A}
Function:
53-Entrance Lock
Grade:
Grade 2
Latch Number:
47267042
Lever/Knob/Pull:
Lever
Lever/Knob/Pull Design:
TLR - Tubular Lever
Maximum Door Thickness (in):
1-3/4 In.
Number of Keys:
2
Rose/Escutcheon:
Rose
Rose/Escutcheon Design:
3-7/16" Rose Diameter
Rose/Escutcheon Dimensions (in):
Rhodes
Strike Dimensions:
1-1/4 In. x 4-7/8 In.
Strike Number:
47267101
Sub-Type:
Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Uid:
SCHALX53PTLR612
Url Title:
alx53p-tlr-612
Title:
Schlage ALX53P TLR 612 Cylindrical Lock
Sub Type:
Cylindrical Lock
Last Modified:
2024-03-02T05:11:15+00:00
Last Pricing:
2024-03-01T00:00:00+00:00
Msrp:
399
Finish Family:
Matte Bronze
Popularity:
7
Pack Weight:
5
Pack Length:
9.5
Pack Width:
8.25
Pack Height:
4.75
Pack Volume:
372.28125
Ul Listing:
UL/cUL
Ansi Code:
A156.2-2011 Series 4000, Grade 2
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Vendor:
Allegion
Assembly Item:
1
