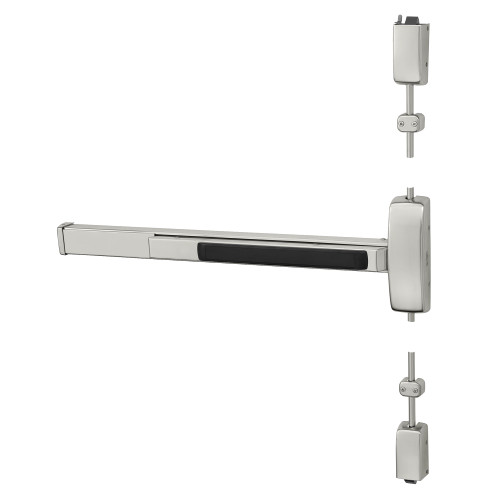

Sargent 12-8715F LHR 32D Grade 1 Surface Vertical Rod Exit Device Wide Stile Pushpad 36 Fire-Rated Device 96 Door Height Passage Function Less Dogging Satin Stainless Steel Finish Left Hand Reverse

Sargent

Write a Review
SKU:
12-8715F LHR 32D
$2,190.86
$2,190.86

Descriptions

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
TypeTitleURL
brochure/sales-material80 Series Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90788_80_Series_Exit_Device_Brochure_FINAL.pdf
catalog80 Series Exit Device Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_catalog_80-series_9-2022.pdf
installation-instructions16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6848.pdf
43-Flush End Cap Rail Cutting Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7581B.pdf
55-Signal Switch for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6808C.pdf
565 & 665 Metal End Cap Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6924B.pdf
57-Delayed Action 80 Series Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6810F_Sargent_57_Prefix_Instructions_5-5-2009.pdf
57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installationhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7743E.pdf
59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7690G.pdf
AL- Alarmed Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7224C.pdf
Electric Dogging for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6835C_58-12-58-Electric_Dogging_11-24-08.pdf
Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6710B.pdf
Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6257D.pdf
Video: 8700 Series Surface Vertical Rod Exit Device Installationhttps://youtu.be/RO7eNs3p9IQ
literatureBasic Fundamentals - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/web_90691_SAR_Exits_Tech_lo.pdf
parts-list12-HC8700 Top Case Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/87.10_PARTS_LIST_12-HC8706_TOP_CASE.pdf
14-8700 Series Surface Vertical Rod Series Bottom Case Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/87.7-1.pdf
59-8700 Surface Vertical Rod Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/87.15_PARTS_LIST_59-8700.pdf
816 Cylinder Dogging Kit Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80-9-D.pdf
8600/8700/8800/8900 Wide Stile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/80.2-C.pdf
parts-manual80 Series Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80_Series_Parts_Manual.pdf
sell-sheet56-Electric Latch Retraction Exit Device Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90625_SAR_56_Sell_lo.pdf
Windstorm Solutions - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90737_Windstorm_Exits.pdf
templateNB-8700 ET Trim Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/4714A.pdf

Specifications

Brand:
Sargent
Finish Description:
Satin Stainless Steel
Maximum Door Thickness (in):
2-1/4"
Specifications Bullet 1:
Fire Rated Surface Vertical Rod Exit Device, Passage
Box Width (in):
36"
Specifications Bullet 7:
For Metal/Wood Doors
Grade:
Grade 1
Minimum Stile (in):
4-1/2"
Center Case Dimensions:
2-5/8" x 8-5/16"
Door Height (in):
84"
Certification:
ANSI A156.3, Grade 1, UL Listed
Door Range (Thickness):
1-3/4" - 2-1/4"
Door Material:
Metal/Wood
Specifications Bullet 9:
3/4" Top - Bottom Latchbolts
Door Width Minimum (in):
33"
Manufacturer:
Sargent
Specifications Bullet 8:
3" Full Extension
Base Material:
Stainless Steel
Country Of Origin:
USA
Dogging Type:
Not Applicable
Latch Throw (in):
3/4"
Function:
Passage
Backset (in):
2-3/4"
Door Width Maximum (in):
36"
Includes Cylinder(s)?:
No
Cylinder Type:
Keyless
Specifications Bullet 13:
5 Year Warranty
Commercial Residential:
Commercial
UOM:
1
Specifications Bullet 4:
2-5/8" x 8-5/16" Center Case Dimension
Specifications Bullet 12:
ANSI A156.3, Grade 1, UL Listed
Strike Number:
646/655/624
End Cap Material:
Metal
Latch Description:
Top - Bottom Latchbolts
Electronic:
No
Fire Rated:
3 Hours {A}
Finish:
630/US32D
Dogging Option:
No
Specifications Bullet 10:
Metal End Cap
Product Warranty:
5 Year Warranty
Door Handing:
Left Hand Reverse
Keyway:
Not Applicable
Specifications Bullet 3:
2-3/4" Backset
Specifications Bullet 6:
For Doors 1-3/4" - 2-1/4" Thick
Screw Pack:
Machine Screws, Fasteners
Projection (in):
3"
Specifications Bullet 5:
For Doors 33" - 36" Wide
Type:
Exit Devices
Specifications Bullet 11:
Includes Machine Screws, Fasteners
Specifications Bullet 2:
4-1/2" Minimum Stile
Minimum Door Thickness (in):
1-3/4"
Series:
80 Series
Parent Manufacturer:
Assa Abloy
Selling Quantity:
1
Strike Description:
Solid Catch Strike
Uid:
SAR100128715FLHR32D
Url Title:
12-8715f-lhr-32d
Title:
12-8715F LHR 32D Sargent Surface Vertical Rod Exit Device
Sub Type:
Surface Vertical Rod Exit Devices
Series:
8700 Series Surface Vertical Rod Exit Devices
Last Modified:
2023-02-28T05:07:23+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
3201
Avg Lead Time:
23
Finish Family:
Matte Silver
Popularity:
1
Pack Weight:
15
Pack Length:
38
Pack Width:
7.5
Pack Height:
6
Pack Volume:
1710
Ul Listing:
UL10C & UL305
Ansi Code:
ANSI/BHMA A156.3
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
5 Years
Accessible:
No
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

5 Year Warranty
