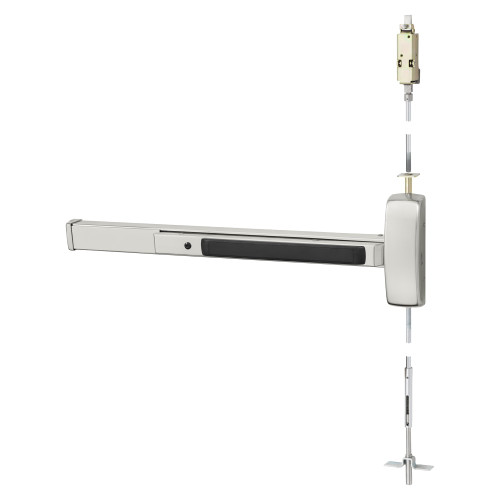

Sargent 12-MD8610F RHR 32D Grade 1 Concealed Vertical Rod Exit Device Wide Stile Pushpad 36 Fire-rated Device 120 Door Height Exit Only Less Dogging Satin Stainless Steel Finish Right Hand Reverse

Sargent

Write a Review
SKU:
12-MD8610F RHR 32D
$2,450.90
$2,450.90

Descriptions

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
TypeTitleURL
brochure/sales-material80 Series Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90788_80_Series_Exit_Device_Brochure_FINAL.pdf
catalog80 Series Exit Device Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_catalog_80-series_9-2022.pdf
installation-instructions16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6848.pdf
43-Flush End Cap Rail Cutting Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7581B.pdf
55-Signal Switch for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6808C.pdf
565 & 665 Metal End Cap Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6924B.pdf
57-Delayed Action 80 Series Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6810F_Sargent_57_Prefix_Instructions_5-5-2009.pdf
57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installationhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7743E.pdf
59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7690G.pdf
AL- Alarmed Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7224C.pdf
Electric Dogging for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6835C_58-12-58-Electric_Dogging_11-24-08.pdf
Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6710B.pdf
WD8600/12-WD8600/NB-WD8600/NB-12-WD8600 Concealed Vertical Rod Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A3937H.pdf
literature80 Series Mechanical Panic Exit Device - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/131.1_ASSA_ABLOY_mrEPD_SargentPanicExit80Series.pdf
Basic Fundamentals - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/web_90691_SAR_Exits_Tech_lo.pdf
parts-list16-LP/LR/LS8600 Low Profile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80.8AB-C.pdf
816 Cylinder Dogging Kit Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80-9-D.pdf
8600/8700/8800/8900 Wide Stile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/80.2-C.pdf
LR8600 Concealed Vertical Rod Series Active Mortise Case Assembly Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/86.12-A.pdf
parts-manual80 Series Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80_Series_Parts_Manual.pdf
sell-sheet56-Electric Latch Retraction Exit Device Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90625_SAR_56_Sell_lo.pdf
Windstorm Solutions - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90737_Windstorm_Exits.pdf

Specifications

Brand:
Sargent
Center Case Dimensions:
2-5/8" x 8-5/16"
Door Material:
Metal
Backset (in):
2-3/4"
Function:
Exit Only
Keyway:
Not Applicable
Cylinder Type:
Keyless
Specifications Bullet 13:
5 Year Warranty
Specifications Bullet 8:
3" Full Extension
Base Material:
Stainless Steel
Series:
8600 Series Concealed Vertical Rod Exit Devices
Door Range (Thickness):
1-3/4" - 2-1/4"
Manufacturer:
Sargent
Box Width (in):
36"
End Cap Material:
Metal
Specifications Bullet 11:
Includes Machine Screws, Fasteners
Latch Description:
Top - Bottom Latchbolts
Dogging Option:
No
Parent Manufacturer:
Assa Abloy
Electronic:
No
Specifications Bullet 5:
For Doors 33" - 36" Wide
Specifications Bullet 4:
2-5/8" x 8-5/16" Center Case Dimension
Minimum Stile (in):
4-1/2"
Commercial Residential:
Commercial
Specifications Bullet 10:
Metal End Cap
Specifications Bullet 12:
ANSI A156.3, Grade 1, UL Listed
Latch Throw (in):
3/4"
Fire Rated:
3 Hours {A}
Strike Description:
Square Corner
Door Height (in):
84"
Dogging Type:
Not Applicable
Door Width Maximum (in):
36"
Certification:
ANSI A156.3, Grade 1, UL Listed
Includes Cylinder(s)?:
No
Finish Description:
Satin Stainless Steel
Door Width Minimum (in):
33"
Specifications Bullet 6:
For Doors 1-3/4" - 2-1/4" Thick
Strike Number:
650/606
Country Of Origin:
USA
Finish:
630/US32D
Door Handing:
Right Hand Reverse
Specifications Bullet 1:
Fire Rated Concealed Vertical Rod Exit Device, Exit Only
Specifications Bullet 2:
4-1/2" Minimum Stile
Projection (in):
3"
Minimum Door Thickness (in):
1-3/4"
Product Warranty:
5 Year Warranty
Grade:
Grade 1
Selling Quantity:
1
Specifications Bullet 7:
For Metal Doors
Maximum Door Thickness (in):
2-1/4"
Specifications Bullet 3:
2-3/4" Backset
Screw Pack:
Machine Screws, Fasteners
Specifications Bullet 9:
3/4" Top - Bottom Latchbolts
UOM:
1
Type:
Concealed Vertical Rod Exit Device
Uid:
SAR10012MD8610FRHR32D
Url Title:
sar10012md8610frhr32d
Title:
12-MD8610F RHR 32D Sargent Concealed Vertical Rod Exit Device
Type:
Exit Devices
Sub Type:
Concealed Vertical Rod Exit Devices
Last Modified:
2023-02-26T05:03:00+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
3658
Avg Lead Time:
29
Finish Family:
Matte Silver
Popularity:
5
Pack Weight:
15
Pack Length:
38
Pack Width:
7.5
Pack Height:
6
Pack Volume:
1710
Ul Listing:
UL10C & UL305
Ansi Code:
ANSI/BHMA A156.3
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
5 Years
Accessible:
No
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

5 Year Warranty
