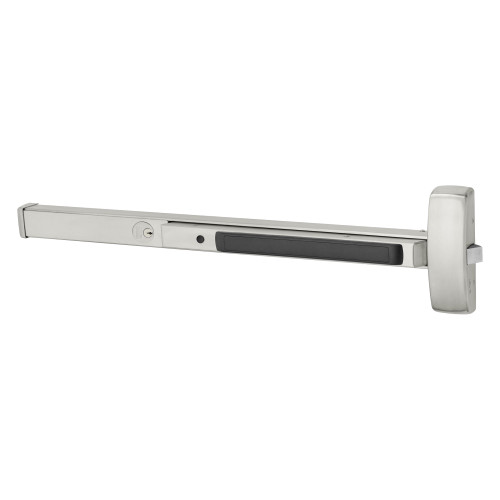

Sargent 16-8810F 32D Grade 1 Rim Exit Bar Wide Stile Pushpad 36 Device Exit Only Cylinder Dogging Cylinder Included Satin Stainless Steel Finish Field Reversible

Sargent

Write a Review
SKU:
16-8810F 32D
$1,553.13
$1,553.13

Descriptions

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
TypeTitleURL
brochure/sales-material80 Series Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90788_80_Series_Exit_Device_Brochure_FINAL.pdf
catalog2020 Sargent Electroguard Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/2020_Sargent_Electrogaurd_Catalog.pdf
80 Series Exit Device Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_catalog_80-series_9-2022.pdf
installation-instructions 8888, 12-8888, 8800, 12-8800, Etc. Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6770P.pdf
12-8800 Rim Series Center Chassis Assembly (16 Function)https://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.13-A.pdf
16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6848.pdf
43-Flush End Cap Rail Cutting Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7581B.pdf
55-Signal Switch for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6808C.pdf
565 & 665 Metal End Cap Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6924B.pdf
57-Delayed Action 80 Series Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6810F_Sargent_57_Prefix_Instructions_5-5-2009.pdf
57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installationhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7743E.pdf
59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7690G.pdf
80 Series Exit Device LL Lever Handle Trim Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7190D.pdf
8800 & 12-8800 Series Rim Exit Devices (16/28/63/66 Functions) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6703G.PDF
8893 Exit Device Inactive Trim Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6427H.PDF
8895 Exit Device Active Trim Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6911D.pdf
AL- Alarmed Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7224C.pdf
Anti Vandal Pull Trim Instructions - 8800, 8900, PE80https://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/SAR_inst_88_8900_PE80_Anti_Vandal_Pull_Trim.pdf
Electric Dogging for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6835C_58-12-58-Electric_Dogging_11-24-08.pdf
HC8800 & 12-HC8800 Rim Exit Mounting Shim Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7683A_low_res.pdf
Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6710B.pdf
Thru-Bolt for 80 Series 8700,8800 and 8900 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6257D.pdf
Video: 8500/8800 Exit Device Latchbolt Monitoring Adjustment Installationhttps://youtu.be/CCmqUVzyTgQ
literature80 Series Exit Device Environmental Product Declarationhttps://dvwi9lnoau63q.cloudfront.net/sargent/literature/130.1_ASSA_ABLOY_mrEPD_Sargent80SeriesMechanicalExit.pdf
80 Series Mechanical Panic Exit Device - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/131.1_ASSA_ABLOY_mrEPD_SargentPanicExit80Series.pdf
Basic Fundamentals - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/web_90691_SAR_Exits_Tech_lo.pdf
parts-list12-AL-8800/12-GL-8800 Rim Series Center Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.17-6-A.pdf
12-AL-8816/12-GL-8816 Rim Series Center Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.17-7.pdf
12-AL-8863/12-GL-8863 Rim Series Center Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.17-8.pdf
12-AL-8866/12-GL-8866 Rim Series Center Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.17-9.pdf
816 Cylinder Dogging Kit Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80-9-D.pdf
8600/8700/8800/8900 Wide Stile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/80.2-C.pdf
8800 Rim Series Center Chassis Assembly (16 Function) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.4-D.pdf
8800 Rim Series Center Chassis Assembly (28 Function) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.5-C.pdf
8800 Rim Series Center Chassis Assembly (63 Function) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.6-C.pdf
8800 Rim Series Center Chassis Assembly (66 Function) Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.7-B.pdf
8800/8888 Rim Series Center Chassis Assembly Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.1-1-B.pdf
8893 Dummy Rail Assembly Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.20-C.pdf
8895 Active Dummy Rail Assembly Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.21AB-B.pdf
AL-8800/GL-8800 Rim Series Center Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.17-1.pdf
AL-8816/GL-8816 Rim Series Center Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.17-2-B.pdf
AL-8828/GL-8828/12-AL8828/12-GL8828 Rim Series Center Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.17-3-B.pdf
AL-8866/GL-8866 Rim Series Center Chassis Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.17-5-B.pdf
HC8800/12-8800 Rim Series Center Chassis Parts List (All Functions)https://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/88.10-1-A.pdf
parts-manual80 Series Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80_Series_Parts_Manual.pdf
sell-sheet56-Electric Latch Retraction Exit Device Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90625_SAR_56_Sell_lo.pdf
Windstorm Solutions - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90737_Windstorm_Exits.pdf
template8800 Series Rim Exit Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/8800_Series_Rim_Exit_Template.pdf
8800/12-8800 & WS-12-8800 Rim Type Exit Device Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/8800.12-8800__WS-12-8800_Rim_Type_Exit_Device_Template.pdf
8800/12-8800 Rim Type Exit Device Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/8800.12-8800_Rim_Type_Exit_Device_Template.pdf
8893 Exit Device Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/8893_Exit_Device_Template.pdf
8895 Active (Dummy) Exit Device Templatehttps://dvwi9lnoau63q.cloudfront.net/sargent/templates/8895_Exit_Device_(Active_Dummy)Template.pdf

Specifications

Brand:
Sargent
Door Width Minimum (in):
33"
Specifications Bullet 6:
For Doors 33" - 36" Wide
Specifications Bullet 5:
2-5/8" x 8-5/16" Center Case Dimension
Parent Manufacturer:
Assa Abloy
Latch Throw (in):
3/4"
Latch Description:
Dead Latch
Grade:
Grade 1
Certification:
ANSI A156.3, Grade 1, UL Listed
Specifications Bullet 3:
4-1/2" Minimum Stile
Finish Description:
Satin Stainless Steel
Specifications Bullet 2:
(16) Cylinder Dogging
Electronic:
No
Door Height (in):
Not Applicable
UOM:
1
Cylinder Type:
Keyless
Specifications Bullet 12:
Metal End Cap
Specifications Bullet 15:
5 Year Warranty
Specifications Bullet 11:
Cylinder Dogging
Function:
Exit Only
Specifications Bullet 8:
For Metal/Wood Doors
Door Material:
Metal/Wood
Specifications Bullet 7:
For Doors 1-3/4" - 2-1/4" Thick
Dogging Type:
Cylinder Dogging
Keyway:
Not Applicable
Specifications Bullet 14:
ANSI A156.3, Grade 1, UL Listed
Door Range (Thickness):
1-3/4" - 2-1/4"
Door Handing:
Non-handed
Specifications Bullet 9:
3" Full Extension
Specifications Bullet 1:
Surface Exit Device, Exit Only
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 10:
3/4" Dead Latch
Minimum Stile (in):
4-1/2"
Dogging Option:
Yes
Fire Rated:
No
Finish:
630/US32D
Projection (in):
3"
Includes Cylinder(s)?:
No
Option 1:
(16) Cylinder Dogging
Specifications Bullet 13:
Includes Machine Screws, Fasteners
Base Material:
Stainless Steel
Maximum Door Thickness (in):
2-1/4"
Selling Quantity:
1
Box Width (in):
36"
Screw Pack:
Machine Screws, Fasteners
Door Width Maximum (in):
36"
End Cap Material:
Metal
Strike Description:
Solid Catch Strike
Series:
8800 Series Rim Exit Devices
Strike Number:
649
Product Warranty:
5 Year Warranty
Type:
Surface Exit Device
Center Case Dimensions:
2-5/8" x 8-5/16"
Country of Origin:
United States
Commercial/Residential:
Commercial
Backset (in):
2-3/4"
Manufacturer:
Sargent

Warranty Information

5 Year Warranty
