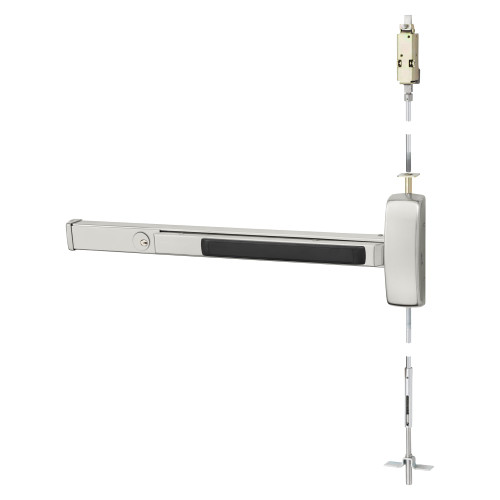

Sargent 16-MD8615F RHR 32D Grade 1 Concealed Vertical Rod Exit Device Wide Stile Pushpad 36 Device 120 Door Height Passage Function Cylinder Dogging Cylinder Included Satin Stainless Steel Finish Right Hand Reverse

Sargent

Write a Review
SKU:
16-MD8615F RHR 32D
$2,451.28
$2,451.28

Descriptions

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
TypeTitleURL
brochure/sales-material80 Series Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90788_80_Series_Exit_Device_Brochure_FINAL.pdf
catalog80 Series Exit Device Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_catalog_80-series_9-2022.pdf
installation-instructions16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6848.pdf
43-Flush End Cap Rail Cutting Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7581B.pdf
55-Signal Switch for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6808C.pdf
565 & 665 Metal End Cap Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6924B.pdf
57-Delayed Action 80 Series Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6810F_Sargent_57_Prefix_Instructions_5-5-2009.pdf
57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installationhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7743E.pdf
59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7690G.pdf
AL- Alarmed Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7224C.pdf
Electric Dogging for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6835C_58-12-58-Electric_Dogging_11-24-08.pdf
Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6710B.pdf
WD8600/12-WD8600/NB-WD8600/NB-12-WD8600 Concealed Vertical Rod Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A3937H.pdf
literature80 Series Mechanical Panic Exit Device - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/131.1_ASSA_ABLOY_mrEPD_SargentPanicExit80Series.pdf
Basic Fundamentals - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/web_90691_SAR_Exits_Tech_lo.pdf
parts-list16-LP/LR/LS8600 Low Profile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80.8AB-C.pdf
816 Cylinder Dogging Kit Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80-9-D.pdf
8600/8700/8800/8900 Wide Stile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/80.2-C.pdf
LR8600 Concealed Vertical Rod Series Active Mortise Case Assembly Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/86.12-A.pdf
parts-manual80 Series Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80_Series_Parts_Manual.pdf
sell-sheet56-Electric Latch Retraction Exit Device Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90625_SAR_56_Sell_lo.pdf
Windstorm Solutions - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90737_Windstorm_Exits.pdf

Specifications

Brand:
Sargent
Door Material:
Metal
Country Of Origin:
USA
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 15:
5 Year Warranty
Cylinder Type:
Keyless
Specifications Bullet 5:
2-5/8" x 8-5/16" Center Case Dimension
Commercial Residential:
Commercial
Door Range (Thickness):
1-3/4" - 2-1/4"
Function:
Passage
Specifications Bullet 8:
For Metal Doors
Dogging Option:
Yes
Specifications Bullet 13:
Includes Machine Screws, Fasteners
Fire Rated:
No
Door Height (in):
84"
Door Handing:
Right Hand Reverse
Door Width Maximum (in):
36"
Door Width Minimum (in):
33"
Parent Manufacturer:
Assa Abloy
Option 1:
(16) Cylinder Dogging
Electronic:
No
Specifications Bullet 12:
Metal End Cap
Selling Quantity:
1
Specifications Bullet 2:
(16) Cylinder Dogging
Product Warranty:
5 Year Warranty
Finish:
630/US32D
Minimum Stile (in):
4-1/2"
Finish Description:
Satin Stainless Steel
Maximum Door Thickness (in):
2-1/4"
Specifications Bullet 9:
3" Full Extension
Keyway:
Not Applicable
End Cap Material:
Metal
Strike Number:
650/606
Screw Pack:
Machine Screws, Fasteners
Strike Description:
Square Corner
Specifications Bullet 3:
4-1/2" Minimum Stile
Projection (in):
3"
Specifications Bullet 1:
Concealed Vertical Rod Exit Device, Passage
Latch Description:
Top - Bottom Latchbolts
Type:
Exit Devices
Manufacturer:
Sargent
Latch Throw (in):
3/4"
UOM:
1
Series:
8600 Series Concealed Vertical Rod Exit Devices
Base Material:
Stainless Steel
Specifications Bullet 6:
For Doors 33" - 36" Wide
Backset (in):
2-3/4"
Dogging Type:
Cylinder Dogging
Specifications Bullet 10:
3/4" Top - Bottom Latchbolts
Specifications Bullet 7:
For Doors 1-3/4" - 2-1/4" Thick
Specifications Bullet 14:
ANSI A156.3, Grade 1, UL Listed
Specifications Bullet 11:
Cylinder Dogging
Grade:
Grade 1
Specifications Bullet 4:
2-3/4" Backset
Box Width (in):
36"
Center Case Dimensions:
2-5/8" x 8-5/16"
Includes Cylinder(s)?:
No
Certification:
ANSI A156.3, Grade 1, UL Listed

Warranty Information

5 Year Warranty
