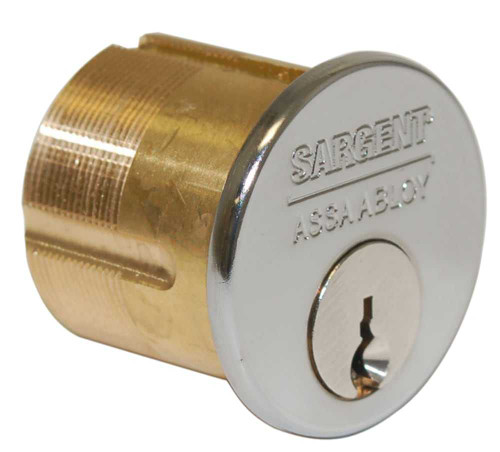

Sargent 41 HE 32D 1-1/8 Mortise Cylinder HE Keyway Satin Stainless Steel

Sargent

Write a Review
SKU:
41 HE 32D
$0.00
$0.00

Descriptions

Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8" through 3", minimum length for 7-Pin is 1-1/4". They are provided standard with Sargent offset cam number 13-0664, other cams are available.
TypeTitleURL
catalogSargent Cylinders and Components Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_Cylinders_and_Components_Catalog.pdf

Specifications

Brand:
Sargent
Diameter (in):
1-5/32" Cylinder Diameter
Base Material:
Stainless Steel
CAM Number:
13-0664
Specifications Bullet 5:
1-5/32" Cylinder Diameter
Finish Description:
Satin Stainless Steel
Finish:
630/US32D
Keyway:
HE Keyway
Parent Manufacturer:
Assa Abloy
Specifications Bullet 3:
Includes Trim (Installation) Ring, 2 Keys
CAM Description:
Standard Offset
Door Range (Thickness):
-
Country Of Origin:
USA
Includes:
Trim (Installation) Ring
Keying Detail:
1-Bitted
Specifications Bullet 1:
1-1/8" Mortise Cylinder
Specifications Bullet 2:
Conventional 6-pin HE Keyway 1-Bitted
Dimensions:
1-1/8"
Manufacturer:
Sargent
Number of Keys:
2
Number of Pins:
6-pin
Cylinder Type:
Conventional
Specifications Bullet 4:
Includes 13-0664 Standard Offset CAM
Uid:
SAR10041HE32D
Url Title:
41-he-32d
Title:
41 HE 32D Sargent Mortise Cylinder
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Cylinder
Series:
Mortise Cylinders
