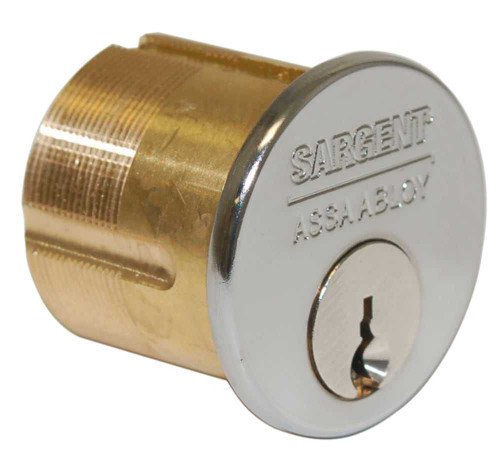

Sargent 41 HK 32D 1-1/8 Mortise Cylinder HK Keyway Satin Stainless Steel

Sargent

Write a Review
SKU:
41 HK 32D
$79.01
$79.01

Descriptions

Sargent mortise cylinders are made from solid brass and have a brass, bronze or stainless steel face cap avaialable in all architechtural finishes. They are furnished standard with number 97 rosette and compression spring. Optional collars and spacers are available and ordered separately. Sargent mortise cylinders are available in lengths ranging from 1-1/8" through 3", minimum length for 7-Pin is 1-1/4". They are provided standard with Sargent offset cam number 13-0664, other cams are available.
TypeTitleURL
catalogSargent Cylinders and Components Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_Cylinders_and_Components_Catalog.pdf

Specifications

Brand:
Sargent
Manufacturer:
Sargent
Cylinder Type:
Conventional
Base Material:
Stainless Steel
Parent Manufacturer:
Assa Abloy
Specifications Bullet 1:
1-1/8" Mortise Cylinder
Door Range (Thickness):
-
Diameter (in):
1-5/32" Cylinder Diameter
Includes:
Trim (Installation) Ring
CAM Number:
13-0664
Specifications Bullet 5:
1-5/32" Cylinder Diameter
Country Of Origin:
USA
CAM Description:
Standard Offset
Number of Keys:
2
Specifications Bullet 2:
Conventional 6-pin HK Keyway 1-Bitted
Number of Pins:
6-pin
Keyway:
HK Keyway
Specifications Bullet 4:
Includes 13-0664 Standard Offset CAM
Specifications Bullet 3:
Includes Trim (Installation) Ring, 2 Keys
Keying Detail:
1-Bitted
Dimensions:
1-1/8"
Finish:
630/US32D
Finish Description:
Satin Stainless Steel
Uid:
SAR10041HK32D
Url Title:
41-hk-32d
Title:
41 HK 32D Sargent Mortise Cylinder
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Cylinder
Series:
Mortise Cylinders
Last Modified:
2024-08-13T13:12:38+00:00
Last Pricing:
2024-03-01T00:00:00+00:00
Msrp:
125
Avg Lead Time:
28
Popularity:
8
Pack Weight:
0.525
Pack Length:
4.125
Pack Width:
2.375
Pack Height:
1.875
Pack Volume:
18.36914063
Baa Qualified:
Yes
Unit Of Measure:
Each
Assembly Item:
1
