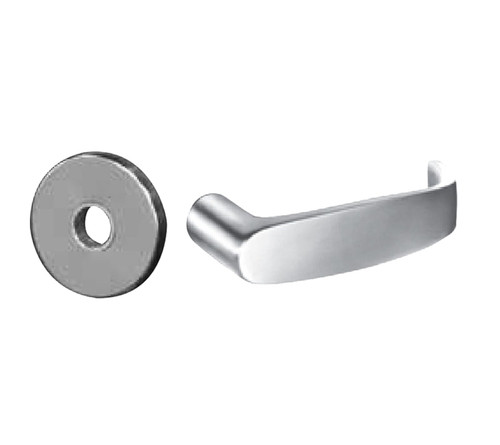

Sargent 70RX-8270-24V LNL 26D Fail Safe 24V Electrified Mortise Lock LN Rose L Lever SFIC Prep Less Core RX Switch Satin Chrome

Sargent

Write a Review
SKU:
70RX-8270-24V LNL 26D
$1,281.27
Sargent 70RX-8270-24V LNL 26D Fail Safe 24V Electrified Mortise Lock LN Rose L Lever SFIC Prep Less Core RX Switch Satin Chrome
$1,281.27

Descriptions

Featuring Ecoflex Technology, Sargent 8200 Electromechanical Mortise Locks are field changeable between fail safe and fail secure functions and operate off 12v through 24v power. They are designed to handle single opening, stand alone applications. They can also be readily integrated into sophisticated access control systems. They meet ANSI/BHMA A 156.13 Grade 1 requirements, are UL listed on fire doos and sitisfy industry standards for operating temperature, shock and fire hazard.
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
sell-sheetEcoflex Promotional Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90799A_Sargent_Ecoflex_Sell_Sheet_3.3.14_high_res.pdf

Specifications

Brand:
Sargent
Parent Manufacturer:
Assa Abloy
Backset (in):
2-3/4"
Manufacturer:
Sargent
ADA:
Yes
Series:
8270 Series Electrified Lever Mortise Locks
Can Be Keyed:
Yes
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Country Of Origin:
USA
Door Handing:
Non-handed
Cylinder Type:
Mortise SFIC Housing
Door Range (Thickness):
1-3/4" - 1-3/4"
Function:
Electronic Locking Storeroom
Grade:
Grade 1
FS/FSE Mode:
Fail Safe
Finish:
626/US26D
Latch Throw (in):
3/4"
Keyway:
Less Core
Latch Description:
Dead Latch
Includes Cylinder(s)?:
Yes
Lever/Knob/Pull:
Lever
Specifications Bullet 4:
Request to Exit
Specifications Bullet 2:
L Lever
Lever/Knob/Pull Design:
L
Specifications Bullet 1:
Grade 1 Electronic Locking Storeroom Function Mortise Lockset
Specifications Bullet 3:
Mortise SFIC Housing Less Core
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 7:
2-3/4" Backset
Specifications Bullet 6:
LN Rose
Specifications Bullet 5:
24 VDC Voltage Fail Safe
Specifications Bullet 8:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 14:
2 Year Warranty
Specifications Bullet 10:
2-3/8" Projection
Specifications Bullet 11:
2-1/8" Rose
Specifications Bullet 13:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Projection (in):
2-3/8"
Option 1:
Request to Exit
Minimum Door Thickness (in):
1-3/4"
Product Warranty:
2 Year Warranty
Maximum Door Thickness (in):
1-3/4"
Rose/Escutcheon Design:
LN
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Description:
ASA Strike
Rose/Escutcheon:
Rose
Rose/Escutcheon Dimensions (in):
2-1/8"
Strike Number:
82-0110
Voltage:
24 VDC Voltage
Uid:
SAR10070RX827024VLNL26D
Url Title:
70rx-8270-24v-lnl-26d
Title:
70RX-8270-24V LNL 26D Sargent Electric Mortise Lock
Type:
Electric Locks
Sub Type:
Electric Mortise Lock
Last Modified:
2023-02-13T10:46:29+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1758
Finish Description:
Satin Chrome
Popularity:
3
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
2 Years
Fire Rated:
2 Hours {B}
Unit Of Measure:
Each
Base Material:
Brass or Bronze
Assembly Item:
1

Warranty Information

2 Year Warranty
