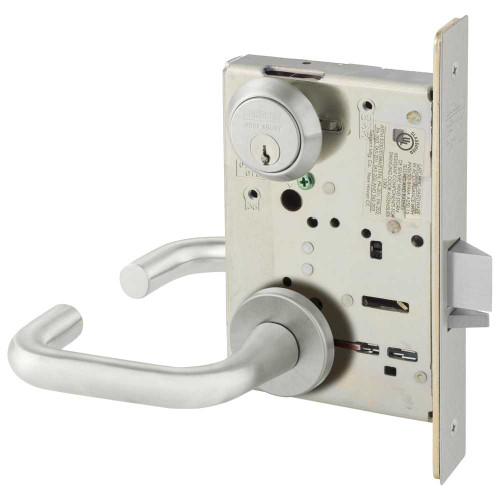

Sargent 8204 LNJ 26D Grade 1 Storeroom or Closet Mortise Lock J - Lever LN - Rose Field Reversible Conventional Cylinder ASA Strike Satin Chrome

Sargent

Write a Review
SKU:
8204 LNJ 26D
$768.63
Sargent 8204 LNJ 26D Grade 1 Storeroom or Closet Mortise Lock J - Lever LN - Rose Field Reversible Conventional Cylinder ASA Strike Satin Chrome
UPC:
810007500508
$768.63

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Country Of Origin:
USA
Fire Rated:
2 Hours {B}
Latch Description:
Dead Latch
Specifications Bullet 2:
J Lever
Keyway:
LA Keyway
Specifications Bullet 5:
2-3/4" Backset
Cylinder Type:
Mortise Conventional
Latch Dimensions:
1-1/4" x 8"
Manufacturer:
Sargent
Specifications Bullet 12:
For Doors 1-3/4" Thick
Backset (in):
2-3/4"
Finish Description:
Satin Chrome
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Can Be Keyed:
Yes
Specifications Bullet 8:
2-1/8" Rose Dimension
Latch Throw (in):
3/4"
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Deadbolt Throw (in):
Not Applicable
Function:
Storeroom
Base Material:
Brass Bronze
Electronic:
No
Lever/Knob/Pull:
Lever
Commercial/Residential:
Commercial
Series:
8200 Line Lever Mortise Locks
Specifications Bullet 4:
LN Rose
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 1:
Grade 1 Storeroom Function Mortise Lockset
Interior/Exterior:
Interior/Exterior
Includes Cylinder(s)?:
Yes
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 3:
Mortise Conventional LA Keyway
Door Range (Thickness):
1-3/4" - 1-3/4"
Grade:
Grade 1
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Projection (in):
2-13/16"
Pocket Dimensions:
6-5/8" x 4-1/2"
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 14:
10 Year Warranty
Rose/Escutcheon Dimensions (in):
2-1/8"
UOM:
1
Rose/Escutcheon:
Rose
Pocket Depth (in):
6-5/8" x 4-1/2"
Product Warranty:
10 Year Warranty
Rose/Escutcheon Design:
LN
Parent Manufacturer:
Assa Abloy
ADA:
Yes
Selling Quantity:
1
Strike Dimensions:
1-1/4" x 4-7/8"
Door Handing:
Non-handed
Specifications Bullet 7:
2-13/16" Projection
Strike Description:
ASA Strike
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Armor Front Dimensions:
1-1/4" x 8"
Finish:
US26D
UPC:
810007500508
Strike Number:
82-0110
Lever/Knob/Pull Design:
J
Minimum Door Thickness (in):
1-3/4"
Uid:
SAR1008204LNJ26D
Url Title:
8204-lnj-26d
Title:
8204 LNJ 26D Sargent Manufacturing Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-16T05:13:37+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1082
Finish:
626/US26D
Popularity:
9
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
