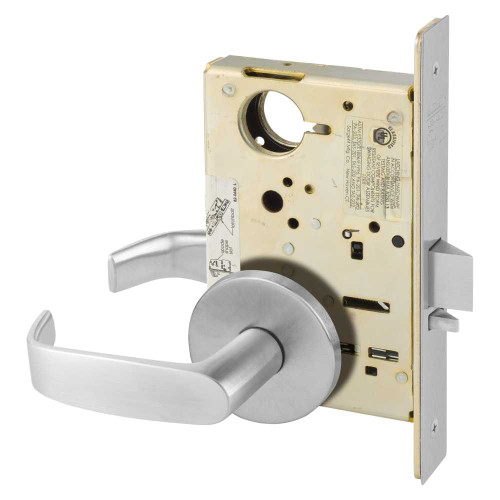

Sargent 8205 OL 26D Grade 1 Office or Entry Mortise Lock L - Lever O - Rose Field Reversible Conventional Cylinder ASA Strike Satin Chrome

Sargent

Write a Review
SKU:
8205 OL 26D
$884.31
Sargent 8205 OL 26D Grade 1 Office or Entry Mortise Lock L - Lever O - Rose Field Reversible Conventional Cylinder ASA Strike Satin Chrome
$884.31

Descriptions

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
TypeTitleURL
catalogSargent 7800/8200 Series Mortise Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Mortise_Lock_78008200_Series_Catalog.pdf
Sargent Healthcare Hardware Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SARGENT_Speciality_Hardware_Catalog.pdf
installation-instructions7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_Sectional_Trim__V_Series_Indicators.pdf
7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800-8200_Series_Mortise_Lock_w_VN1_Escutcheon_Trim__V_Series_Indicators_Installatio_Instructions.pdf
7800/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/7800Knob8200LeverMortiseLockEscutcheonRoseTrim.pdf
7900/8200 Series Mortise Locks Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/8200installationA8202A.pdf
Video: 8200 Series Mortise Lock Installationhttps://youtu.be/DWRY72iLKN4
literatureSargent 8200 Series Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/133.1_ASSA_ABLOY_mrEPD_Sargent8200SeriesMortiseElectrified.pdf
sell-sheetSargent 8200 Series Mortise Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/8200sellsheetv7.pdf

Specifications

Brand:
Sargent
Commercial/Residential:
Commercial
Includes Cylinder(s)?:
Yes
Latch Description:
Dead Latch
Keyway:
LA Keyway
ADA:
Yes
Lever/Knob/Pull:
Lever
Maximum Door Thickness (in):
1-3/4"
Door Handing:
Non-handed
Specifications Bullet 2:
L Lever
Specifications Bullet 9:
3/4" Dead Latch
Series:
8200 Line Lever Mortise Locks
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 7:
2-3/8" Projection
Function:
Entrance Thumbturn
Country Of Origin:
USA
Deadbolt Throw (in):
Not Applicable
Base Material:
Brass Bronze
Electronic:
No
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Cylinder Type:
Mortise Conventional
Specifications Bullet 8:
2-3/4" Rose Dimension
Grade:
Grade 1
Rose/Escutcheon Dimensions (in):
2-3/4"
Finish:
626/US26D
Parent Manufacturer:
Assa Abloy
Lever/Knob/Pull Design:
L
Pocket Dimensions:
6-5/8" x 4-1/2"
Certification:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Latch Throw (in):
3/4"
Door Range (Thickness):
1-3/4" - 1-3/4"
Fire Rated:
2 Hours {B}
Manufacturer:
Sargent
Selling Quantity:
1
Pocket Depth (in):
6-5/8" x 4-1/2"
Interior/Exterior:
Interior/Exterior
Specifications Bullet 3:
Mortise Conventional LA Keyway
Finish Description:
Satin Chrome
Backset (in):
2-3/4"
Specifications Bullet 4:
O Rose
Can Be Keyed:
Yes
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Armor Front Dimensions:
1-1/4" x 8"
Specifications Bullet 1:
Grade 1 Entrance Thumbturn Function Mortise Lockset
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 12:
For Doors 1-3/4" Thick
Product Warranty:
10 Year Warranty
Specifications Bullet 13:
ANSI A156.13, Series 1000, Grade 1, A117.1, UL Listed
Specifications Bullet 11:
6-5/8" x 4-1/2" Pocket Dimension
Rose/Escutcheon Design:
O
Specifications Bullet 14:
10 Year Warranty
Strike Description:
ASA Strike
UOM:
1
Projection (in):
2-3/8"
Strike Number:
82-0110
Latch Dimensions:
1-1/4" x 8"
Rose/Escutcheon:
Rose
Strike Dimensions:
1-1/4" x 4-7/8"
Uid:
SAR1008205OL26D
Url Title:
8205-ol-26d
Title:
8205 OL 26D Sargent Manufacturing Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T09:41:48+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
1245
Avg Lead Time:
26
Popularity:
9
Pack Weight:
6.1
Pack Length:
9.25
Pack Width:
5.625
Pack Height:
4.375
Pack Volume:
227.6367188
Baa Qualified:
Yes
Limited Warranty:
10 Years
Unit Of Measure:
Each
Assembly Item:
1

Warranty Information

10 Year Warranty
