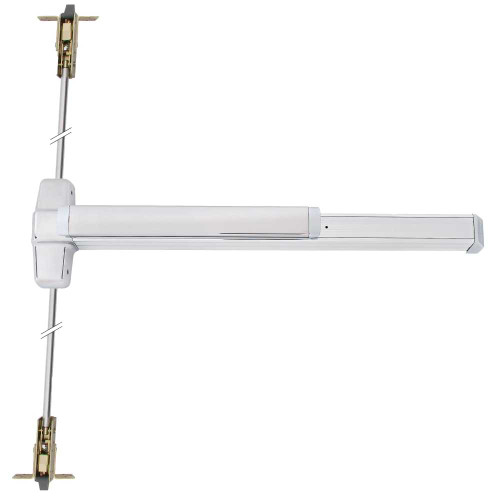

  • Von Duprin 9947L-06 3 26D RHR Grade 1 Concealed Vertical Rod Exit Bar Wide Stile Pushpad 36 Device 80 to 100 Door Height Classroom Function 06 Lever with Escutcheon Hex Key Dogging Satin Chrome Finish Field Reversible

Von Duprin 9947L-06 3 26D RHR Grade 1 Concealed Vertical Rod Exit Bar Wide Stile Pushpad 36 Device 80 to 100 Door Height Classroom Function 06 Lever with Escutcheon Hex Key Dogging Satin Chrome Finish Field Reversible

Von Duprin

Write a Review
SKU:
9947L-06 3 26D RHR
$2,692.45
Von Duprin 9947L-06 3 26D RHR Grade 1 Concealed Vertical Rod Exit Bar Wide Stile Pushpad 36 Device 80 to 100 Door Height Classroom Function 06 Lever with Escutcheon Hex Key Dogging Satin Chrome Finish Field Reversible
$2,692.45

Descriptions

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.
TypeTitleURL
brochure/sales-materialVon Duprin Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/vonduprin/miscellaneous/ALLEGION_finish-chart.pdf
catalogVon Duprin 98/99 Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/vonduprin/catalogs/Von_Duprin_98.99_Series_Catalog_106590.pdf
data-sheetChexit (CX) Data Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/Von_Duprin_Chexit_Data_Sheet_110102.pdf
QEL Data Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/106586.pdf
installation-instructionsCX98/9947WDC Installations Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109254.pdf
QEL 98/99 Baseplate Conversion Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/110746.pdf
QEL Conversion Kit for 98/99 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/110745.pdf
Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/107710.pdf
Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109265.pdf
Von Duprin 33/99 LD Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109278.PDF
Von Duprin Pneumatic Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/107614.pdf
miscellaneousQuiet Electric Latch FAQhttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/110624.pdf
price-book2024 Von Duprin Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/vonduprin/pricebooks/VON_pricebook_3-2024.pdf
sell-sheetQEL Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/103226.pdf
Von Duprin Exit Alarm Kit Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/105255.pdf
service-manual98/9947 Service Manualhttps://dvwi9lnoau63q.cloudfront.net/vonduprin/common-part-manuals/105675.pdf
template283 Strike Application for 98/9947-WDC, 33/3547-WDC, & 33/3547A-WDC Wood Door Templatehttps://dvwi9lnoau63q.cloudfront.net/vonduprin/wood-templates/109341.pdf
98/9947F and 98/9948F Templatehttps://dvwi9lnoau63q.cloudfront.net/vonduprin/templates/VD_98_9947-F_98_9948-F_Concealed_Vertical_Rod_Template.pdf
CX98/9947 and CX98/9948 Templatehttps://dvwi9lnoau63q.cloudfront.net/vonduprin/templates/VD_CX98_9947-F_CX98_9948-F_Concealed_Vertical_Rod_Template.pdf
STD & CX98/9947WDC Series Wood Door Templatehttps://dvwi9lnoau63q.cloudfront.net/vonduprin/wood-templates/108741.pdf
STD & CX98/9947WDC-F-LBR Series Wood Door Templatehttps://dvwi9lnoau63q.cloudfront.net/vonduprin/wood-templates/109340.pdf
video10 Things You Need to Know About the Von Duprin Chexithttps://youtu.be/JAhF99eIAMg

Specifications

Brand:
Von Duprin
Finish:
626/US26D
Minimum Stile (in):
4-1/2"
Dogging Type:
Hex Key
Product Warranty:
3 Year Warranty
Can Be Keyed:
Yes
Certification:
ANSI A156.3-2014, Grade 1
Parent Manufacturer:
Allegion
Screw Pack:
Metal/Wood Screws
Cylinder Type:
Less Cylinder
Specifications Bullet 4:
Less Cylinder
Door Width Maximum (in):
36"
Dogging Option:
Yes
Finish Description:
Satin Chrome
Door Handing:
Right Hand Reverse
End Cap Material:
Cast Zinc
Specifications Bullet 3:
36" x 84" Device
Center Case Dimensions:
8" x 2-3/4" x 2-3/8"
Base Material:
Brass Bronze
Door Width Minimum (in):
28"
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 9:
Includes Metal/Wood Screws
Country Of Origin:
USA
Fire Rated:
No
Specifications Bullet 10:
ANSI A156.3-2014, Grade 1
Electronic:
No
Projection (in):
3-13/16"
Commercial Residential:
Commercial
Function:
Lever Locking
Door Height (in):
84"
Specifications Bullet 7:
For Doors 28" - 36" Wide
Specifications Bullet 6:
3-13/16" Device Projection
Door Range (Thickness):
1-3/4" - 1-3/4"
Grade:
Grade 1
Specifications Bullet 11:
3 Year Warranty
Specifications Bullet 5:
4-1/2" Minimum Stile
Lever/Knob/Pull:
Lever
Keyway:
Not Applicable
ADA:
Yes
Strike Number:
338/385A
Specifications Bullet 2:
996L-06 Lever Locking Lever
Lever/Knob/Pull Design:
996L-06
Selling Quantity:
1
Door Material:
Metal/Wood
Specifications Bullet 1:
Concealed Vertical Rod Exit Device
Product Width (in):
36"
UOM:
1
Latch Throw (in):
5/8"
Manufacturer:
Von Duprin
Type:
Exit Devices
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 8:
Hex Key Dogging
Series:
99 Series
Uid:
VON1009947L06326DRHR
Url Title:
9947l-06-3-26d-rhr
Title:
9947L-06 3 26D RHR Von Duprin Concealed Vertical Rod Exit Devices
Sub Type:
Concealed Vertical Rod Exit Devices
Series:
9947 Series Concealed Vertical Rod Exit Device
Last Modified:
2023-02-26T05:57:29+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
3707
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
23
Pack Length:
37
Pack Width:
5
Pack Height:
10.5
Pack Volume:
1942.5
Ul Listing:
UL 305
Ansi Code:
A156.3
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
3 Years
Accessible:
No
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
3
Vendor:
Allegion
Assembly Item:
1

Warranty Information

3 Year Warranty
