  • Yale AUR8802FL 626 Grade 1 Privacy with Deadbolt Mortise Lock Augusta Lever CO Rose Satin Chromium Plated Finish

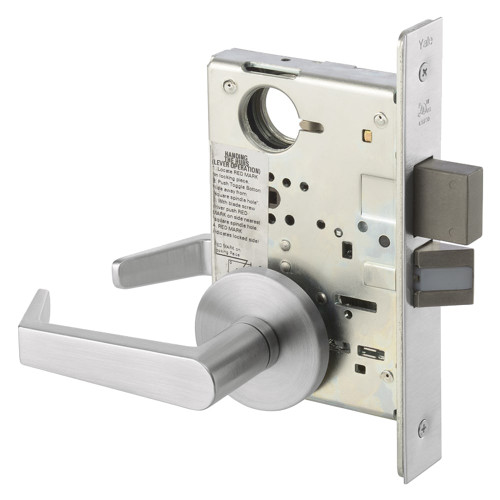

Yale AUR8802FL 626 Grade 1 Privacy with Deadbolt Mortise Lock Augusta Lever CO Rose Satin Chromium Plated Finish

Yale

Write a Review
SKU:
AUR8802FL 626
$561.66
Yale AUR8802FL 626 Grade 1 Privacy with Deadbolt Mortise Lock Augusta Lever CO Rose Satin Chromium Plated Finish
$561.66

Descriptions

Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.
TypeTitleURL
brochure/sales-materialYale Commercial Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/yale/literature/YALE_finish-chart.pdf
catalogYale 8800 Series Mortise Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/yale/catalogs/YALE_catalog_8800-series.pdf
Yale Competitor Indicator Kits Cataloghttps://dvwi9lnoau63q.cloudfront.net/yale/catalogs/YALE_catalog_competitor-indicator-kits.pdf
Yale Reflections Cataloghttps://dvwi9lnoau63q.cloudfront.net/yale/catalogs/Yalereflectionsaadss1015151.pdf
installation-instructions8800 Series Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstrctions/8800_Handing_Instructions.pdf
8800 Series Mortise Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructions/80-9086-0026-0108800Mortise.pdf
8800-ITS Mortise Lockset Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/yale/installationinstructons/80-9086-0054-010-8800ITSOption.pdf
literature8800 Series Mortise Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/yale/literature/122.1_ASSA_ABLOY_EPD_Yale_8800_Mortise_Lock.pdf
parts-manual8800 Series Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/yale/partsmanuals/YALE_partsmanual_8800-series.pdf
price-books2023 Yale Commercial Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/yale/pricebooks/YAL_pricebook_comm_4-2023.pdf
2024 Yale Commercial Price Book (effective 3.1.2024)https://dvwi9lnoau63q.cloudfront.net/yale/pricebooks/YALE_pricebook_commercial_2024.pdf
sell-sheet8800 Series Upgrade Solutions Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/yale/literature/YALE_sellsheet_8800-series-retrofit-indicators.pdf
Yale 8800 Series Mortise Lock with Status Indicators Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/yale/literature/YALE_sellsheet_8800-series-indicators.pdf

Specifications

Brand:
Yale
Fire Rated:
3 Hours {A}
Series:
Yale 8800 Series Mortise Locks
Specifications Bullet 10:
6-5/8" X 4-1/2" Pocket Dimension
Manufacturer:
Yale
Includes Cylinder(s)?:
No
Specifications Bullet 1:
Grade 1 Privacy Function Mortise Lockset
Parent Manufacturer:
Assa Abloy
Product Warranty:
10 Year Warranty
Certification:
ANSI/BHMA Certified Grade 1, UL Listed
Cylinder Type:
Keyless
Specifications Bullet 8:
3/4" Spring Latch
Electronic:
No
Projection (in):
2-1/4"
Interior/Exterior:
Interior/Exterior
Backset (in):
2-3/4"
Finish:
626/US26D
Base Material:
Brass or Bronze
Minimum Door Thickness (in):
1-3/4"
Selling Quantity:
1
Door Handing:
Non-handed
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Finish Description:
Satin Chromium Plated
Specifications Bullet 4:
2-3/4" Backset
Can Be Keyed:
No
Keyway:
Not Applicable
Grade:
Grade 1
Specifications Bullet 11:
For Doors 1-3/4" Thick
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 3:
R Rose
Specifications Bullet 6:
2-1/4" Projection
Commercial Residential:
Commercial
Strike Number:
2815
Door Range (Thickness):
1-3/4" - 1-3/4"
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 7:
2-9/16" Rose Dimension
Function:
Privacy
Specifications Bullet 2:
Augusta Lever
ADA:
Yes
Deadbolt Throw (in):
Not Applicable
Rose/Escutcheon Design:
R
Lever/Knob/Pull Design:
Augusta
Armor Front Dimensions:
1-1/4" x 8"
Specifications Bullet 13:
10 Year Warranty
Latch Throw (in):
3/4"
Latch Description:
Spring Latch
Rose/Escutcheon Dimensions (in):
2-9/16"
Lever/Knob/Pull:
Lever
Rose/Escutcheon:
Rose
Specifications Bullet 12:
ANSI/BHMA Certified Grade 1, UL Listed
Pocket Dimensions:
6-5/8" X 4-1/2"
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Strike Description:
ASA Strike
Uid:
YALAUR8802FL626
Url Title:
yalaur8802fl-626
Title:
AUR8802FL 626 Yale Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-13T09:49:02+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
800
Avg Lead Time:
32
Popularity:
3
Pack Weight:
3
Pack Length:
9
Pack Width:
6.75
Pack Height:
4.75
Limited Warranty:
10 Years
Unit Of Measure:
Each
Vendor:
Assa Abloy
Assembly Item:
1

Warranty Information

10 Year Warranty
