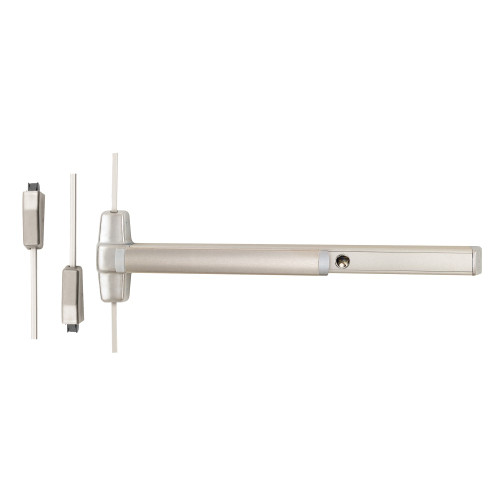

Von Duprin CD9827EO 3 32D Grade 1 Surface Vertical Rod Exit Bar Wide Stile Pushpad 36 Panic Device 84 Door Height Exit Only Less trim Cylinder Dogging Satin Stainless Steel Finish Field Reversible

Von Duprin

Write a Review
SKU:
CD9827EO 3 32D
$2,252.55
Von Duprin CD9827EO 3 32D Grade 1 Surface Vertical Rod Exit Bar Wide Stile Pushpad 36 Panic Device 84 Door Height Exit Only Less trim Cylinder Dogging Satin Stainless Steel Finish Field Reversible
$2,252.55

Descriptions

9827/9927 Surface mounted vertical rod device for all types of single or double doors, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. The 9827 device has a smooth mechanism case and the 9927 device has a grooved case.
TypeTitleURL
brochure/sales-materialVon Duprin Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/vonduprin/miscellaneous/ALLEGION_finish-chart.pdf
catalogVon Duprin 98/99 Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/vonduprin/catalogs/Von_Duprin_98.99_Series_Catalog_106590.pdf
data-sheetChexit (CX) Data Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/Von_Duprin_Chexit_Data_Sheet_110102.pdf
QEL Data Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/106586.pdf
installation-instructions98/9927 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/107602.pdf
HH98/9927 & HH98/9927-F Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109256.pdf
QEL 98/99 Baseplate Conversion Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/110746.pdf
QEL Conversion Kit for 98/99 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/110745.pdf
Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/107710.pdf
Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109265.pdf
Von Duprin LD Cover Plate for 33/35 & 98/99 Exit Devices Installation Instructionhttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109279.pdf
Von Duprin Pneumatic Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/107614.pdf
Von Duprin WS9827/WS9927 & WS9827-F/WS9927-F Windstorm Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/107733.pdf
miscellaneousQuiet Electric Latch FAQhttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/110624.pdf
price-book2024 Von Duprin Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/vonduprin/pricebooks/VON_pricebook_3-2024.pdf
sell-sheetQEL Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/103226.pdf
Von Duprin Exit Alarm Kit Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/vonduprin/literature/105255.pdf
service-manual98/9927 Surface Vertical Rod Exit Device Service Manualhttps://dvwi9lnoau63q.cloudfront.net/vonduprin/common-part-manuals/98-9927_Surface_Vertical_Rod_Exit_Device_Service_Manual.pdf
template9827/9927 & 9827-F/9927-F NL, TP, K, & L Series Wood Door Templatehttps://dvwi9lnoau63q.cloudfront.net/vonduprin/wood-templates/108763.pdf
9927 Latch & Strike Templateshttps://dvwi9lnoau63q.cloudfront.net/vonduprin/installation-instructions/109250.pdf
CX9827/9927 & 9827-F/9927-F NL, TP, K, & L Wood Door Templatehttps://dvwi9lnoau63q.cloudfront.net/vonduprin/wood-templates/108769.pdf
EL, SS 9827/9927 Series Device Hinge Stile Preparation Wood Door Templatehttps://dvwi9lnoau63q.cloudfront.net/vonduprin/wood-templates/108935.pdf
video10 Things You Need to Know About the Von Duprin Chexithttps://youtu.be/JAhF99eIAMg
Introduction to Von Duprin Exit Deviceshttps://youtu.be/t-9QD-Oh3Qc

Specifications

Brand:
Von Duprin
Specifications Bullet 14:
Includes Machine Screws
Dogging Type:
Cylinder Dogging
Certification:
ANSI A156.3-2014, Grade 1
Projection (in):
3-13/16"
Commercial Residential:
Commercial
Specifications Bullet 16:
3 Year Warranty
Specifications Bullet 8:
For Doors 1-3/4" - 2-1/8" Thick
Specifications Bullet 9:
For Metal/Wood Doors
Latch Description:
Top - Bottom Latchbolts
UOM:
1
Function:
Exit Only
Door Height (in):
84"
Door Width Minimum (in):
28"
Latch Throw (in):
5/8"
Door Material:
Metal/Wood
Option 1:
(CD) Cylinder Dogging
Finish Description:
Satin Stainless Steel
Grade:
Grade 1
Door Handing:
Non-handed
Fire Rated:
No
Specifications Bullet 6:
8" x 2-3/4" x 2-3/8" Center Case Dimension
Electronic:
No
Minimum Door Thickness (in):
1-3/4"
Keyway:
Not Applicable
Specifications Bullet 3:
Less Cylinder
Specifications Bullet 7:
For Doors 28" - 36" Wide
Specifications Bullet 4:
3-3/4" Minimum Stile
Maximum Door Thickness (in):
2-1/8"
Specifications Bullet 5:
2-3/4" Backset
End Cap Material:
Cast Zinc
Cylinder Type:
Less Cylinder
Specifications Bullet 1:
Surface Vertical Rod Exit Device, Exit Only
Specifications Bullet 10:
3-13/16" Full Extension
Product Warranty:
3 Year Warranty
Includes Cylinder(s)?:
No
Specifications Bullet 12:
Cylinder Dogging
Specifications Bullet 15:
ANSI A156.3-2014, Grade 1
Specifications Bullet 11:
5/8" Top - Bottom Latchbolts
Manufacturer:
Von Duprin
Specifications Bullet 2:
(CD) Cylinder Dogging
Dogging Option:
Yes
Finish:
630/US32D
Parent Manufacturer:
Allegion
Selling Quantity:
1
Product Width (in):
36"
Strike Number:
299/258L4/304L
Strike Description:
Roller Strike
Type:
Exit Devices
Specifications Bullet 13:
Cast Zinc End Cap
Screw Pack:
Machine Screws
Center Case Dimensions:
8" x 2-3/4" x 2-3/8"
Series:
98 Series
Door Width Maximum (in):
36"
Door Range (Thickness):
1-3/4" - 2-1/8"
Backset (in):
2-3/4"
Base Material:
Stainless Steel
Country of Origin:
United States
Minimum Stile (in):
3-3/4"
Uid:
VON100CD9827EO332D
Url Title:
cd9827eo-3-32d
Title:
CD9827EO 3 32D Von Duprin Surface Vertical Rod Exit Device
Sub Type:
Surface Vertical Rod Exit Devices
Series:
9827 Series Surface Vertical Rod Exit Device
Last Modified:
2023-02-26T06:30:29+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
3103
Avg Lead Time:
33
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
18
Pack Length:
37
Pack Width:
5
Pack Height:
10.5
Pack Volume:
1942.5
Ul Listing:
UL 305
Ansi Code:
A156.3 2014, Grade 1
Restrictions:
None
Country Of Origin:
USA
Baa Qualified:
Yes
Limited Warranty:
3 Years
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
3
Vendor:
Allegion
Assembly Item:
1

Warranty Information

3 Year Warranty
