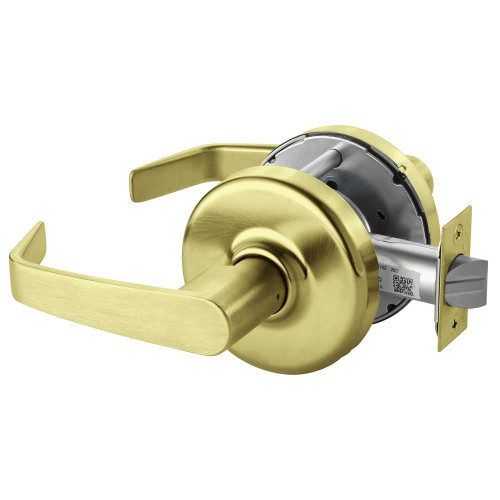

Corbin Russwin CL3310 NZD 612 Grade 1 Passage/Closet Cylindrical Lock Newport Lever Non-Keyed Satin Bronze Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3310 NZD 612
$408.97
Corbin Russwin CL3310 NZD 612 Grade 1 Passage/Closet Cylindrical Lock Newport Lever Non-Keyed Satin Bronze Finish Non-handed
$408.97

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Box Depth (in):
10"
Latch Description:
Spring Latch
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Cylinder Type:
Keyless
Door Range (Thickness):
1-3/4" - 2"
Electronic:
No
Lever/Knob/Pull:
Lever
Manufacturer:
Corbin Russwin
Minimum Door Thickness (in):
1-3/4"
Parent Manufacturer:
Assa Abloy
Fire Rated:
3 Hours {A}
Can Be Keyed:
No
Commercial Residential:
Commercial
Backset (in):
2-3/4"
ADA:
Yes
Country Of Origin:
United States
Bore Hole Diameter (in):
2-1/8"
Strike Description:
ASA Strike
Latch Bore Diameter (in):
1"
Latch Number:
586F16
Box Weight (lbs):
4.8 lbs
Grade:
Grade 1
Latch Dimensions:
1-1/8" x 2-1/4"
Includes Cylinder(s)?:
No
Finish Description:
Satin Bronze
Specifications Bullet 9:
2-1/8" Bore Hole Diameter
Box Height (in):
4-1/2"
Specifications Bullet 1:
Grade 1 Passage Function Cylindrical Lockset
Box Width (in):
7-1/2"
Finish:
612/US10
Rose/Escutcheon Dimensions (in):
3-1/2"
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Function:
Passage
Specifications Bullet 3:
2-3/4" Backset
Maximum Door Thickness (in):
2"
Latch Throw (in):
1/2"
Lever/Knob/Pull Design:
Newport
Product Warranty:
7 Year Limited Warranty
Specifications Bullet 4:
1-1/8" x 2-1/4" Spring Latch
Specifications Bullet 7:
3-1/2" D Rose
Door Handing:
Non-handed
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Rose/Escutcheon Design:
D
Specifications Bullet 11:
7 Year Limited Warranty
Base Material:
Bronze
Specifications Bullet 8:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 2:
Newport Lever
Specifications Bullet 6:
2-13/16" Projection
Specifications Bullet 10:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Rose/Escutcheon:
Rose
Strike Dimensions:
1-1/4" x 4-7/8"
Projection (in):
2-13/16"
UOM:
1
Strike Number:
217L13
Keyway:
Not Applicable
Uid:
COR300CL3310NZD612
Url Title:
cl3310-nzd-612
Title:
Corbin Russwin CL3310 NZD 612 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-13T10:23:47+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
606
Avg Lead Time:
10
Finish Family:
Matte Bronze
Popularity:
9
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F75
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
