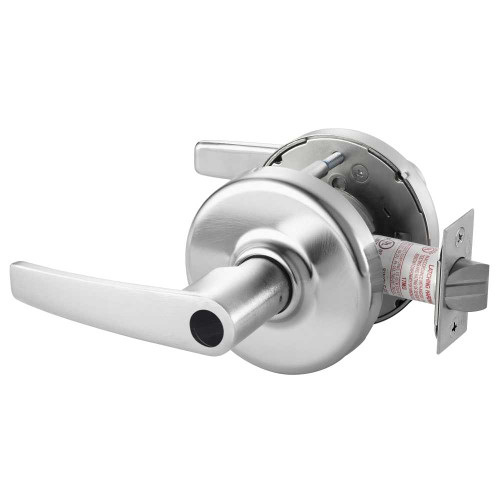

  • Corbin Russwin CL3357 AZD 626 Grade 1 Storeroom/Closet Cylindrical Lock Armstrong Lever Conventional Cylinder Satin Chrome Finish Non-handed

Corbin Russwin CL3357 AZD 626 Grade 1 Storeroom/Closet Cylindrical Lock Armstrong Lever Conventional Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3357 AZD 626
$556.88
Corbin Russwin CL3357 AZD 626 Grade 1 Storeroom/Closet Cylindrical Lock Armstrong Lever Conventional Cylinder Satin Chrome Finish Non-handed
UPC:
840067630877
$556.88

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Finish:
626/US26D
Box Width (in):
7-1/2"
Specifications Bullet 3:
Conventional L4 Keyway
Bore Hole Diameter (in):
2-1/8"
Latch Throw (in):
1/2"
Commercial Residential:
Commercial
Cylinder Type:
Conventional
Specifications Bullet 2:
Armstrong Lever
Backset (in):
2-3/4"
Specifications Bullet 12:
7 Year Limited Warranty
Keyway:
L4 Keyway
Latch Number:
586F17
Door Handing:
Non-handed
Grade:
Grade 1
Door Range (Thickness):
1-3/4" - 2"
Country Of Origin:
United States
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Rose/Escutcheon:
Rose
Includes Cylinder(s)?:
Yes
Lever/Knob/Pull Design:
Armstrong
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Base Material:
Brass, Bronze
Minimum Door Thickness (in):
1-3/4"
Rose/Escutcheon Dimensions (in):
3-1/2"
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Finish Description:
Satin Chrome
Electronic:
No
Function:
Storeroom
Can Be Keyed:
Yes
Strike Description:
ASA Strike
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Latch Description:
Dead Latch
Latch Bore Diameter (in):
1"
Box Weight (lbs):
4.8 lbs
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 4:
2-3/4" Backset
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 1:
Grade 1 Storeroom Function Cylindrical Lockset
ADA:
Yes
Box Height (in):
4-1/2"
Box Depth (in):
10"
Specifications Bullet 7:
2-13/16" Projection
Parent Manufacturer:
Assa Abloy
Maximum Door Thickness (in):
2"
Fire Rated:
3 Hours {A}
Product Warranty:
7 Year Limited Warranty
Lever/Knob/Pull:
Lever
Rose/Escutcheon Design:
D
UOM:
1
Projection (in):
2-13/16"
Selling Quantity:
1
Strike Number:
217L13
Strike Dimensions:
1-1/4" x 4-7/8"
UPC:
840067630877
Manufacturer:
Corbin Russwin
Specifications Bullet 8:
3-1/2" D Rose

Warranty Information

7 Year Limited Warranty
