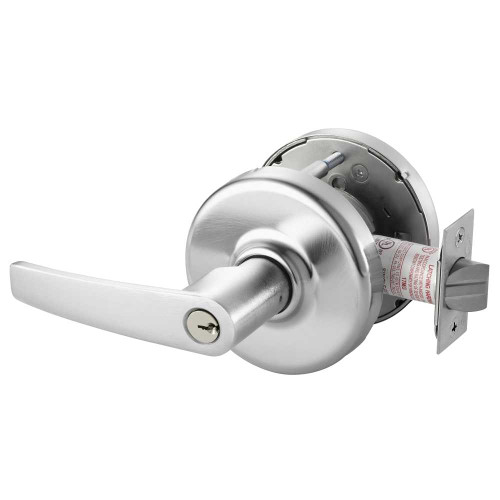

Corbin Russwin CL3391 NZD 626 Grade 1 Keyed Lever x Turnpiece Cylindrical Lock Newport Lever Conventional Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3391 NZD 626
$556.88
Corbin Russwin CL3391 NZD 626 Grade 1 Keyed Lever x Turnpiece Cylindrical Lock Newport Lever Conventional Cylinder Satin Chrome Finish Non-handed
$556.88

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Box Height (in):
4-1/2"
Lever/Knob/Pull Design:
Newport
Specifications Bullet 1:
Grade 1 Entrance Function Cylindrical Lockset
Box Depth (in):
10"
Specifications Bullet 11:
2-1/8" Bore Hole Diameter
Parent Manufacturer:
Assa Abloy
Door Range (Thickness):
1-3/4" - 2"
Country Of Origin:
United States
Cylinder Type:
Conventional
Includes Cylinder(s)?:
Yes
Commercial Residential:
Commercial
Product Warranty:
7 Year Limited Warranty
Specifications Bullet 2:
Newport Lever
Finish:
626/US26D
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Finish Description:
Satin Chrome
Lever/Knob/Pull:
Lever
Latch Dimensions:
1-1/8" x 2-1/4"
Box Weight (lbs):
4.8 lbs
Door Handing:
Non-handed
Rose/Escutcheon:
Rose
Can Be Keyed:
Yes
Electronic:
No
Keyway:
L4 Keyway
Box Width (in):
7-1/2"
Projection (in):
2-13/16"
Latch Number:
586F17
Specifications Bullet 12:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Fire Rated:
3 Hours {A}
Bore Hole Diameter (in):
2-1/8"
Latch Description:
Dead Latch
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Option 1:
Interior Turnpiece
Specifications Bullet 3:
Conventional L4 Keyway
Specifications Bullet 7:
1-1/4" x 4-7/8" ASA Strike
Manufacturer:
Corbin Russwin
Specifications Bullet 4:
Interior Turnpiece
Maximum Door Thickness (in):
2"
Specifications Bullet 8:
2-13/16" Projection
Rose/Escutcheon Dimensions (in):
3-1/2"
Latch Bore Diameter (in):
1"
Specifications Bullet 13:
7 Year Limited Warranty
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 10:
For Doors 1-3/4" - 2" Thick
Strike Description:
ASA Strike
Grade:
Grade 1
Selling Quantity:
1
Specifications Bullet 6:
1-1/8" x 2-1/4" Dead Latch
Rose/Escutcheon Design:
D
Minimum Door Thickness (in):
1-3/4"
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Specifications Bullet 9:
3-1/2" D Rose
Function:
Entrance
Latch Throw (in):
1/2"
Strike Number:
217L13
ADA:
Yes
Base Material:
Brass Bronze
Backset (in):
2-3/4"
Uid:
COR300CL3391NZD626
Url Title:
cl3391-nzd-626
Title:
Corbin Russwin CL3391 NZD 626 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-13T10:56:42+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
823
Avg Lead Time:
30
Finish Family:
Matte Silver
Popularity:
5
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Base Material:
Brass, Bronze
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
