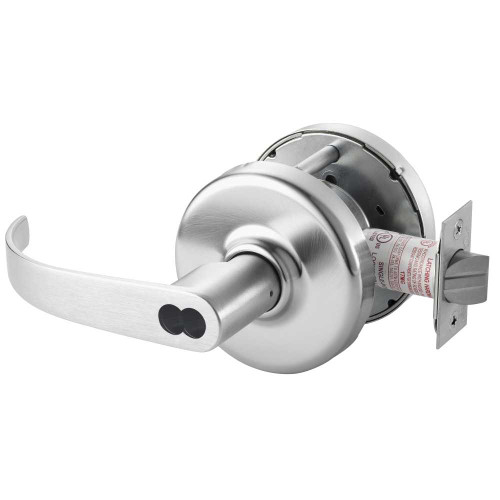

Corbin Russwin CL3391 PZD 626 CL6 Grade 1 Keyed Lever x Turnpiece Cylindrical Lock Princeton Lever LFIC 6-Pin Less Core Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3391 PZD 626 CL6
$556.88
Corbin Russwin CL3391 PZD 626 CL6 Grade 1 Keyed Lever x Turnpiece Cylindrical Lock Princeton Lever LFIC 6-Pin Less Core Satin Chrome Finish Non-handed
$556.88

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Parent Manufacturer:
Assa Abloy
Manufacturer:
Corbin Russwin
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Backset (in):
2-3/4"
ADA:
Yes
Base Material:
Brass, Bronze
Box Weight (lbs):
4.8 lbs
Bore Hole Diameter (in):
2-1/8"
Box Depth (in):
10"
Box Height (in):
4-1/2"
Country Of Origin:
United States
Can Be Keyed:
Yes
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Commercial Residential:
Commercial
Box Width (in):
7-1/2"
Cylinder Type:
LFIC Housing
Door Range (Thickness):
1-3/4" - 2"
Finish:
626/US26D
Electronic:
No
Door Handing:
Non-handed
Finish Description:
Satin Chrome
Includes Cylinder(s)?:
No
Function:
Entrance
Fire Rated:
3 Hours {A}
Grade:
Grade 1
Latch Number:
586F17
Latch Dimensions:
1-1/8" x 2-1/4"
Keyway:
Less Core
Latch Description:
Dead Latch
Latch Bore Diameter (in):
1"
Latch Throw (in):
1/2"
Lever/Knob/Pull Design:
Princeton
Specifications Bullet 2:
Princeton Lever
Specifications Bullet 1:
Grade 1 Entrance Function Cylindrical Lockset
Lever/Knob/Pull:
Lever
Specifications Bullet 4:
Interior Turnpiece
Specifications Bullet 3:
LFIC Housing Less Core
Specifications Bullet 7:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 6:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 8:
2-13/16" Projection
Specifications Bullet 9:
3-1/2" D Rose
Specifications Bullet 10:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 11:
2-1/8" Bore Hole Diameter
Specifications Bullet 12:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Maximum Door Thickness (in):
2"
Option 1:
Interior Turnpiece
Minimum Door Thickness (in):
1-3/4"
Product Warranty:
7 Year Limited Warranty
Specifications Bullet 13:
7 Year Limited Warranty
Rose/Escutcheon Design:
D
Projection (in):
2-13/16"
Rose/Escutcheon:
Rose
Rose/Escutcheon Dimensions (in):
3-1/2"
Selling Quantity:
1
UOM:
1
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
217L13
Uid:
COR300CL3391PZD626CL6
Url Title:
cl3391-pzd-626-cl6
Title:
CL3391 PZD 626 CL6
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-13T10:56:45+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
823
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
