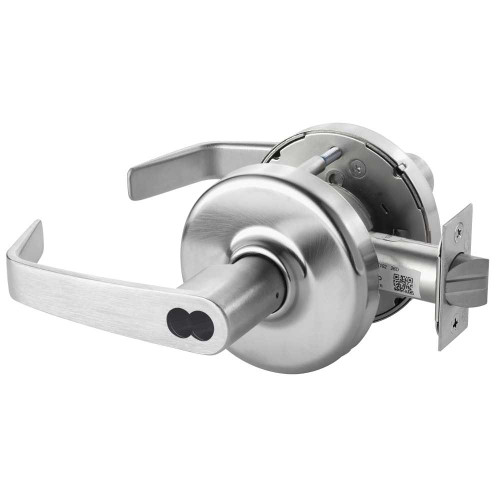

Corbin Russwin CL3393 NZD 626 CL7 Grade 1 Service Station Cylindrical Lock Newport Lever LFIC 7-Pin Less Core Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3393 NZD 626 CL7
$618.19
Corbin Russwin CL3393 NZD 626 CL7 Grade 1 Service Station Cylindrical Lock Newport Lever LFIC 7-Pin Less Core Satin Chrome Finish Non-handed
UPC:
840067631706
$618.19

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Backset (in):
2-3/4"
ADA:
Yes
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Manufacturer:
Corbin Russwin
Parent Manufacturer:
Assa Abloy
Box Depth (in):
10"
Box Weight (lbs):
4.8 lbs
Base Material:
Brass, Bronze
Box Height (in):
4-1/2"
Bore Hole Diameter (in):
2-1/8"
Box Width (in):
7-1/2"
Can Be Keyed:
Yes
Commercial Residential:
Commercial
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Country Of Origin:
United States
Door Handing:
Non-handed
Cylinder Type:
LFIC Housing
Finish:
626/US26D
Door Range (Thickness):
1-3/4" - 2"
Electronic:
No
Includes Cylinder(s)?:
No
Finish Description:
Satin Chrome
Fire Rated:
3 Hours {A}
Function:
Service Station
Grade:
Grade 1
Latch Bore Diameter (in):
1"
Latch Number:
586F18
Latch Dimensions:
1-1/8" x 2-1/4"
Latch Description:
Dead Latch
Keyway:
Less 7-Pin Core
Lever/Knob/Pull Design:
Newport
Specifications Bullet 1:
Grade 1 Service Station Function Cylindrical Lockset
Lever/Knob/Pull:
Lever
Specifications Bullet 2:
Newport Lever
Latch Throw (in):
1/2"
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 7:
2-13/16" Projection
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 3:
LFIC Housing Less 7-Pin Core
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 12:
7 Year Limited Warranty
Specifications Bullet 8:
3-1/2" D Rose
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Product Warranty:
7 Year Limited Warranty
Projection (in):
2-13/16"
Rose/Escutcheon:
Rose
Maximum Door Thickness (in):
2"
Minimum Door Thickness (in):
1-3/4"
Strike Description:
ASA Strike
Selling Quantity:
1
Rose/Escutcheon Dimensions (in):
3-1/2"
Rose/Escutcheon Design:
D
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
217L13
UPC:
840067631706
UOM:
1
Uid:
COR300CL3393NZD626CL7
Url Title:
cl3393-nzd-626-cl7
Title:
CL3393 NZD 626 CL7
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-13T10:56:51+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
914
Finish Family:
Matte Silver
Popularity:
7
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F92
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
