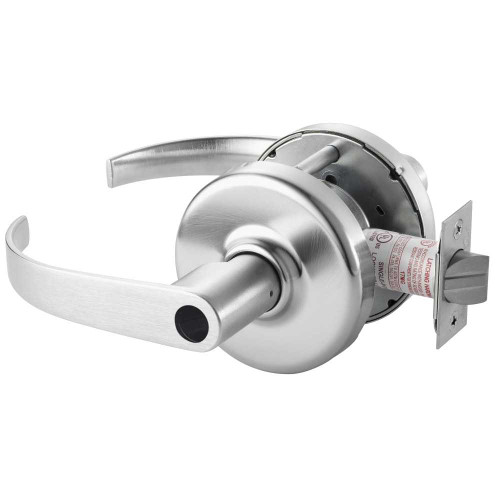

Corbin Russwin CL3393 NZD 626 LC Grade 1 Service Station Cylindrical Lock Newport Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3393 NZD 626 LC
$606.00
Corbin Russwin CL3393 NZD 626 LC Grade 1 Service Station Cylindrical Lock Newport Lever Conventional Less Cylinder Satin Chrome Finish Non-handed
UPC:
840067631713
$606.00

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Cylinder Type:
Conventional
Base Material:
Brass, Bronze
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Backset (in):
2-3/4"
Box Weight (lbs):
4.8 lbs
Specifications Bullet 4:
2-3/4" Backset
Function:
Service Station
Finish Description:
Satin Chrome
Includes Cylinder(s)?:
No
Door Range (Thickness):
1-3/4" - 2"
Latch Dimensions:
1-1/8" x 2-1/4"
Specifications Bullet 2:
Newport Lever
Manufacturer:
Corbin Russwin
Door Handing:
Non-handed
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Box Width (in):
7-1/2"
Specifications Bullet 1:
Grade 1 Service Station Function Cylindrical Lockset
Commercial Residential:
Commercial
Grade:
Grade 1
Latch Throw (in):
1/2"
ADA:
Yes
Country Of Origin:
United States
Latch Bore Diameter (in):
1"
Box Depth (in):
10"
Strike Number:
217L13
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Electronic:
No
Keyway:
Less Core
Finish:
626/US26D
Specifications Bullet 3:
Conventional Less Core
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Latch Description:
Dead Latch
Lever/Knob/Pull Design:
Newport
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
UOM:
1
Lever/Knob/Pull:
Lever
Box Height (in):
4-1/2"
Can Be Keyed:
Yes
Strike Description:
ASA Strike
Fire Rated:
3 Hours {A}
Latch Number:
586F18
Maximum Door Thickness (in):
2"
Parent Manufacturer:
Assa Abloy
Specifications Bullet 7:
2-13/16" Projection
Rose/Escutcheon Design:
D
Specifications Bullet 12:
7 Year Limited Warranty
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Product Warranty:
7 Year Limited Warranty
Strike Dimensions:
1-1/4" x 4-7/8"
Projection (in):
2-13/16"
Specifications Bullet 8:
3-1/2" D Rose
Minimum Door Thickness (in):
1-3/4"
Rose/Escutcheon:
Rose
UPC:
840067631713
Selling Quantity:
1
Rose/Escutcheon Dimensions (in):
3-1/2"
Uid:
COR300CL3393NZD626LC
Url Title:
cl3393-nzd-626-lc
Title:
Corbin Russwin CL3393 NZD 626 LC Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-13T10:56:51+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
810
Avg Lead Time:
23
Finish Family:
Matte Silver
Popularity:
8
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F92
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
