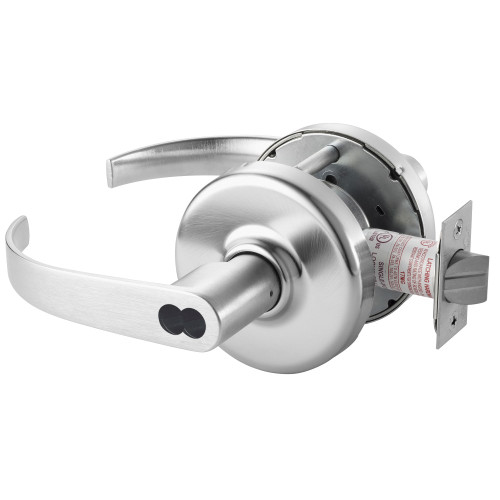

Corbin Russwin CL3393 PZD 626 CL7 Grade 1 Service Station Cylindrical Lock Princeton Lever LFIC 7-Pin Less Core Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3393 PZD 626 CL7
$618.19
Corbin Russwin CL3393 PZD 626 CL7 Grade 1 Service Station Cylindrical Lock Princeton Lever LFIC 7-Pin Less Core Satin Chrome Finish Non-handed
UPC:
840067631751
$618.19

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3300 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3300_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 and CL3600 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM123.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
CL3300 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM53307-12.pdf
literatureCL3300 Series Cylindrical Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/124.1_ASSA_ABLOY_mrEPD_Corbin_Russwin_CL3300_Series_Lock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf

Specifications

Brand:
Corbin Russwin
Backset (in):
2-3/4"
Parent Manufacturer:
Assa Abloy
ADA:
Yes
Manufacturer:
Corbin Russwin
Series:
CL3300 Series Grade 1 Cylindrical Lever Locks
Base Material:
Brass, Bronze
Box Height (in):
4-1/2"
Box Weight (lbs):
4.8 lbs
Box Depth (in):
10"
Bore Hole Diameter (in):
2-1/8"
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Box Width (in):
7-1/2"
Can Be Keyed:
Yes
Country Of Origin:
United States
Commercial Residential:
Commercial
Door Range (Thickness):
1-3/4" - 2"
Finish:
626/US26D
Cylinder Type:
LFIC Housing
Electronic:
No
Door Handing:
Non-handed
Function:
Service Station
Grade:
Grade 1
Includes Cylinder(s)?:
No
Fire Rated:
3 Hours {A}
Finish Description:
Satin Chrome
Latch Bore Diameter (in):
1"
Keyway:
Less 7-Pin Core
Latch Dimensions:
1-1/8" x 2-1/4"
Latch Number:
586F18
Latch Description:
Dead Latch
Specifications Bullet 2:
Princeton Lever
Latch Throw (in):
1/2"
Lever/Knob/Pull:
Lever
Lever/Knob/Pull Design:
Princeton
Specifications Bullet 1:
Grade 1 Service Station Function Cylindrical Lockset
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 7:
2-13/16" Projection
Specifications Bullet 3:
LFIC Housing Less 7-Pin Core
Specifications Bullet 8:
3-1/2" D Rose
Specifications Bullet 9:
For Doors 1-3/4" - 2" Thick
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 12:
7 Year Limited Warranty
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Minimum Door Thickness (in):
1-3/4"
Product Warranty:
7 Year Limited Warranty
Maximum Door Thickness (in):
2"
Rose/Escutcheon:
Rose
Projection (in):
2-13/16"
Rose/Escutcheon Design:
D
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Dimensions (in):
3-1/2"
Selling Quantity:
1
UOM:
1
Strike Number:
217L13
UPC:
840067631751
Uid:
COR300CL3393PZD626CL7
Url Title:
cl3393-pzd-626-cl7
Title:
CL3393 PZD 626 CL7
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-13T09:49:45+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
914
Finish Family:
Matte Silver
Popularity:
7
Pack Weight:
7
Pack Length:
10
Pack Width:
8
Pack Height:
4.5
Pack Volume:
360
Ul Listing:
ANSI A156.2, Series 4000, Grade 1, UL Listed
Ansi Code:
F92
Limited Warranty:
7 Year Warranty
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
ASSA ABLOY
Assembly Item:
1

Warranty Information

7 Year Limited Warranty
