  • Corbin Russwin CL3582 NZD 626 CL6 Grade 1 Store Door Cylindrical Lock Newport Lever LFIC Less Core Satin Chrome Finish Non-handed

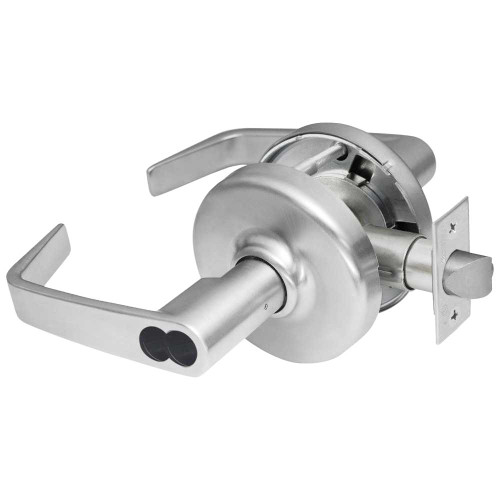

Corbin Russwin CL3582 NZD 626 CL6 Grade 1 Store Door Cylindrical Lock Newport Lever LFIC Less Core Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3582 NZD 626 CL6
$610.00
Corbin Russwin CL3582 NZD 626 CL6 Grade 1 Store Door Cylindrical Lock Newport Lever LFIC Less Core Satin Chrome Finish Non-handed
UPC:
840067632369
$610.00

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3500 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3500_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3500 Series Cylindrical Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/Corbin_Russwin_CL3500_Series_Key_In_Lever_Installation_Instructions.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf
sell-sheetCL3500 Series Cylindrical Lock Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/corbin/sell-sheets/Corbin_Russwin_CL3500_Series_Cylindrical_Lock_Sell_Sheet.pdf

Specifications

Brand:
Corbin Russwin
Lever/Knob/Pull Design:
Newport
Specifications Bullet 2:
Newport Lever
Specifications Bullet 3:
LFIC Housing Less Core
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Base Material:
Brass, Bronze
Includes Cylinder(s)?:
No
Grade:
Grade 1
Latch Bore Diameter (in):
1"
Latch Throw (in):
1/2"
Projection (in):
2-13/16"
Box Height (in):
4-1/2"
Rose/Escutcheon Dimensions (in):
3-1/2"
Specifications Bullet 7:
2-13/16" Projection
Maximum Door Thickness (in):
1-3/4"
Door Range (Thickness):
1-3/8" - 1-3/4"
Can Be Keyed:
Yes
Box Depth (in):
10"
Lever/Knob/Pull:
Lever
Latch Description:
Dead Latch
Box Weight (lbs):
4.1 lbs
Function:
Passage x Blank Plate
Latch Number:
600F10
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Door Handing:
Non-handed
Backset (in):
2-3/4"
Specifications Bullet 12:
7 Year Limited Warranty
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Specifications Bullet 8:
3-1/2" D Rose
Rose/Escutcheon:
Rose
Latch Dimensions:
1-1/8" x 2-1/4"
Keyway:
Less Core
Cylinder Type:
LFIC Housing
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Product Warranty:
7 Year Limited Warranty
Fire Rated:
3 Hours {A}
Commercial Residential:
Commercial
Electronic:
No
Strike Description:
ASA Strike
Manufacturer:
Corbin Russwin
Selling Quantity:
1
UOM:
1
UPC:
840067632369
Specifications Bullet 1:
Grade 1 Passage x Blank Plate Function Cylindrical Lockset
Box Width (in):
7-1/2"
Bore Hole Diameter (in):
2-1/8"
Strike Dimensions:
1-1/4" x 4-7/8"
Finish Description:
Satin Chrome
Finish:
626/US26D
Series:
CL3500 Series
Rose/Escutcheon Design:
D
Minimum Door Thickness (in):
1-3/8"
Country of Origin:
United States
Parent Manufacturer:
Assa Abloy
Specifications Bullet 4:
2-3/4" Backset
Strike Number:
217L13
ADA:
Yes

Warranty Information

7 Year Limited Warranty
