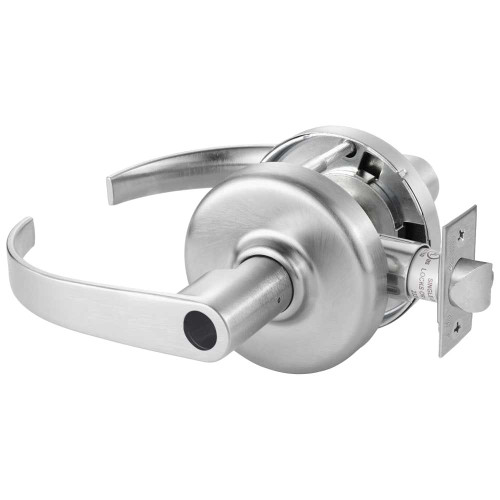

  • Corbin Russwin CL3582 PZD 626 LC Grade 1 Store Door Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Corbin Russwin CL3582 PZD 626 LC Grade 1 Store Door Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed

Corbin Russwin

Write a Review
SKU:
CL3582 PZD 626 LC
$499.36
Corbin Russwin CL3582 PZD 626 LC Grade 1 Store Door Cylindrical Lock Princeton Lever Conventional Less Cylinder Satin Chrome Finish Non-handed
UPC:
840067632413
$499.36

Descriptions

The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
TypeTitleURL
catalogCL3500 Series Cylindrical Lock Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_CL3500_Series_Cylindrical_Lock_Catalog.pdf
installation-instructionsCL3500 Series Cylindrical Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/Corbin_Russwin_CL3500_Series_Key_In_Lever_Installation_Instructions.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf
sell-sheetCL3500 Series Cylindrical Lock Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/corbin/sell-sheets/Corbin_Russwin_CL3500_Series_Cylindrical_Lock_Sell_Sheet.pdf

Specifications

Brand:
Corbin Russwin
Bore Hole Diameter (in):
2-1/8"
Electronic:
No
Latch Number:
600F10
Latch Bore Diameter (in):
1"
Door Handing:
Non-handed
Box Depth (in):
10"
Specifications Bullet 10:
2-1/8" Bore Hole Diameter
Specifications Bullet 9:
For Doors 1-3/8" - 1-3/4" Thick
Function:
Passage x Blank Plate
Maximum Door Thickness (in):
1-3/4"
Backset (in):
2-3/4"
Door Range (Thickness):
1-3/8" - 1-3/4"
Includes Cylinder(s)?:
No
Specifications Bullet 12:
7 Year Limited Warranty
Fire Rated:
3 Hours {A}
Minimum Door Thickness (in):
1-3/8"
Box Width (in):
7-1/2"
Finish Description:
Satin Chrome
ADA:
Yes
Latch Throw (in):
1/2"
Rose/Escutcheon:
Rose
Parent Manufacturer:
Assa Abloy
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Finish:
626/US26D
Specifications Bullet 4:
2-3/4" Backset
Rose/Escutcheon Dimensions (in):
3-1/2"
Latch Description:
Dead Latch
Country Of Origin:
United States
Keyway:
Less Core
Specifications Bullet 1:
Grade 1 Passage x Blank Plate Function Cylindrical Lockset
Cylinder Type:
Conventional
Certification:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Specifications Bullet 5:
1-1/8" x 2-1/4" Dead Latch
Specifications Bullet 8:
3-1/2" D Rose
Specifications Bullet 2:
Princeton Lever
Box Height (in):
4-1/2"
UPC:
840067632413
Can Be Keyed:
Yes
Lever/Knob/Pull Design:
Princeton
Lever/Knob/Pull:
Lever
Box Weight (lbs):
4.1 lbs
Commercial Residential:
Commercial
Rose/Escutcheon Design:
D
Specifications Bullet 7:
2-13/16" Projection
Strike Number:
217L13
Grade:
Grade 1
Specifications Bullet 11:
ANSI A156.2, Series 4000, Grade 1, A117.1, UL Listed
Product Warranty:
7 Year Limited Warranty
Latch Dimensions:
1-1/8" x 2-1/4"
Base Material:
Brass, Bronze
Specifications Bullet 3:
Conventional Less Core
UOM:
1
Series:
CL3500 Series
Manufacturer:
Corbin Russwin
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Selling Quantity:
1
Projection (in):
2-13/16"

Warranty Information

7 Year Limited Warranty
