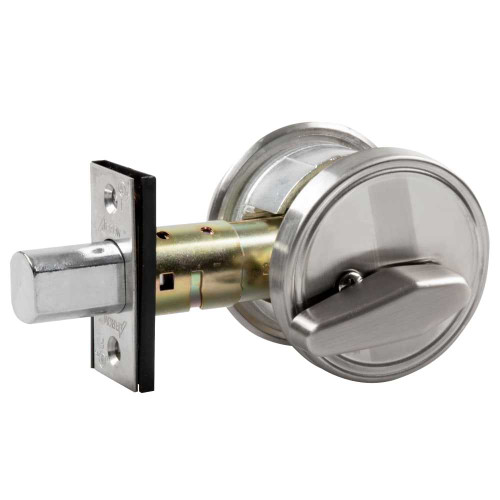

Arrow DBX61-630-AR Deadbolt Single Cylinder Arrow A Keyway KA4 Satin Stainless Steel

Arrow

Write a Review
SKU:
DBX61-630-AR
$30.87
Arrow DBX61-630-AR Deadbolt Single Cylinder Arrow A Keyway KA4 Satin Stainless Steel
$30.87

Descriptions

The DBX Series is a Grade 2 Commercial Deadbolt that features an adjustable backset in an attractive low profile package. It is ideal for commercial common areas and residential use.
TypeTitleURL
catalog2014 Arrow Full Line Cataloghttps://dvwi9lnoau63q.cloudfront.net/arrow/catalog/ARR_catalog_2014.pdf
price-book2023 Arrow Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/arrow/pricebooks/ARR_pricebook_4-2023.pdf
2024 Arrow Price Book (effective 3.1.2024)https://dvwi9lnoau63q.cloudfront.net/arrow/pricebooks/ARR_pricebook_3-2024.pdf

Specifications

Brand:
Arrow
Electronic:
No
Deadbolt Throw (in):
1"
Certification:
ANSI A156.36, Grade 2, UL Listed
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 6:
1" Deadbolt Throw
Can Be Keyed:
Yes
Grade:
Grade 2
Specifications Bullet 4:
1-1/8" x 2-3/4" Rectangle Strike
Minimum Door Thickness (in):
1-3/4"
Country of Origin:
Taiwan
Keyway:
A Keyway
Base Material:
Stainless Steel
Door Handing:
Non-handed
Latch Dimensions:
1" x 2-1/4"
Box Weight (lbs):
2.5 lbs
Product Warranty:
1 Year Warranty
Specifications Bullet 1:
Grade 2 Single Cylinder Deadbolt
Specifications Bullet 5:
For Doors 1-3/4" - 2" Thick
Includes Cylinder(s)?:
Yes
Maximum Door Thickness (in):
2"
Backset (in):
2-3/8 - 2-3/4"
Door Range (Thickness):
1-3/4" - 2"
Strike Description:
Rectangle Strike
Specifications Bullet 9:
ANSI A156.36, Grade 2, UL Listed
Commercial/Residential:
Commercial
Strike Dimensions:
1-1/8" x 2-3/4"
Finish Description:
Satin Stainless Steel
Option 1:
KA Set of 4
Latch Description:
Square Corner
Function:
Single Cylinder
Specifications Bullet 8:
2-1/8" Bore Hole Diameter
Latch Bore Diameter (in):
1"
Strike Number:
394
Box Height (in):
4"
Box Depth (in):
4"
UOM:
1
Specifications Bullet 3:
2-3/8 - 2-3/4" Backset
Parent Manufacturer:
Assa Abloy
Specifications Bullet 10:
1 Year Warranty
Manufacturer:
Arrow
Box Width (in):
3"
Series:
Arrow DBX Series Deadbolts
Specifications Bullet 7:
1" x 2-1/4" Latch Dimension
Cylinder Type:
Conventional
Specifications Bullet 2:
Conventional A Keyway
Latch Number:
157
Finish:
630/US32D
Uid:
ARR100DBX61630ARKA4
Url Title:
dbx61-630-arka4
Title:
DBX61-630-ARKA4 Arrow Lock Deadlock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Deadbolts
Last Modified:
2023-02-28T05:41:48+00:00
Last Pricing:
2023-01-12T00:00:00+00:00
Msrp:
54
Avg Lead Time:
141
Popularity:
8
Unit Of Measure:
Each

Warranty Information

1 Year Warranty
