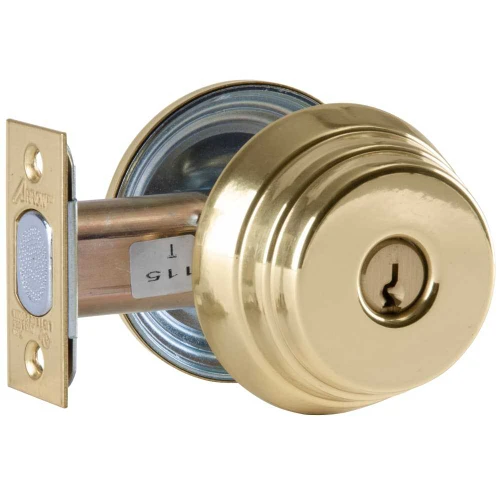

Arrow E61 3 CS Grade 2 Single Cylinder Deadlock Conventional Cylinder Bright Brass Finish Schlage C Keyway Field Reversible

Arrow

Write a Review
SKU:
E61 3 CS
$53.73
Arrow E61 3 CS Grade 2 Single Cylinder Deadlock Conventional Cylinder Bright Brass Finish Schlage C Keyway Field Reversible
UPC:
840067637722
$53.73

Descriptions

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
TypeTitleURL
catalog2014 Arrow Full Line Cataloghttps://dvwi9lnoau63q.cloudfront.net/arrow/catalog/ARR_catalog_2014.pdf
cut-sheetE Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/ESeries.pdf
Management Control Deadbolt Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/MgmtControl.pdf
Occupancy Indicator Deadbolt Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/OccIndicator.pdf
price-book2023 Arrow Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/arrow/pricebooks/ARR_pricebook_4-2023.pdf
2024 Arrow Price Book (effective 3.1.2024)https://dvwi9lnoau63q.cloudfront.net/arrow/pricebooks/ARR_pricebook_3-2024.pdf

Specifications

Brand:
Arrow
Latch Dimensions:
1-1/8" x 2-1/4"
Can Be Keyed:
Yes
Grade:
Grade 2
Commercial Residential:
Commercial
Country of Origin:
Mexico
Product Warranty:
1 Year Warranty
Box Weight (lbs):
1.5 lbs
Specifications Bullet 7:
1-1/8" x 2-1/4" Latch Dimension
Specifications Bullet 6:
1" Deadbolt Throw
Parent Manufacturer:
Assa Abloy
Latch Number:
141
Base Material:
Brass
Cylinder Type:
Conventional
Interior/Exterior:
Interior/Exterior
Deadbolt Throw (in):
1"
Minimum Door Thickness (in):
1-3/8"
Box Width (in):
4"
Includes Cylinder(s)?:
Yes
Box Depth (in):
4-1/2"
Keyway:
C Keyway
Electronic:
No
Door Handing:
Non-handed
Specifications Bullet 3:
2-3/8" Backset
Box Height (in):
3"
Specifications Bullet 4:
1-1/8" x 2-3/4" Rectangle Strike
Backset (in):
2-3/8"
Specifications Bullet 1:
Grade 2 Single Cylinder Deadbolt
Strike Description:
Rectangle Strike
Number of Keys:
2
Finish:
605/US3
Specifications Bullet 10:
1 Year Warranty
Specifications Bullet 5:
For Doors 1-3/8" - 1-3/4" Thick
Latch Bore Diameter (in):
1"
Latch Description:
Square Corner
UOM:
1
Bore Hole Diameter (in):
2-1/8"
Manufacturer:
Arrow
Specifications Bullet 8:
2-1/8" Bore Hole Diameter
Specifications Bullet 2:
Conventional C Keyway
Door Range (Thickness):
1-3/8" - 1-3/4"
Specifications Bullet 9:
ANSI A156.5, Grade 2, UL Listed
Selling Quantity:
1
Maximum Door Thickness (in):
1-3/4"
Number of Pins:
6
Certification:
ANSI A156.5, Grade 2, UL Listed
Strike Number:
346
UPC:
840067637722
Finish Description:
Bright Brass
Series:
Arrow E Series Deadbolts
Function:
Single Cylinder
Strike Dimensions:
1-1/8" x 2-3/4"
Uid:
ARR100E613CS
Url Title:
e61-3-cs
Title:
E61 3 CS
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Deadbolts
Last Modified:
2023-02-28T05:26:50+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
75
Avg Lead Time:
47
Finish Family:
Polished Brass
Popularity:
9
Pack Weight:
1.7
Pack Length:
4
Pack Width:
4
Pack Height:
3
Pack Volume:
48
Ansi Code:
A156.5
Limited Warranty:
1 Year
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
12
Vendor:
ASSA ABLOY

Warranty Information

1 Year Warranty
