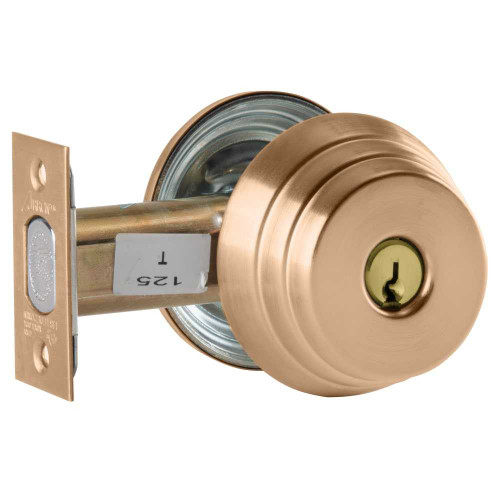

Arrow E62 10 Grade 2 Double Cylinder Deadlock Conventional Cylinder Satin Bronze Clear Coated Finish Field Reversible

Arrow

Write a Review
SKU:
E62 10
$0.00
Arrow E62 10 Grade 2 Double Cylinder Deadlock Conventional Cylinder Satin Bronze Clear Coated Finish Field Reversible
UPC:
840067637319
$0.00

Descriptions

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.
TypeTitleURL
catalog2014 Arrow Full Line Cataloghttps://dvwi9lnoau63q.cloudfront.net/arrow/catalog/ARR_catalog_2014.pdf
cut-sheetE Series Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/ESeries.pdf
Management Control Deadbolt Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/MgmtControl.pdf
Occupancy Indicator Deadbolt Cut Sheethttps://dvwi9lnoau63q.cloudfront.net/arrow/cut-sheet/OccIndicator.pdf
price-book2023 Arrow Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/arrow/pricebooks/ARR_pricebook_4-2023.pdf
2024 Arrow Price Book (effective 3.1.2024)https://dvwi9lnoau63q.cloudfront.net/arrow/pricebooks/ARR_pricebook_3-2024.pdf

Specifications

Brand:
Arrow
Backset (in):
2-3/8"
Door Handing:
Non-handed
Latch Bore Diameter (in):
1"
Bore Hole Diameter (in):
2-1/8"
Electronic:
No
Maximum Door Thickness (in):
1-3/4"
Cylinder Type:
Conventional
Grade:
Grade 2
Commercial Residential:
Commercial
Base Material:
Bronze
Can Be Keyed:
Yes
Includes Cylinder(s)?:
Yes
Specifications Bullet 7:
1-1/8" x 2-1/4" Latch Dimension
Specifications Bullet 10:
1 Year Warranty
Series:
Arrow E Series Deadbolts
Box Width (in):
4"
Latch Description:
Square Corner
Box Weight (lbs):
1.5 lbs
Certification:
ANSI A156.5, Grade 2, UL Listed
Specifications Bullet 5:
For Doors 1-3/8" - 1-3/4" Thick
Latch Number:
141
Finish Description:
Satin Bronze Clear Coated
Finish:
612/US10
Specifications Bullet 4:
1-1/8" x 2-3/4" Rectangle Strike
Keyway:
A Keyway
Country of Origin:
Mexico
Specifications Bullet 8:
2-1/8" Bore Hole Diameter
Interior/Exterior:
Interior/Exterior
Specifications Bullet 3:
2-3/8" Backset
Specifications Bullet 1:
Grade 2 Double Cylinder Deadbolt
Door Range (Thickness):
1-3/8" - 1-3/4"
Parent Manufacturer:
Assa Abloy
Function:
Double Cylinder
Minimum Door Thickness (in):
1-3/8"
Box Depth (in):
4-1/2"
Specifications Bullet 2:
Conventional A Keyway
UOM:
1
Strike Dimensions:
1-1/8" x 2-3/4"
Specifications Bullet 6:
1" Deadbolt Throw
Latch Dimensions:
1-1/8" x 2-1/4"
Deadbolt Throw (in):
1"
Specifications Bullet 9:
ANSI A156.5, Grade 2, UL Listed
Box Height (in):
3"
Product Warranty:
1 Year Warranty
Selling Quantity:
1
Number of Pins:
6
UPC:
840067637319
Manufacturer:
Arrow
Number of Keys:
2
Strike Description:
Rectangle Strike
Strike Number:
346
Uid:
ARR100E6210
Url Title:
e62-10
Title:
E62 10
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Deadbolts
Last Modified:
2023-02-28T05:26:50+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
103
Avg Lead Time:
24
Finish Family:
Matte Bronze
Popularity:
9
Pack Weight:
2
Pack Length:
4
Pack Width:
4
Pack Height:
3
Pack Volume:
48
Ansi Code:
A156.5
Limited Warranty:
1 Year
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
12
Vendor:
ASSA ABLOY

Warranty Information

1 Year Warranty
