Descriptions

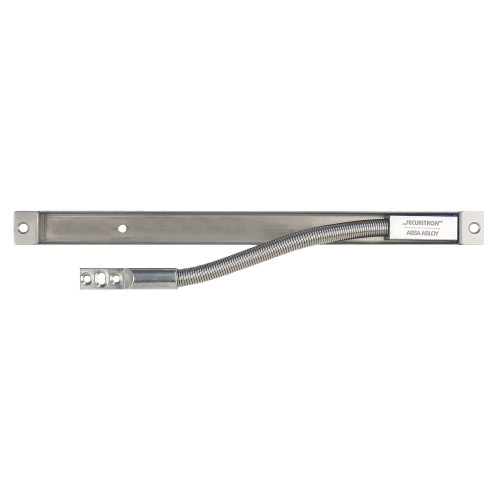

The heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door. The unit is discreetly concealed between the frame and door when the door is closed. Available in three multi-wire configurations and four finishes, the CEPT complements any architectural setting. Mortises into the edges of the door and frame. Direct retrofit for competitor products Tamper resistant. All metal construction including back boxes . 7/8" knockouts on back boxes accommodate EMF-type fittings. Tested to 1,000,000 cycles. Compatible with butt hinges up to 6" and continuous hinges with cutout. CEPT-10 includes 8-22 AWG wires plus 2-18 AWG wires for higher current devices. CEPT-C5E includes CAT5E compatible with 9 - 22 AWG wire stranded conductor, Molex connectors . EL-CEPT is ElectroLynx compatible with 12-22 AWG.
wires, ElectroLynx connectors
