Securitron EL-CEPT Power Transfer 12-Wire 22 AWG Wires Electrolynx Satin Stainless Steel

Securitron

Write a Review
SKU:
EL-CEPT
$361.97
Securitron EL-CEPT Power Transfer 12-Wire 22 AWG Wires Electrolynx Satin Stainless Steel
$361.97

Descriptions

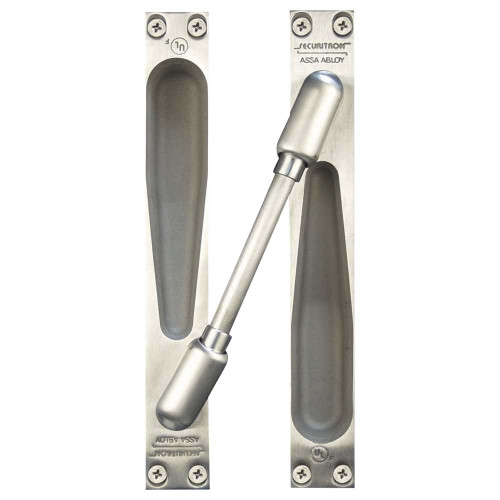

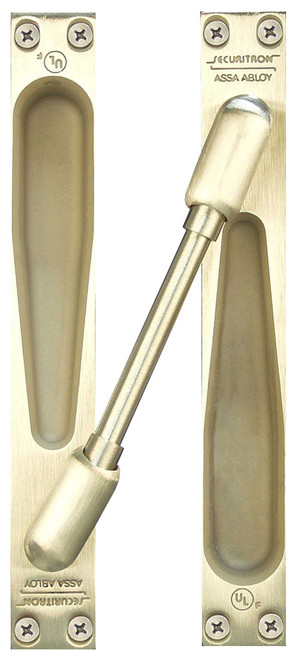

The heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door. The unit is discreetly concealed between the frame and door when the door is closed. Available in three multi-wire configurations and four finishes, the CEPT complements any architectural setting. Mortises into the edges of the door and frame. Direct retrofit for competitor products Tamper resistant. All metal construction including back boxes . 7/8" knockouts on back boxes accommodate EMF-type fittings. Tested to 1,000,000 cycles. Compatible with butt hinges up to 6" and continuous hinges with cutout. CEPT-10 includes 8-22 AWG wires plus 2-18 AWG wires for higher current devices. CEPT-C5E includes CAT5E compatible with 9 - 22 AWG wire stranded conductor, Molex connectors . EL-CEPT is ElectroLynx compatible with 12-22 AWG. wires, ElectroLynx connectors
TypeTitleURL
catalog2021 Securitron Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/securitron/catalog/ASSA_ABLOY_ESH_Catalog.pdf
installation-instructionsCEPT Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/CEPT_I_500-22115_20C.pdf
EPT-SC Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/EPT-SC_I_500-14220_20C.pdf
EPT, EPTL Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/EPT_EPTL_I_500-14250_G.pdf
EPTL-SC Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/EPTL-SC_I_500-14260_20C.pdf
ICPT Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/ICPT_I_500-24025_20A.pdf
SEPT Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/SEPT_I_500-SEPT_20D.pdf
price-book2023 Securitron Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/securitron/pricebooks/SEC_pricebook_4-2023.pdf

Specifications

Brand:
Securitron
Parent Manufacturer:
Assa Abloy
Specifications Bullet 1:
EPT Power Transfer
Finish Description:
Satin Stainless Steel
Country Of Origin:
USA
Base Material:
Stainless Steel
Certification:
UL Listed
Specifications Bullet 6:
UL Listed
Specifications Bullet 4:
1-1/4" x 9-1/16" Unit Dimension
Dimensions:
1-1/4" x 9-1/16"
Includes:
CAT-5E
Product Warranty:
Limited Warranty
Finish:
630/US32D
Specifications Bullet 5:
Includes Mounting Hardware
Specifications Bullet 3:
Concealed Mount
Manufacturer:
Securitron
Door Range (Thickness):
-
Specifications Bullet 2:
Includes CAT-5E
Specifications Bullet 7:
Limited Warranty
Type:
Hinges and Pivots
Series:
Securitron Power Transfers
Mount:
Concealed Mount
Screw Pack:
Mounting Hardware
Uid:
SEC100ELCEPT
Url Title:
el-cept
Title:
EL-CEPT Securitron Electrified Hinge
Sub Type:
Electrified Hinges
Last Modified:
2024-08-15T10:35:02+00:00
Last Pricing:
2024-05-17T00:00:00+00:00
Commercial Residential:
Commercial
Msrp:
513
Avg Lead Time:
20
Finish Family:
Matte Silver
Grade:
Grade 1
Popularity:
3
Pack Weight:
2.4
Ul Listing:
10C,ULC-S318
Ansi Code:
10C
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
Lifetime
Fire Rated:
3 Hours {A}
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

Limited Warranty
