Securitron CEPT-10 Power Transfer 10-Wire 2-18 AWG 8-22 AWG Wires Satin Stainless Steel

Securitron

Write a Review
SKU:
CEPT-10
$298.85
$298.85

Descriptions

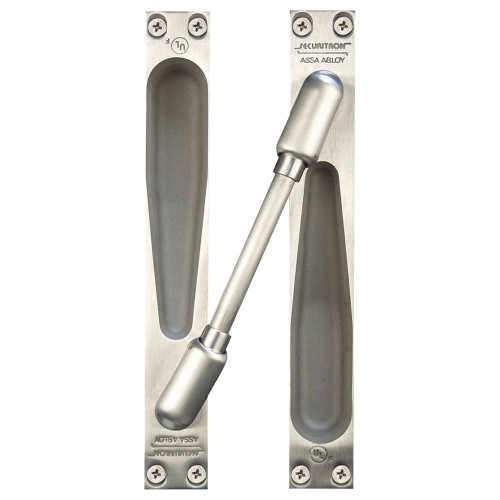

The heavy-duty, tamper-resistant Concealed Electrical Power Transfer (CEPT) securely transfers power and data from the hinge side of the frame to electrified hardware on the door. The unit is discreetly concealed between the frame and door when the door is closed. Available in three multi-wire configurations and four finishes, the CEPT complements any architectural setting. Direct retrofit for competitor products. All metal construction including back boxes. 7/8" knockouts on back boxes accommodate EMF-type fittings. Tested to 1,000,000 cycles. Compatible with butt hinges up to 6" and continuous hinges with cutout.
TypeTitleURL
catalog2021 Securitron Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/securitron/catalog/ASSA_ABLOY_ESH_Catalog.pdf
installation-instructionsCEPT Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/CEPT_I_500-22115_20C.pdf
EPT-SC Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/EPT-SC_I_500-14220_20C.pdf
EPT, EPTL Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/EPT_EPTL_I_500-14250_G.pdf
EPTL-SC Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/EPTL-SC_I_500-14260_20C.pdf
ICPT Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/ICPT_I_500-24025_20A.pdf
SEPT Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/securitron/installation-instructions/SEPT_I_500-SEPT_20D.pdf
price-book2023 Securitron Price Book (effective 4.17.2023)https://dvwi9lnoau63q.cloudfront.net/securitron/pricebooks/SEC_pricebook_4-2023.pdf

Specifications

Brand:
Securitron
Specifications Bullet 2:
Includes 10 Conductor, 24 Gauge
Includes:
10 Conductor, 24 Gauge
Specifications Bullet 4:
1-1/4" x 9-1/16" Unit Dimension
Dimensions:
1-1/4" x 9-1/16"
Specifications Bullet 7:
Limited Warranty
Finish:
630/US32D
Specifications Bullet 3:
Concealed Mount
Specifications Bullet 6:
UL Listed
Specifications Bullet 1:
EPT Power Transfer
Series:
Securitron Power Transfers
Finish Description:
Satin Stainless Steel
Specifications Bullet 5:
Includes Mounting Hardware
Base Material:
Stainless Steel
Certification:
UL Listed
Mount:
Concealed Mount
Product Warranty:
Limited Warranty
Manufacturer:
Securitron
Screw Pack:
Mounting Hardware
Parent Manufacturer:
Assa Abloy
Country Of Origin:
USA
Door Range (Thickness):
-
Type:
Hinges and Pivots
Uid:
SEC100CEPT10
Url Title:
cept-10
Title:
CEPT-10 Securitron Electrified Hinge
Sub Type:
Electrified Hinges
Last Modified:
2024-02-03T05:42:48+00:00
Last Pricing:
2023-04-14T00:00:00+00:00
Commercial Residential:
Commercial
Msrp:
428
Avg Lead Time:
19
Finish Family:
Matte Silver
Popularity:
3
Pack Weight:
2.4
Ul Listing:
UL 10C, ULC S318
Ansi Code:
ANSI 10C, A250.13
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
Lifetime
Fire Rated:
3 Hours {A}
Unit Of Measure:
Each
Vendor:
Assa Abloy

Warranty Information

Limited Warranty
