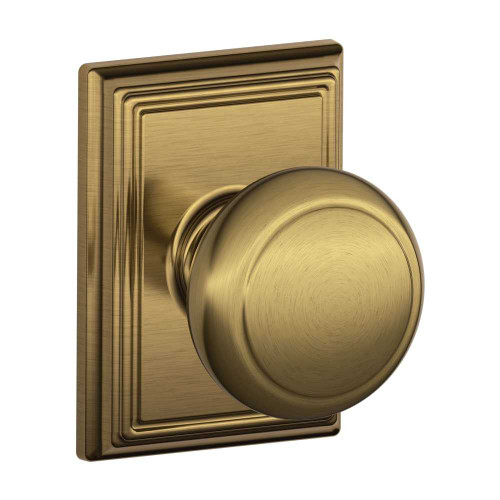

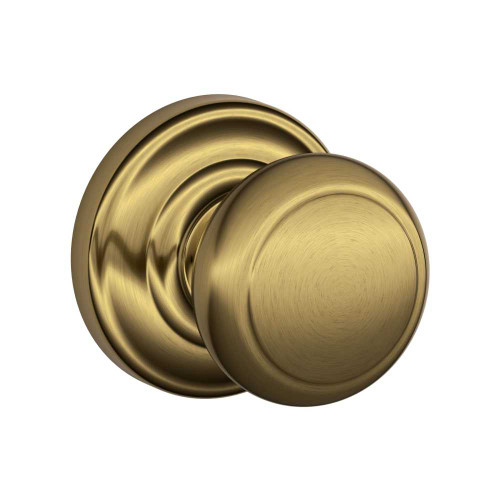

Schlage Residential F10 AND 609 Passage Latch Andover Knob Antique Brass

Schlage Residential

Write a Review
SKU:
F10 AND 609
$34.93
Schlage Residential F10 AND 609 Passage Latch Andover Knob Antique Brass
$34.93

Descriptions

Schlage believes that the "finishing touch" is just as important as the first, which is why they make distinctive door hardware designed to match your personal style. From classic looks that never go out of style to bold contemporary designs, Schlage's door knobs fit and accentuate virtually any decor.
TypeTitleURL
brochure/sales-materialSchlage Residential Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlageres/brochures/ALLEGION_finish-chart.pdf
installation-manualsBE365, FE575, FE595 - Keypad Locks Programming Guidehttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/237800341.pdf
F10/F40/F51 - F Series Knobs & Levers Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/P515-302.pdf
FA10/FA40/FA51 - FA Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/P515-445-sh2-c.pdf
FE575, FE595 - Keypad Entry Door Preparation Instructions For Door With Existing Holeshttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/1105.pdf
FE576 - Keypad Lock with Built-In Alarm and Auto-Lock Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/24046435.pdf
FE576, FE596 - Keypad Entry with Built-In Alarm User's Guidehttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/24046427.pdf
Schlage Control Smart Interconnected Door Prep No Holes - FE410Fhttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/Schlage-Control-Smart-Interconnect-door-prep-no-holes-FE410F.pdf
Schlage Control Smart Locks User Guidehttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/schlage-control-smart-locks-user-guide.pdf
Schlage Control Smart-Interconnected Door Prep Existing Holes - FE410Fhttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/Schlage-Control-Smart-Interconnect-door-prep-existing-holes-FE410F.pdf
Schlage Rekeying Manualhttps://dvwi9lnoau63q.cloudfront.net/schlageres/manuals_instructions/P513-325.pdf
price-book2024 Schlage Residential Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlageres/pricebook/SCR_pricebook_3-2024.pdf
videoInstalling Your FE575 Keypad Entry Lockhttps://youtu.be/r4pJwu7OF4M
Installing Your FE595 Keypad Entry Lockhttps://youtu.be/ZN5GF7dnP_M
Mechanical Key Override for FE575 and FE595https://youtu.be/9acf9yquZQw

Specifications

Brand:
Schlage Residential
Door Range (Thickness):
1-3/8" - 1-3/4"
Specifications Bullet 2:
Andover Lever
Specifications Bullet 11:
Limited Lifetime Warranty
Latch Number:
16-080
Latch Bore Diameter (in):
7/8"
Country Of Origin:
Mexico
Lever/Knob/Pull Design:
Andover
Includes Cylinder(s)?:
No
Finish Description:
Satin Brass Blackened Satin Relieved Clear Coated
Function:
Passage
Specifications Bullet 7:
2-5/8" Rose
Specifications Bullet 6:
2-5/16" Projection
Specifications Bullet 1:
Grade AAA Passage Function Cylindrical Lockset
Door Handing:
Non-handed
Latch Description:
Spring Latch
Specifications Bullet 3:
2-3/8 - 2-3/4" Backset
Specifications Bullet 8:
For Doors 1-3/8" - 1-3/4" Thick
UOM:
1
Minimum Door Thickness (in):
1-3/8"
Electronic:
No
Keyway:
Not Applicable
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 4:
1" x 2-1/4" Spring Latch
Finish:
609/US5
Rose/Escutcheon:
Rose
Specifications Bullet 9:
2-1/8" Bore Hole Diameter
Fire Rated:
Yes
Specifications Bullet 10:
ANSI A156.39-2015, Residential Grade AAA
Strike Dimensions:
1-5/8" x 2-1/4"
Lever/Knob/Pull:
Lever
Grade:
Grade 2
Certification:
ANSI A156.39-2015, Residential Grade AAA
Product Warranty:
Limited Lifetime Warranty
Manufacturer:
Schlage Residential
Rose/Escutcheon Dimensions (in):
2-5/8"
Projection (in):
2-5/16"
Bore Hole Diameter (in):
2-1/8"
Parent Manufacturer:
Allegion
Series:
F Series Residential Knobs
Latch Throw (in):
1/2"
Specifications Bullet 5:
1-5/8" x 2-1/4" Full Lip Strike
Rose/Escutcheon Design:
Not Applicable
ADA:
Yes
Strike Number:
10-027
Latch Dimensions:
1" x 2-1/4"
Backset (in):
2-3/8 - 2-3/4"
Can Be Keyed:
No
Cylinder Type:
Keyless
Commercial Residential:
Residential
Strike Description:
Full Lip Strike
Base Material:
Brass

Warranty Information

Limited Lifetime Warranty
