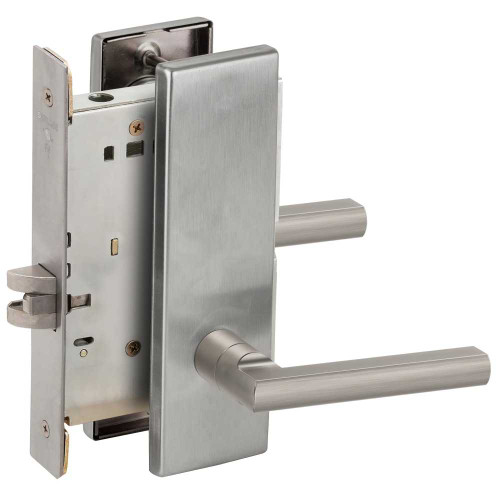

Schlage L9010 17N 626 Grade 1 Passage Latch Mortise Lock 17 Lever N Escutcheon Satin Chrome Finish Field Reversible

Schlage

Write a Review
SKU:
L9010 17N 626
$670.76
UPC:
840067640456
$670.76

Descriptions

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Finish:
626/US26D
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Door Range (Thickness):
1-3/4" - 1-3/4"
Cylinder Type:
Keyless
Specifications Bullet 4:
2-3/4" Backset
Selling Quantity:
1
Keyway:
Not Applicable
Specifications Bullet 11:
For Doors 1-3/4" Thick
Country Of Origin:
Mexico
ADA:
Yes
Armor Front Dimensions:
1-1/4" x 8"
Electronic:
No
Specifications Bullet 3:
N Escutcheon
Specifications Bullet 2:
17 Lever
Fire Rated:
3 Hours {A}
Specifications Bullet 7:
2-1/2" x 7-7/8" Escutcheon Dimension
Commercial Residential:
Commercial
Base Material:
Brass Bronze
Interior/Exterior:
Interior/Exterior
Latch Dimensions:
1-1/4" x 8"
Includes Cylinder(s)?:
No
Door Handing:
Non-handed
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 8:
3/4" Spring Latch
Latch Throw (in):
3/4"
Specifications Bullet 1:
Grade 1 Passage Function Mortise Lockset
Lever/Knob/Pull:
Lever
Grade:
Grade 1
Lever/Knob/Pull Design:
17
Specifications Bullet 10:
6-5/8" X 4-1/2" Pocket Dimension
Specifications Bullet 6:
3" Projection
Finish Description:
Satin Chrome
Pocket Dimensions:
6-5/8" X 4-1/2"
Specifications Bullet 12:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Can Be Keyed:
No
Specifications Bullet 13:
10 Year Warranty
Rose/Escutcheon:
Escutcheon
Product Warranty:
10 Year Warranty
Deadbolt Throw (in):
Not Applicable
Projection (in):
3"
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Design:
N
Series:
L9000 Series Mortise Lock
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Latch Description:
Spring Latch
Function:
Passage
UOM:
1
Minimum Door Thickness (in):
1-3/4"
Backset (in):
2-3/4"
UPC:
840067640456
Manufacturer:
Schlage
Rose/Escutcheon Dimensions (in):
2-1/2" x 7-7/8"
Maximum Door Thickness (in):
1-3/4"
Parent Manufacturer:
Allegion
Strike Description:
ASA Strike
Strike Number:
10-072

Warranty Information

10 Year Warranty
