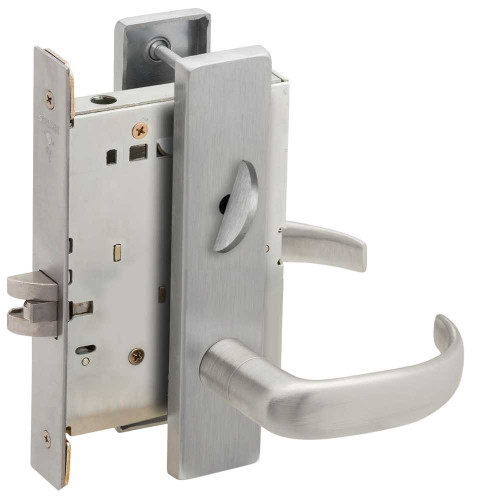

Schlage L9040 17L 626 Grade 1 Bed Bathroom Privacy Mortise Lock 17 Lever L Escutcheon Satin Chrome Finish Field Reversible

Schlage

Write a Review
SKU:
L9040 17L 626
$769.32
UPC:
840067640883
$769.32

Descriptions

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Latch Throw (in):
3/4"
Deadbolt Throw (in):
Not Applicable
Commercial Residential:
Commercial
Interior/Exterior:
Interior/Exterior
Cylinder Type:
Keyless
Can Be Keyed:
No
Specifications Bullet 7:
1-3/4" x 7-15/16" Escutcheon Dimension
Finish Description:
Satin Chrome
Door Handing:
Non-handed
Armor Front Dimensions:
1-1/4" x 8"
Specifications Bullet 6:
3" Projection
Specifications Bullet 2:
17 Lever
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 3:
L Escutcheon
Keyway:
Not Applicable
Door Range (Thickness):
1-3/4" - 1-3/4"
Specifications Bullet 8:
3/4" Spring Latch
Specifications Bullet 11:
For Doors 1-3/4" Thick
Function:
Privacy
Strike Dimensions:
1-1/4" x 4-7/8"
Lever/Knob/Pull:
Lever
Lever/Knob/Pull Design:
17
Parent Manufacturer:
Allegion
Rose/Escutcheon:
Escutcheon
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 1:
Grade 1 Privacy Function Mortise Lockset
Rose/Escutcheon Design:
L
Rose/Escutcheon Dimensions (in):
1-3/4" x 7-15/16"
Latch Description:
Spring Latch
Fire Rated:
3 Hours {A}
Includes Cylinder(s)?:
No
Country Of Origin:
Mexico
Strike Number:
10-072
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Electronic:
No
Grade:
Grade 1
Pocket Dimensions:
6-5/8" X 4-1/2"
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 10:
6-5/8" X 4-1/2" Pocket Dimension
Latch Dimensions:
1-1/4" x 8"
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Specifications Bullet 13:
10 Year Warranty
Product Warranty:
10 Year Warranty
UOM:
1
Specifications Bullet 12:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Finish:
626/US26D
Manufacturer:
Schlage
Specifications Bullet 4:
2-3/4" Backset
Strike Description:
ASA Strike
Projection (in):
3"
ADA:
Yes
Selling Quantity:
1
UPC:
840067640883
Backset (in):
2-3/4"
Series:
L Series
Base Material:
Brass Bronze
Uid:
SCH100L904017L626
Url Title:
l9040-17l-626
Title:
L9040 17L 626 Schlage Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Series:
L9000 Series Mortise Lock
Last Modified:
2023-02-28T05:36:09+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1119
Avg Lead Time:
25
Finish Family:
Matte Silver
Popularity:
5
Pack Weight:
6.3
Pack Length:
10.375
Pack Width:
5.375
Pack Height:
5.625
Pack Volume:
313.6816406
Ul Listing:
UL Listed
Ansi Code:
A156.13-2017 Series 1000, Grade 1
Baa Qualified:
Yes
Limited Warranty:
3 Years
Unit Of Measure:
Each
Unit Of Measure 2:
CASE
Unit Of Measure 2 Qty:
6
Vendor:
Allegion
Assembly Item:
1

Warranty Information

10 Year Warranty
