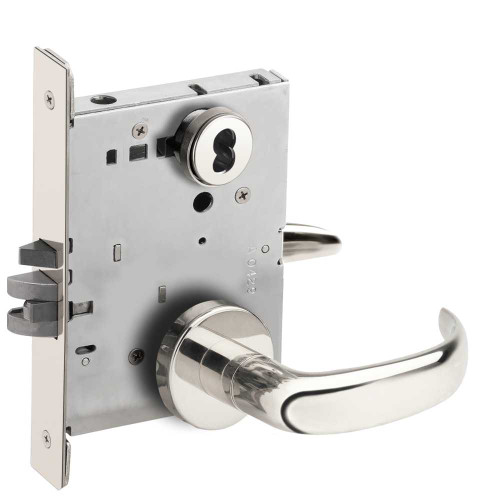

Schlage L9070J 03A 625 Grade 1 Classroom Mortise Lock Schlage FSIC Less Core 03 Lever A Rose Bright Chrome Finish Field Reversible

Schlage

Write a Review
SKU:
L9070J 03A 625
$842.75
UPC:
840067643303
$842.75

Descriptions

Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Pocket Dimensions:
6-5/8" X 4-1/2"
Deadbolt Throw (in):
Not Applicable
Specifications Bullet 2:
03 Lever
Finish:
625/US26
Grade:
Grade 1
Specifications Bullet 5:
2-3/4" Backset
Series:
L9000 Series Mortise Lock
Includes Cylinder(s)?:
No
Base Material:
Brass Bronze
Door Range (Thickness):
1-3/4" - 1-3/4"
Country Of Origin:
Mexico
Finish Description:
Bright Chrome
Specifications Bullet 8:
2-1/8" Rose Dimension
Rose/Escutcheon Design:
A
Minimum Door Thickness (in):
1-3/4"
Commercial Residential:
Commercial
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 13:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Armor Front Dimensions:
1-1/4" x 8"
Latch Dimensions:
1-1/4" x 8"
Parent Manufacturer:
Allegion
Specifications Bullet 11:
6-5/8" X 4-1/2" Pocket Dimension
Specifications Bullet 1:
Grade 1 Classroom Function Mortise Lockset
Backset (in):
2-3/4"
Specifications Bullet 4:
A Rose
Door Handing:
Non-handed
Strike Dimensions:
1-1/4" x 4-7/8"
Function:
Classroom
Fire Rated:
3 Hours {A}
Lever/Knob/Pull Design:
3
Lever/Knob/Pull:
Lever
Keyway:
Less Core
Can Be Keyed:
Yes
Electronic:
No
ADA:
Yes
Cylinder Type:
Mortise LFIC Housing
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 3:
Mortise LFIC Housing Less Core
Latch Description:
Dead Latch
Specifications Bullet 12:
For Doors 1-3/4" Thick
Latch Throw (in):
3/4"
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Interior/Exterior:
Interior/Exterior
Projection (in):
2-13/16"
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 7:
2-13/16" Projection
Selling Quantity:
1
Specifications Bullet 14:
10 Year Warranty
Strike Description:
ASA Strike
UOM:
1
Rose/Escutcheon:
Rose
Maximum Door Thickness (in):
1-3/4"
Product Warranty:
10 Year Warranty
Strike Number:
10-072
Manufacturer:
Schlage
Rose/Escutcheon Dimensions (in):
2-1/8"
UPC:
840067643303

Warranty Information

10 Year Warranty
