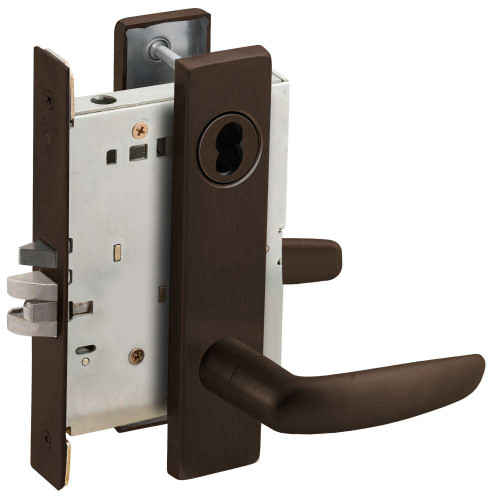

Schlage L9071B 07L 613 Grade 1 Classroom Security Mortise Lock SFIC Prep Less Core 07 Lever L Escutcheon Dark Oxidized Satin Bronze Oil Rubbed Finish Field Reversible

Schlage

Write a Review
SKU:
L9071B 07L 613
$930.73
UPC:
840067644973
$930.73

Descriptions

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Parent Manufacturer:
Allegion
ADA:
Yes
Can Be Keyed:
Yes
Armor Front Dimensions:
1-1/4" x 8"
Base Material:
Bronze
Backset (in):
2-3/4"
Commercial Residential:
Commercial
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Series:
L9000 Series Mortise Lock
Manufacturer:
Schlage
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Electronic:
No
Function:
Classroom
Country Of Origin:
Mexico
Fire Rated:
3 Hours {A}
Cylinder Type:
Mortise SFIC Housing
Deadbolt Throw (in):
Not Applicable
Door Range (Thickness):
1-3/4" - 1-3/4"
Finish:
613/US10B
Door Handing:
Non-handed
Latch Description:
Dead Latch
Grade:
Grade 1
Interior/Exterior:
Interior/Exterior
Keyway:
Less Core
Includes Cylinder(s)?:
No
Latch Dimensions:
1-1/4" x 8"
Lever/Knob/Pull:
Lever
Lever/Knob/Pull Design:
7
Specifications Bullet 1:
Grade 1 Classroom Function Mortise Lockset
Latch Throw (in):
3/4"
Specifications Bullet 2:
07 Lever
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 3:
Mortise SFIC Housing Less Core
Specifications Bullet 4:
L Escutcheon
Specifications Bullet 7:
2-7/8" Projection
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 11:
6-5/8" X 4-1/2" Pocket Dimension
Specifications Bullet 9:
3/4" Dead Latch
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 8:
1-3/4" x 7-15/16" Escutcheon Dimension
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 13:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Pocket Dimensions:
6-5/8" X 4-1/2"
Product Warranty:
10 Year Warranty
Projection (in):
2-7/8"
Specifications Bullet 14:
10 Year Warranty
Rose/Escutcheon:
Escutcheon
Maximum Door Thickness (in):
1-3/4"
Minimum Door Thickness (in):
1-3/4"
Rose/Escutcheon Design:
L
Rose/Escutcheon Dimensions (in):
1-3/4" x 7-15/16"
Selling Quantity:
1
Strike Description:
ASA Strike
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
10-072
UOM:
1
UPC:
840067644973
Uid:
SCH100L9071BD07L613
Url Title:
l9071bd-07l-613
Title:
L9071B 07L 613 Schlage Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-28T06:15:53+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1364
Finish Family:
Dark Bronze
Popularity:
7
Pack Weight:
6.3
Pack Length:
10.375
Pack Width:
5.375
Pack Height:
5.625
Pack Volume:
313.6816406
Ul Listing:
UL Listed
Ansi Code:
A156.13-2017 Series 1000
Baa Qualified:
Yes
Limited Warranty:
3 Years
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
Allegion
Assembly Item:
1

Warranty Information

10 Year Warranty
