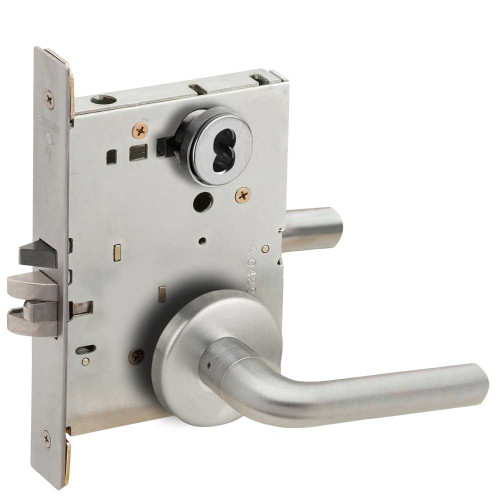

Schlage L9080B 07A 626 Grade 1 Storeroom Mortise Lock SFIC Prep Less Core 07 Lever A Rose Satin Chrome Finish Field Reversible

Schlage

Write a Review
SKU:
L9080B 07A 626
$821.58
UPC:
840067646779
$821.58

Descriptions

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Country Of Origin:
Mexico
Specifications Bullet 7:
2-7/8" Projection
Specifications Bullet 1:
Grade 1 Storeroom Function Mortise Lockset
Interior/Exterior:
Interior/Exterior
Specifications Bullet 4:
A Rose
Base Material:
Brass Bronze
Fire Rated:
3 Hours {A}
Electronic:
No
Finish Description:
Satin Chrome
Door Range (Thickness):
1-3/4" - 1-3/4"
Commercial Residential:
Commercial
Latch Throw (in):
3/4"
Lever/Knob/Pull Design:
7
Specifications Bullet 5:
2-3/4" Backset
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Specifications Bullet 8:
2-1/8" Rose Dimension
Function:
Storeroom
Door Handing:
Non-handed
Specifications Bullet 9:
3/4" Dead Latch
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 2:
07 Lever
Latch Description:
Dead Latch
Rose/Escutcheon:
Rose
Backset (in):
2-3/4"
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Can Be Keyed:
Yes
Specifications Bullet 13:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Projection (in):
2-7/8"
Keyway:
Less Core
Lever/Knob/Pull:
Lever
Product Warranty:
10 Year Warranty
Deadbolt Throw (in):
Not Applicable
Pocket Dimensions:
6-5/8" X 4-1/2"
Minimum Door Thickness (in):
1-3/4"
Grade:
Grade 1
Specifications Bullet 14:
10 Year Warranty
Specifications Bullet 11:
6-5/8" X 4-1/2" Pocket Dimension
Finish:
626/US26D
Includes Cylinder(s)?:
No
Cylinder Type:
Mortise SFIC Housing
Specifications Bullet 3:
Mortise SFIC Housing Less Core
Latch Dimensions:
1-1/4" x 8"
Strike Description:
ASA Strike
UOM:
1
UPC:
840067646779
Rose/Escutcheon Design:
A
Series:
L9000 Series Mortise Lock
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Selling Quantity:
1
Parent Manufacturer:
Allegion
Manufacturer:
Schlage
Armor Front Dimensions:
1-1/4" x 8"
Strike Dimensions:
1-1/4" x 4-7/8"
Rose/Escutcheon Dimensions (in):
2-1/8"
Strike Number:
10-072
ADA:
Yes

Warranty Information

10 Year Warranty
