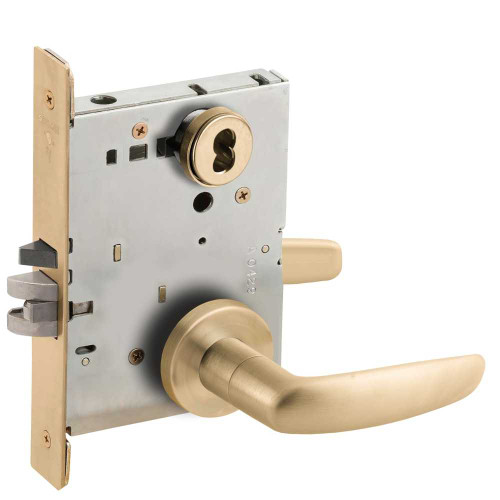

Schlage L9080J 07A 626 Grade 1 Storeroom Mortise Lock Schlage FSIC Less Core 07 Lever A Rose Satin Chrome Finish Field Reversible

Schlage

Write a Review
SKU:
L9080J 07A 626
$834.81
UPC:
840067647134
$834.81

Descriptions

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Specifications Bullet 7:
2-7/8" Projection
ADA:
Yes
Lever/Knob/Pull:
Lever
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Manufacturer:
Schlage
Specifications Bullet 2:
07 Lever
Specifications Bullet 14:
10 Year Warranty
Specifications Bullet 8:
2-1/8" Rose Dimension
Commercial Residential:
Commercial
Door Range (Thickness):
1-3/4" - 1-3/4"
Specifications Bullet 9:
3/4" Dead Latch
Function:
Storeroom
Specifications Bullet 12:
For Doors 1-3/4" Thick
Door Handing:
Non-handed
Finish Description:
Satin Chrome
Armor Front Dimensions:
1-1/4" x 8"
Specifications Bullet 1:
Grade 1 Storeroom Function Mortise Lockset
Country Of Origin:
Mexico
Pocket Dimensions:
6-5/8" X 4-1/2"
Fire Rated:
3 Hours {A}
Latch Throw (in):
3/4"
Lever/Knob/Pull Design:
7
Base Material:
Brass Bronze
Projection (in):
2-7/8"
Specifications Bullet 4:
A Rose
Keyway:
Less Core
Finish:
626/US26D
Specifications Bullet 13:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Interior/Exterior:
Interior/Exterior
Deadbolt Throw (in):
Not Applicable
Product Warranty:
10 Year Warranty
Cylinder Type:
Mortise LFIC Housing
Includes Cylinder(s)?:
No
Specifications Bullet 10:
1-1/8" x 8" Faceplate Dimension
Latch Dimensions:
1-1/4" x 8"
Strike Number:
10-072
Latch Description:
Dead Latch
Backset (in):
2-3/4"
Parent Manufacturer:
Allegion
Series:
L9000 Series Mortise Lock
Specifications Bullet 3:
Mortise LFIC Housing Less Core
Grade:
Grade 1
Specifications Bullet 11:
6-5/8" X 4-1/2" Pocket Dimension
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 5:
2-3/4" Backset
Electronic:
No
Rose/Escutcheon:
Rose
Selling Quantity:
1
Can Be Keyed:
Yes
Rose/Escutcheon Dimensions (in):
2-1/8"
Rose/Escutcheon Design:
A
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Strike Dimensions:
1-1/4" x 4-7/8"
UPC:
840067647134
Strike Description:
ASA Strike
UOM:
1
Uid:
SCH100L9080J07A626
Url Title:
l9080j-07a-626
Title:
L9080J 07A 626 Schlage Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-28T06:07:34+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1213
Avg Lead Time:
82
Finish Family:
Matte Silver
Popularity:
5
Pack Weight:
6.3
Pack Length:
10.375
Pack Width:
5.375
Pack Height:
5.625
Pack Volume:
313.6816406
Ul Listing:
UL Listed
Ansi Code:
A156.13-2017 Series 1000
Limited Warranty:
3 Years
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
Allegion
Assembly Item:
1

Warranty Information

10 Year Warranty
