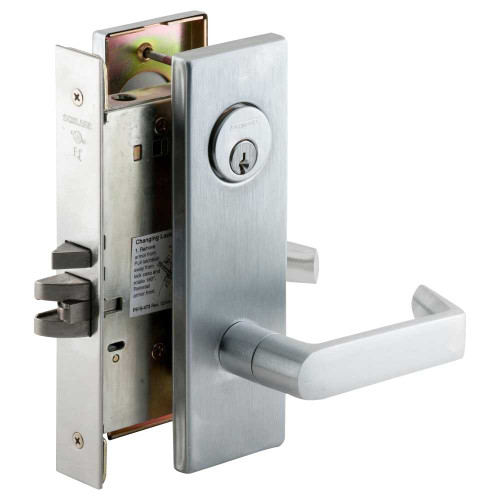

Schlage L9092EUP 06N 626 RX Grade 1 Fail Secure Electric Mortise Lock Conventional Cylinder 06 Lever N Escutcheon Request to Exit Satin Chromium Plated Finish Field Reversible

Schlage

Write a Review
SKU:
L9092EUP 06N 626 RX
$1,360.04
Schlage L9092EUP 06N 626 RX Grade 1 Fail Secure Electric Mortise Lock Conventional Cylinder 06 Lever N Escutcheon Request to Exit Satin Chromium Plated Finish Field Reversible
$1,360.04

Descriptions

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf

Specifications

Brand:
Schlage
Grade:
Grade 1
Parent Manufacturer:
Allegion
Function:
Electronic Unlocking Storeroom
Can Be Keyed:
Yes
Specifications Bullet 5:
12/24 VDC Voltage
Manufacturer:
Schlage
Door Range (Thickness):
1-3/4" - 1-3/4"
Armor Front Dimensions:
1-1/4" x 8"
Lever/Knob/Pull:
Lever
Country of Origin:
Mexico
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Specifications Bullet 6:
N Escutcheon
Commercial Residential:
Commercial
Series:
L9090 Series Electrified Mortise Lock
Cylinder Type:
Mortise Conventional
Specifications Bullet 14:
3 Year Warranty
Specifications Bullet 2:
06 Lever
Includes Cylinder(s)?:
Yes
Specifications Bullet 3:
Mortise Conventional C Keyway
Minimum Door Thickness (in):
1-3/4"
Base Material:
Brass or Bronze
Maximum Door Thickness (in):
1-3/4"
Backset (in):
2-3/4"
Latch Description:
Dead Latch
Specifications Bullet 13:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Specifications Bullet 12:
For Doors 1-3/4" Thick
Specifications Bullet 4:
Fail Secure Request to Exit
UOM:
1
Specifications Bullet 10:
2-1/2" Projection
Rose/Escutcheon Design:
N
Finish Description:
Satin Chromium Plated
Keyway:
C Keyway
Electronic:
Yes
Rose/Escutcheon Dimensions (in):
2-1/2" X 7-15/16"
Finish:
626/US26D
Voltage:
12/24VDC
Option 1:
Request to Exit
Strike Number:
10-072
Product Warranty:
3 Year Warranty
Lever/Knob/Pull Design:
6
Specifications Bullet 8:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 1:
Grade 1 Electronic Unlocking Storeroom Function Mortise Lockset
Pocket Dimensions:
6-5/8" x 4-1/2"
Specifications Bullet 9:
3/4" Dead Latch
Rose/Escutcheon:
Escutcheon
Projection (in):
2-1/2"
Specifications Bullet 7:
2-3/4" Backset
Strike Description:
ASA Strike
Door Handing:
Non-handed
Strike Dimensions:
1-1/4" x 4-7/8"
Specifications Bullet 11:
2-1/2" X 7-15/16" Escutcheon Dimension
Latch Throw (in):
3/4"
ADA:
Yes
FS/FSE Mode:
Fail Secure
Uid:
SCH100L9092EUP06N626RX
Url Title:
l9092eup-06n-626-rx
Title:
L9092EUP 06N 626 RX Schlage Lock Electric Mortise Lock
Type:
Electric Locks
Sub Type:
Electric Mortise Lock
Last Modified:
2023-02-28T06:31:28+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1967
Avg Lead Time:
21
Popularity:
3
Pack Weight:
7
Pack Length:
10.25
Pack Width:
5.5
Pack Height:
5.5
Limited Warranty:
1 Year
Fire Rated:
3 Hours {A}
Accessible:
Yes
Unit Of Measure:
EACH
Assembly Item:
1

Warranty Information

3 Year Warranty
