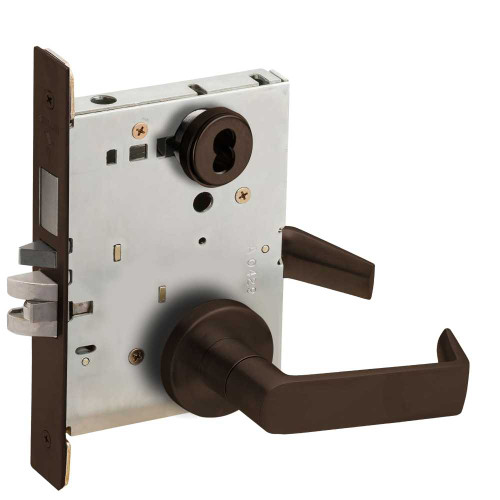

Schlage L9453B 17A 613 Schlage L-Series Entrance Mortise Lock A Rose 17 Lever Grade 1 Mortise Lock SFIC Prep Less Core Dark Oxidized Satin Bronze Oil Rubbed

Schlage

Write a Review
SKU:
L9453B 17A 613
$869.21
UPC:
840067648742
$869.21

Descriptions

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Base Material:
Bronze
Armor Front Dimensions:
1-1/4" x 8"
Can Be Keyed:
Yes
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Series:
L9000 Series Mortise Lock
Manufacturer:
Schlage
Commercial Residential:
Commercial
Backset (in):
2-3/4"
ADA:
Yes
Parent Manufacturer:
Allegion
Country Of Origin:
Mexico
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Function:
Entrance with Deadbolt
Deadbolt Throw (in):
1"
Fire Rated:
3 Hours {A}
Door Handing:
Non-handed
Cylinder Type:
Mortise SFIC Housing
Door Range (Thickness):
1-3/4" - 1-3/4"
Electronic:
No
Finish:
613/US10B
Interior/Exterior:
Interior/Exterior
Latch Throw (in):
3/4"
Lever/Knob/Pull:
Lever
Latch Dimensions:
1-1/4" x 8"
Keyway:
Less Core
Includes Cylinder(s)?:
No
Specifications Bullet 1:
Grade 1 Entrance with Deadbolt Function Mortise Lockset
Latch Description:
Dead Latch
Grade:
Grade 1
Lever/Knob/Pull Design:
17
Specifications Bullet 3:
Mortise SFIC Housing Less Core
Specifications Bullet 4:
A Rose
Specifications Bullet 2:
17 Lever
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 9:
1" Deadbolt Throw
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 8:
2-1/8" Rose Dimension
Specifications Bullet 7:
3" Projection
Specifications Bullet 10:
3/4" Dead Latch
Specifications Bullet 11:
1-1/8" x 8" Faceplate Dimension
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 14:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Projection (in):
3"
Specifications Bullet 15:
10 Year Warranty
Maximum Door Thickness (in):
1-3/4"
Pocket Dimensions:
6-5/8" X 4-1/2"
Specifications Bullet 13:
For Doors 1-3/4" Thick
Specifications Bullet 12:
6-5/8" X 4-1/2" Pocket Dimension
Rose/Escutcheon:
Rose
Product Warranty:
10 Year Warranty
UOM:
1
Strike Description:
ASA Strike
Selling Quantity:
1
UPC:
840067648742
Rose/Escutcheon Dimensions (in):
2-1/8"
Rose/Escutcheon Design:
A
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
10-072
Uid:
SCH100L9453BD17A613
Url Title:
l9453bd-17a-613
Title:
L9453BD 17A 613 Schlage Lock Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-28T06:34:45+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1269
Popularity:
9
Pack Weight:
7
Pack Length:
10.25
Pack Width:
5.5
Pack Height:
5.5
Ansi Code:
F20 - Entry/Office
Baa Qualified:
Yes
Limited Warranty:
3 Years
Unit Of Measure:
Each
Vendor:
Allegion
Assembly Item:
1

Warranty Information

10 Year Warranty
