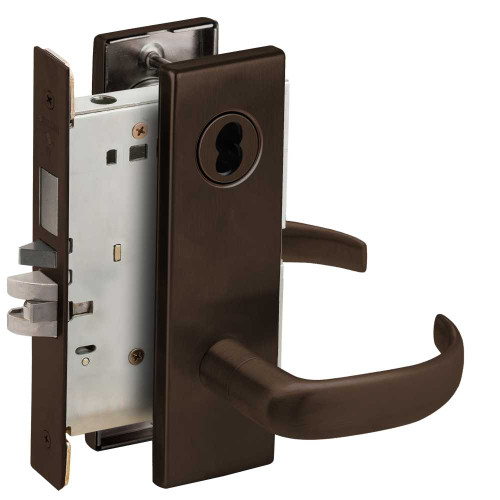

Schlage L9453J 06N 613 Schlage L-Series Entrance Mortise Lock N Decorative Escutcheon 06 Lever Grade 1 Mortise Lock FSIC Less Core Dark Oxidized Satin Bronze Oil Rubbed

Schlage

Write a Review
SKU:
L9453J 06N 613
$901.62
UPC:
840067648988
$901.62

Descriptions

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Manufacturer:
Schlage
Armor Front Dimensions:
1-1/4" x 8"
ADA:
Yes
Can Be Keyed:
Yes
Backset (in):
2-3/4"
Base Material:
Bronze
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Commercial Residential:
Commercial
Series:
L9000 Series Mortise Lock
Parent Manufacturer:
Allegion
Country Of Origin:
Mexico
Electronic:
No
Finish Description:
Dark Oxidized Satin Bronze Oil Rubbed
Deadbolt Throw (in):
1"
Door Range (Thickness):
1-3/4" - 1-3/4"
Finish:
613/US10B
Function:
Entrance with Deadbolt
Door Handing:
Non-handed
Fire Rated:
3 Hours {A}
Cylinder Type:
Mortise LFIC Housing
Grade:
Grade 1
Lever/Knob/Pull Design:
6
Includes Cylinder(s)?:
No
Keyway:
Less Core
Specifications Bullet 1:
Grade 1 Entrance with Deadbolt Function Mortise Lockset
Latch Throw (in):
3/4"
Latch Description:
Dead Latch
Lever/Knob/Pull:
Lever
Interior/Exterior:
Interior/Exterior
Latch Dimensions:
1-1/4" x 8"
Specifications Bullet 2:
06 Lever
Specifications Bullet 7:
2-1/2" Projection
Specifications Bullet 5:
2-3/4" Backset
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 9:
1" Deadbolt Throw
Specifications Bullet 10:
3/4" Dead Latch
Specifications Bullet 8:
2-1/2" x 7-7/8" Escutcheon Dimension
Specifications Bullet 3:
Mortise LFIC Housing Less Core
Specifications Bullet 4:
N Escutcheon
Specifications Bullet 11:
1-1/8" x 8" Faceplate Dimension
Specifications Bullet 13:
For Doors 1-3/4" Thick
Maximum Door Thickness (in):
1-3/4"
Specifications Bullet 15:
10 Year Warranty
Product Warranty:
10 Year Warranty
Projection (in):
2-1/2"
Rose/Escutcheon:
Escutcheon
Minimum Door Thickness (in):
1-3/4"
Pocket Dimensions:
6-5/8" X 4-1/2"
Specifications Bullet 12:
6-5/8" X 4-1/2" Pocket Dimension
Specifications Bullet 14:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Strike Description:
ASA Strike
UOM:
1
UPC:
840067648988
Rose/Escutcheon Design:
N
Rose/Escutcheon Dimensions (in):
2-1/2" x 7-7/8"
Selling Quantity:
1
Strike Dimensions:
1-1/4" x 4-7/8"
Strike Number:
10-072
Uid:
SCH100L9453J06N613
Url Title:
l9453j-06n-613
Title:
L9453J 06N 613 Schlage Lock Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-28T06:30:14+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
1313
Popularity:
9
Pack Weight:
7
Pack Length:
10.25
Pack Width:
5.5
Pack Height:
5.5
Ansi Code:
F20 - Entry/Office
Baa Qualified:
Yes
Limited Warranty:
3 Years
Unit Of Measure:
Each
Vendor:
Allegion
Assembly Item:
1

Warranty Information

10 Year Warranty
