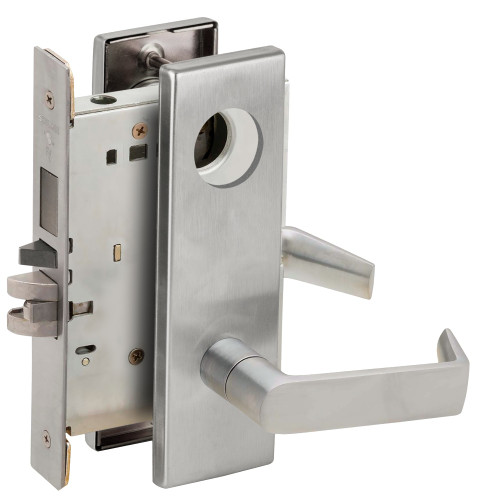

Schlage L9453L 06A 626 Grade 1 Entrance/Office Mortise Lock with Deadbolt Less Cylinder 06 Lever A Rose Satin Chrome Finish Field Reversible

Schlage

Write a Review
SKU:
L9453L 06A 626
$787.19
$787.19

Descriptions

Schlage L Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogL Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_L_Series_Catalog_102899.pdf
data-sheetSchlage L Indicator Data Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/datasheets/Schlage_L_Series_Mechanical_Indicator_Data_Sheet_110453.pdf
installation-instructionsL Series Mounting Plate Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108302.pdf
L400 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108267.pdf
L9000 Indicator Handing Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/111375.pdf
L9000 Indicator Lever w/ Escutcheon Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110669.pdf
L9000 Indicator Lever w/ Sectional Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/110670.pdf
L9000 Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108367.pdf
L9000 Knob Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108380.pdf
Video: L9050 Mortise Lock Installationhttps://youtu.be/U6fUoLLH7Kw
parts-listSchlage L Series Parts Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/SCH_parts-diagram_L-series.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
service-manualSchlage L Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106500.pdf

Specifications

Brand:
Schlage
Electronic:
No
Base Material:
Brass or Bronze
Specifications Bullet 9:
1" Deadbolt Throw
Lever/Knob/Pull:
Lever
Country Of Origin:
Mexico
ADA:
Yes
Cylinder Type:
Less Cylinder
Deadbolt Throw (in):
1"
Parent Manufacturer:
Allegion
Backset (in):
2-3/4"
Latch Throw (in):
3/4"
Specifications Bullet 12:
6-5/8" X 4-1/2" Pocket Dimension
Door Handing:
Non-handed
Door Range (Thickness):
1-3/4" - 1-3/4"
Minimum Door Thickness (in):
1-3/4"
Finish Description:
Satin Chrome
Specifications Bullet 7:
2-1/2" Projection
Specifications Bullet 1:
Grade 1 Entrance with Deadbolt Function Mortise Lockset
Selling Quantity:
1
Certification:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Specifications Bullet 4:
A Rose
Latch Description:
Dead Latch
Fire Rated:
3 Hours {A}
Lever/Knob/Pull Design:
6
Grade:
Grade 1
Function:
Entrance with Deadbolt
Specifications Bullet 8:
2-1/8" Rose Dimension
Specifications Bullet 10:
3/4" Dead Latch
Specifications Bullet 14:
ANSI A156.13-2012, Series 1000, Grade 1, UL Listed
Keyway:
Not Applicable
Specifications Bullet 2:
06 Lever
Product Warranty:
10 Year Warranty
Specifications Bullet 11:
1-1/8" x 8" Faceplate Dimension
Finish:
626/US26D
Latch Dimensions:
1-1/4" x 8"
Specifications Bullet 6:
1-1/4" x 4-7/8" ASA Strike
Commercial Residential:
Commercial
Specifications Bullet 3:
Less Cylinder
Strike Description:
ASA Strike
Series:
L9000 Series Mortise Lock
Can Be Keyed:
Yes
Rose/Escutcheon Design:
A
Specifications Bullet 5:
2-3/4" Backset
Strike Number:
10-072
Specifications Bullet 13:
For Doors 1-3/4" Thick
Rose/Escutcheon Dimensions (in):
2-1/8"
Maximum Door Thickness (in):
1-3/4"
Projection (in):
2-1/2"
Includes Cylinder(s)?:
No
Strike Dimensions:
1-1/4" x 4-7/8"
UOM:
1
Rose/Escutcheon:
Rose
Armor Front Dimensions:
1-1/4" x 8"
Manufacturer:
Schlage
Specifications Bullet 15:
10 Year Warranty
Pocket Dimensions:
6-5/8" X 4-1/2"

Warranty Information

10 Year Warranty
