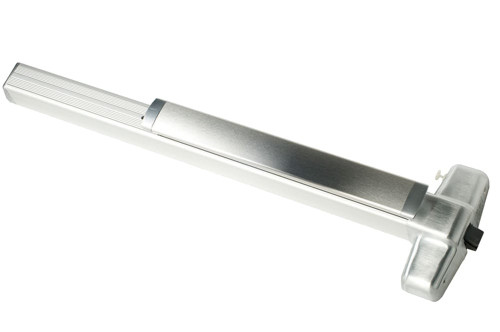

Von Duprin LDXP99EO 3 26D Grade 1 Extra Protection Rim Exit Device Wide Stile Pushpad 36 Exit Only Less Trim Less Dogging Satin Chrome Finish Non-Handed

Von Duprin

Write a Review
SKU:
LDXP99EO 3 26D
$1,499.15
Von Duprin LDXP99EO 3 26D Grade 1 Extra Protection Rim Exit Device Wide Stile Pushpad 36 Exit Only Less Trim Less Dogging Satin Chrome Finish Non-Handed
$1,499.15

Descriptions

XP98/99 Rim exit devices are designed for single and double doors with mullion that require increased security. The XP latch provides twice the static load force resistance of standard exit devices. The "smart" latch changes shape when subjected to external forces. This design enables the exit door to withstand an external attack and remain secure. Additionally, the patented latch bolt design provides greater, longer-lasting latch bolt to strike contact which is not easily affected by the twisting motion of a weakened frame, resulting in an opening that will remain strong. Devices are ANSI A156.3 - 2014 Grade 1 and UL listed for panic exit hardware. The rim device is non-handed except when the following device options are used: SD (special dogging) or -2 (double cylinder). See Opposite page for available outside trim and device functions. Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs - consult template).
TypeTitleURL
price-book2024 Von Duprin Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/vonduprin/pricebooks/VON_pricebook_3-2024.pdf
videoIntroduction to Von Duprin Exit Deviceshttps://youtu.be/t-9QD-Oh3Qc

Specifications

Brand:
Von Duprin
Cylinder Type:
Keyless
Series:
XP99 Extra Protection Rim Exit Devices
Backset (in):
2-3/4"
Base Material:
Brass or Bronze
Manufacturer:
Von Duprin
Parent Manufacturer:
Allegion
Center Case Dimensions:
8" x 2-3/4" x 2-3/8"
Certification:
ANSI A156.3-2014, Grade 1
Commercial Residential:
Commercial
Country of Origin:
United States
Door Width Minimum (in):
28"
Finish:
626/US26D
Dogging Type:
Not Applicable
Door Material:
Metal/Wood
Door Width Maximum (in):
36"
Door Handing:
Non-handed
Door Height (in):
Not Applicable
Door Range (Thickness):
1-3/4" - 2-1/8"
End Cap Material:
Cast Zinc
Electronic:
No
Latch Description:
Dead Latch
Latch Throw (in):
3/4"
Keyway:
Not Applicable
Grade:
Grade 1
Includes Cylinder(s)?:
No
Finish Description:
Satin Chrome
Specifications Bullet 2:
(LD) Less Dogging
Specifications Bullet 1:
Surface Exit Device, Exit Only
Function:
Exit Only
Fire Rated:
No
Specifications Bullet 3:
4" Minimum Stile
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 5:
8" x 2-3/4" x 2-3/8" Center Case Dimension
Specifications Bullet 7:
For Doors 1-3/4" - 2-1/8" Thick
Specifications Bullet 8:
For Metal/Wood Doors
Specifications Bullet 6:
For Doors 28" - 36" Wide
Specifications Bullet 10:
3/4" Dead Latch
Specifications Bullet 11:
Cast Zinc End Cap
Specifications Bullet 9:
3-13/16" Full Extension
Specifications Bullet 12:
Includes Machine Screws
Specifications Bullet 13:
ANSI A156.3-2014, Grade 1
Strike Description:
Roller Strike
Specifications Bullet 14:
3 Year Warranty
Minimum Door Thickness (in):
1-3/4"
Maximum Door Thickness (in):
2-1/8"
Minimum Stile (in):
4"
Projection (in):
3-13/16"
Screw Pack:
Machine Screws
Option 1:
(LD) Less Dogging
Product Warranty:
3 Year Warranty
UOM:
1
Type:
Surface Exit Device
Uid:
VON100LDXP99EO326D
Url Title:
ldxp99eo-3-26d
Title:
LDXP99EO 3 26D Von Duprin Exit Device
Type:
Exit Devices
Sub Type:
Rim Exit Devices
Last Modified:
2023-02-28T07:55:46+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
2064
Avg Lead Time:
92
Finish Family:
Matte Silver
Popularity:
5
Ul Listing:
UL Listed
Ansi Code:
A156.3 2014
Limited Warranty:
3 Years
Unit Of Measure:
Each
Vendor:
Allegion
Assembly Item:
1

Warranty Information

3 Year Warranty
