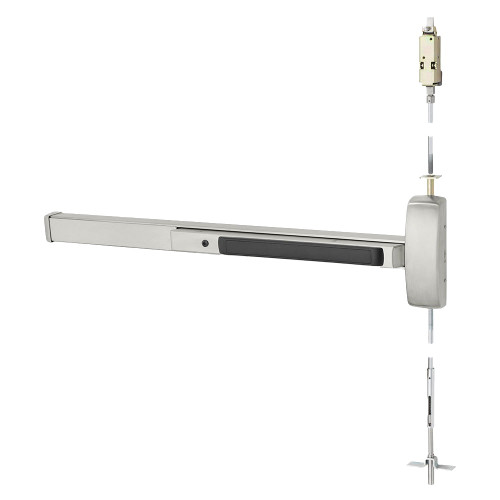

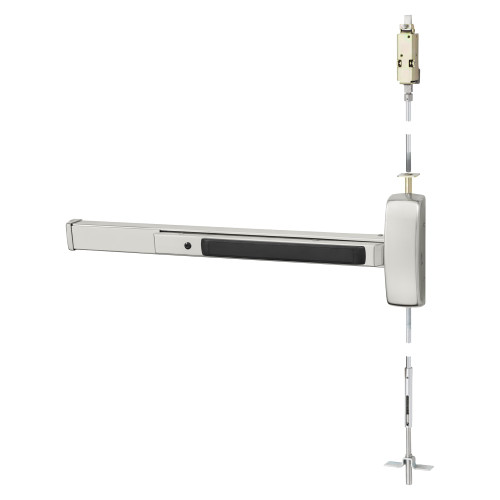

Sargent MD8610F RHR 32D Grade 1 Concealed Vertical Rod Exit Bar Wide Stile Pushpad 36 Device 120 Door Height Exit Only Hex Key Dogging Satin Stainless Steel Finish Right Hand Reverse

Sargent

Write a Review
SKU:
MD8610F RHR 32D
$2,301.58
$2,301.58

Descriptions

The Sargent 80 Series exit devices are ideal for environments that require strong and durable security solutions that will last the life of the building. Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices easily exceed ANSI/BHMA Grade 1 requirements for cycle and strength. With modular construction and few moving parts, the 80 Series devices are maintenance-free and provide unsurpassed security for any facility. Plus, options are available for unique applications including delayed egress, alarmed exit and electric latch retraction making these exit devices the go-to product in your building.
TypeTitleURL
brochure/sales-material80 Series Brochurehttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90788_80_Series_Exit_Device_Brochure_FINAL.pdf
catalog80 Series Exit Device Cataloghttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/SAR_catalog_80-series_9-2022.pdf
installation-instructions16- 816 Cylinder Dogging Kit (80 Series Exit Device) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6848.pdf
43-Flush End Cap Rail Cutting Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7581B.pdf
55-Signal Switch for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6808C.pdf
565 & 665 Metal End Cap Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6924B.pdf
57-Delayed Action 80 Series Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6810F_Sargent_57_Prefix_Instructions_5-5-2009.pdf
57-Delayed Egress for 80 Series Exit Devices to ElectroLynx Connector System Installationhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7743E.pdf
59-Electroguard Delayed Egress for 80 Series Exit Devices Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7690G.pdf
AL- Alarmed Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A7224C.pdf
Electric Dogging for 80 Series Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6835C_58-12-58-Electric_Dogging_11-24-08.pdf
Mounting 80 Series Exit Device with Glass Bead Shim Kit Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A6710B.pdf
WD8600/12-WD8600/NB-WD8600/NB-12-WD8600 Concealed Vertical Rod Exit Device Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/A3937H.pdf
literature80 Series Mechanical Panic Exit Device - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/sargent/literature/131.1_ASSA_ABLOY_mrEPD_SargentPanicExit80Series.pdf
Basic Fundamentals - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/catalog/web_90691_SAR_Exits_Tech_lo.pdf
parts-list16-LP/LR/LS8600 Low Profile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80.8AB-C.pdf
816 Cylinder Dogging Kit Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80-9-D.pdf
8600/8700/8800/8900 Wide Stile Rail Assemblies Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/instruction-sheets/80.2-C.pdf
LR8600 Concealed Vertical Rod Series Active Mortise Case Assembly Parts Listhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/86.12-A.pdf
parts-manual80 Series Parts Manualhttps://dvwi9lnoau63q.cloudfront.net/sargent/parts-list/80_Series_Parts_Manual.pdf
sell-sheet56-Electric Latch Retraction Exit Device Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90625_SAR_56_Sell_lo.pdf
Windstorm Solutions - Exit Deviceshttps://dvwi9lnoau63q.cloudfront.net/sargent/sell-sheet/90737_Windstorm_Exits.pdf

Specifications

Brand:
Sargent
End Cap Material:
Metal
Function:
Exit Only
Specifications Bullet 12:
Includes Machine Screws, Fasteners
Certification:
ANSI A156.3, Grade 1, UL Listed
Specifications Bullet 13:
ANSI A156.3, Grade 1, UL Listed
Latch Description:
Top - Bottom Latchbolts
Backset (in):
2-3/4"
Cylinder Type:
Keyless
Electronic:
No
Center Case Dimensions:
2-5/8" x 8-5/16"
Grade:
Grade 1
Includes Cylinder(s)?:
No
Specifications Bullet 4:
2-5/8" x 8-5/16" Center Case Dimension
Manufacturer:
Sargent
Specifications Bullet 8:
3" Full Extension
Commercial Residential:
Commercial
Specifications Bullet 5:
For Doors 33" - 36" Wide
Dogging Type:
Hex Key Dogging
Specifications Bullet 11:
Metal End Cap
Door Handing:
Right Hand Reverse
Latch Throw (in):
3/4"
Strike Number:
650/606
Fire Rated:
No
Dogging Option:
Yes
Door Width Maximum (in):
36"
Specifications Bullet 9:
3/4" Top - Bottom Latchbolts
Door Width Minimum (in):
33"
Finish Description:
Satin Stainless Steel
Country Of Origin:
USA
Base Material:
Stainless Steel
Finish:
630/US32D
Screw Pack:
Machine Screws, Fasteners
Specifications Bullet 14:
5 Year Warranty
Minimum Door Thickness (in):
1-3/4"
Maximum Door Thickness (in):
2-1/4"
Product Warranty:
5 Year Warranty
Specifications Bullet 2:
4-1/2" Minimum Stile
Door Height (in):
84"
Specifications Bullet 3:
2-3/4" Backset
Keyway:
Not Applicable
Door Range (Thickness):
1-3/4" - 2-1/4"
Specifications Bullet 1:
Concealed Vertical Rod Exit Device, Exit Only
Specifications Bullet 7:
For Metal Doors
Specifications Bullet 6:
For Doors 1-3/4" - 2-1/4" Thick
Box Width (in):
36"
Door Material:
Metal
Projection (in):
3"
Selling Quantity:
1
Minimum Stile (in):
4-1/2"
Specifications Bullet 10:
Hex Key Dogging
Parent Manufacturer:
Assa Abloy
Strike Description:
Square Corner
Type:
Concealed Vertical Rod Exit Device
UOM:
1
Series:
80 Series
Uid:
SAR100MD8610FRHR32D
Url Title:
md8610f-rhr-32d
Title:
MD8610F RHR 32D Sargent Exit Device
Type:
Exit Devices
Sub Type:
Concealed Vertical Rod Exit Devices
Series:
8600 Series Concealed Vertical Rod Exit Devices
Last Modified:
2023-02-13T13:19:24+00:00
Last Pricing:
2022-09-16T00:00:00+00:00
Msrp:
3443
Avg Lead Time:
15
Finish Family:
Matte Silver
Popularity:
5
Pack Weight:
15
Pack Length:
38
Pack Width:
7.5
Pack Height:
6
Pack Volume:
1710
Ul Listing:
UL10C & UL305
Ansi Code:
ANSI/BHMA A156.3
Restrictions:
None
Baa Qualified:
Yes
Limited Warranty:
5 Years
Accessible:
No
Unit Of Measure:
Each
Vendor:
Assa Abloy
