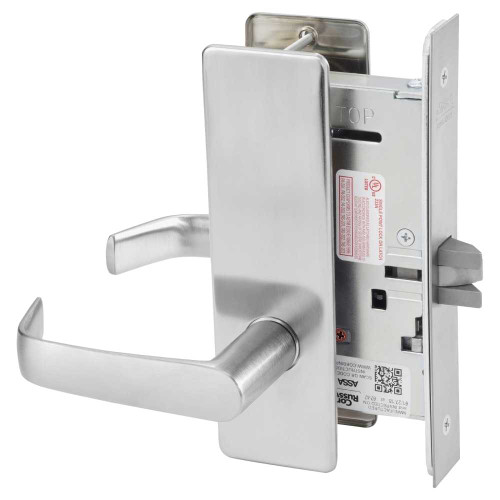

Corbin Russwin ML2010 NSM 630 D214 Passage or Closet Mortise Lock NS Lever M Escutcheon Satin Stainless Steel

Corbin Russwin

Write a Review
SKU:
ML2010 NSM 630 D214
$749.08
Corbin Russwin ML2010 NSM 630 D214 Passage or Closet Mortise Lock NS Lever M Escutcheon Satin Stainless Steel
$749.08

Descriptions

The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
TypeTitleURL
brochure/sales-materialCorbin Strikes/Kits Brochurehttps://dvwi9lnoau63q.cloudfront.net/corbin/brochures/Corbin_Strikes-Kits_Brochure.pdf
catalogML2000 and ML20900 Series Cataloghttps://dvwi9lnoau63q.cloudfront.net/corbin/catalogs/Corbin_Russwin_ML2000_Series_Mortise_Lock_Catalog.pdf
installation-instructionsML2000 Inspire Roseless Trim (J) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/Roseless-ML-Instructions-Rev-2-11.pdf
ML2000VR Vandal Resistant Trim Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM201.PDF
Mortise Lock Occupancy Indicators (With Cylinder) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM299.pdf
Mortise Lock Occupancy Indicators (Without Cylinder) Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/corbin/installation-instructions/FM289.pdf
Video: Changing the Hand on the ML20608https://youtu.be/oXqq0fOz4Uw
Video: HPSK Push/Pull Trim Installationhttps://youtu.be/htk2fZmiXdo
Video: ML2000 Series Mortise Lock with Sectional Rose Trim Installationhttps://youtu.be/VrRgXEBWg9k
literatureML2000 Series Mortise Lock - Environmental Product Declaration (EPD)https://dvwi9lnoau63q.cloudfront.net/corbin/literature/127.1_ASSA_ABLOY_mrEPD_CorbinRusswinML2000SeriesMortiseLock.pdf
price-book2023 Corbin Price Book (updated 10.2023)https://dvwi9lnoau63q.cloudfront.net/corbin/pricebooks/COR_pricebook_10-2023.pdf
touchless-general-solutionsAssa Abloy Hands-Free and Touchless Solutions Flyerhttps://dvwi9lnoau63q.cloudfront.net/corbin/literature/flyer_handsfree_touchless.pdf

Specifications

Brand:
Corbin Russwin
Parent Manufacturer:
Assa Abloy
ADA:
Yes
Backset (in):
2-3/4"
Series:
ML2000 Series Mortise Locks
Manufacturer:
Corbin Russwin
Cylinder Type:
Keyless
Certification:
ANSI A156.13, Series 1000, Grade 1, ANSI A117.1 (ADA)
Deadbolt Throw (in):
Not Applicable
Base Material:
Stainless Steel
Can Be Keyed:
No
Fire Rated:
3 Hours {A}
Door Range (Thickness):
1-3/4" - 2-1/4"
Door Handing:
Non-handed
Finish Description:
Satin Stainless Steel
Finish:
630/US32D
Includes Cylinder(s)?:
No
Function:
Passage
Grade:
Grade 1
Latch Description:
Spring Latch
Keyway:
Not Applicable
Lever/Knob/Pull:
Lever
Specifications Bullet 2:
NS Lever
Specifications Bullet 1:
Grade 1 Passage Function Mortise Lockset
Latch Throw (in):
3/4"
Lever/Knob/Pull Design:
NS
Specifications Bullet 6:
2-5/8" Projection
Specifications Bullet 4:
2-3/4" Backset
Specifications Bullet 3:
M Escutcheon
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Specifications Bullet 7:
2-1/4" x 7-1/2" Escutcheon Dimension
Specifications Bullet 10:
6-5/8" X 4-1/2" Pocket Dimension
Specifications Bullet 11:
For Doors 2-1/4" - 1-3/4" Thick
Specifications Bullet 8:
3/4" Spring Latch
Specifications Bullet 12:
ANSI A156.13, Series 1000, Grade 1, ANSI A117.1 (ADA)
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Pocket Dimensions:
6-5/8" X 4-1/2"
Minimum Door Thickness (in):
1-3/4"
Maximum Door Thickness (in):
2-1/4"
Option 1:
(D214) 2-1/4 Door Thickness
Specifications Bullet 13:
10 Year Warranty
Uid:
COR300ML2010NSM630D214
Url Title:
ml2010-nsm-630-d214
Title:
ML2010 NSM 630 D214 Corbin Russwin Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2024-02-03T06:02:51+00:00
Last Pricing:
2023-04-17T00:00:00+00:00
Msrp:
1199
Avg Lead Time:
24
Popularity:
8
Pack Weight:
4
Pack Length:
10
Pack Width:
7.5
Pack Height:
4.5
Country Of Origin:
USA
Baa Qualified:
Yes
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6

Warranty Information

10 Year Warranty
