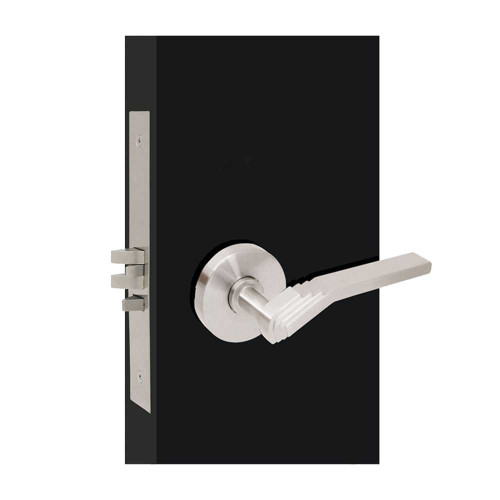

TownSteel MSS-L-S-01-626 ANSI Grade 1 Heavy Duty Low Sectional Mortise Lock Sentinel Lever Non-Keyed Passage/Closet Satin Chrome

TownSteel

Write a Review
SKU:
MSS-L-S-01-626
$303.63
TownSteel MSS-L-S-01-626 ANSI Grade 1 Heavy Duty Low Sectional Mortise Lock Sentinel Lever Non-Keyed Passage/Closet Satin Chrome
$303.63

Specifications

Brand:
TownSteel
Lever/Knob/Pull Design:
Sentinel
Lever/Knob/Pull:
Lever
Specifications Bullet 10:
6-5/8" X 4-1/2" Pocket Dimension
Grade:
Grade 1
Function:
Passage
Cylinder Type:
Keyless
Deadbolt Throw (in):
Not Applicable
Specifications Bullet 11:
For Doors 1-3/4" Thick
Minimum Door Thickness (in):
1-3/4"
Specifications Bullet 1:
Grade 1 Passage Function Mortise Lockset
Specifications Bullet 2:
Sentinel Lever
Finish:
626/US26D
Projection (in):
2-1/4"
Latch Description:
Spring Latch
Finish Description:
Satin Chrome
Keyway:
Not Applicable
Rose/Escutcheon:
Rose
Door Range (Thickness):
1-3/4" - 1-3/4"
Base Material:
Brass Bronze
Specifications Bullet 7:
2-3/4" Rose Dimension
ADA:
Yes
Specifications Bullet 4:
2-3/4" Backset
Door Handing:
Non-handed
Series:
TownSteel Mortise Locks
Specifications Bullet 8:
3/4" Spring Latch
Includes Cylinder(s)?:
No
Latch Throw (in):
3/4"
Certification:
ANSI/BHMA Certified Grade 1, UL Listed
Specifications Bullet 9:
1-1/8" x 8" Faceplate Dimension
Strike Description:
ASA Strike
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Product Warranty:
Limited Warranty
Maximum Door Thickness (in):
1-3/4"
Pocket Dimensions:
6-5/8" X 4-1/2"
Specifications Bullet 6:
2-1/4" Projection
Fire Rated:
Yes
Specifications Bullet 12:
ANSI/BHMA Certified Grade 1, UL Listed
Specifications Bullet 3:
L Rose
Can Be Keyed:
No
Rose/Escutcheon Design:
L
Backset (in):
2-3/4"
Manufacturer:
TownSteel
Specifications Bullet 13:
Limited Warranty
Rose/Escutcheon Dimensions (in):
2-3/4"
Strike Dimensions:
1-1/4" x 4-7/8"
Uid:
TOW200MSSLS01626
Url Title:
mss-l-s-01-626
Title:
MSS-L-S-01-626 TownSteel Mortise Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Mortise Lock
Last Modified:
2023-02-26T07:11:35+00:00
Last Pricing:
2023-02-16T00:00:00+00:00
Msrp:
433
Popularity:
6
Unit Of Measure:
Each

Warranty Information

Limited Warranty
