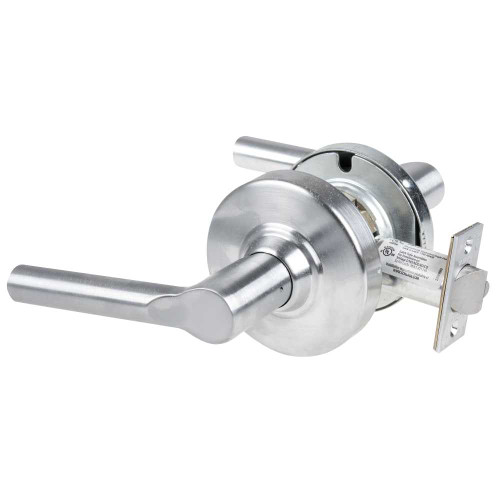

Schlage ND10S BRW 619 Grade 1 Passage Latch Broadway Lever Non-Keyed Satin Nickel Finish Non-Handed

Schlage

Write a Review
SKU:
ND10S BRW 619
$422.04
$422.04

Descriptions

Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
TypeTitleURL
brochure/sales-materialSchlage Finishes Charthttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/ALLEGION_finish-chart.pdf
catalogND Series Locks & Latches Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Allegion_2014_Commercial_Product_Catalogue_ND_Series_0114.pdf
ND Series Mechanical Grade 1 Cylindrical Locks Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/Schlage_ND_Series_Catalog_106501.pdf
ND Series Product Cataloghttps://dvwi9lnoau63q.cloudfront.net/schlage/catalogs/106501.pdf
installation-guideSchlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDSeriesStandInstallInstructionslocksmanafter8-15-2012.pdf
Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/NDStandInstallInstructionslocksmanubefore8-15-2012.pdf
installation-instructionsND Series Electrified Functions Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/108353.PDF
ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/111248.pdf
ND Series Hollow Metal Door Spacer Installation Instructionshttps://dvwi9lnoau63q.cloudfront.net/schlage/installation/107544.pdf
ND170 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108996.pdf
ND170 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106121.pdf
ND25 Installation Instructions (locks manufactured after 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/108995.pdf
ND25 Installation Instructions (locks manufactured before 8-15-2012)https://dvwi9lnoau63q.cloudfront.net/schlage/installation/106122.pdf
Video: ND Series Lock Installationhttps://youtu.be/U6fUoLLH7Kw
keyway-diagramEverest 29 S Keyway Family Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/S-Family_Open_Keyway_Diagram.pdf
Everest Keyways Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Everest_Keyways.pdf
Observe Keyways for Classic Conventional Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Convetional_Observe_Keyways.pdf
Observe Keyways for Classic Primus XP Cylinders Diagramhttps://dvwi9lnoau63q.cloudfront.net/schlage/keywaydiagram/Primus_Observe_Keyways.pdf
miscellaneousND Series Locks & Latches Warrantyhttps://dvwi9lnoau63q.cloudfront.net/schlage/miscellaneous/Schlage_ND_Series_Commercial_Warranty_December_2013.pdf
price-book2024 Schlage Commercial Price Book (effective 3.2024)https://dvwi9lnoau63q.cloudfront.net/schlage/pricebooks/SCH_pricebook_3-2024.pdf
sell-sheetSchlage ND Series Electrified Cylindrical Locks Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/Schlage_ND_Series_Data_Sheet_110875.pdf
Schlage ND Series Sell Sheethttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/106486NDsellsheet.pdf
service-manualSchlage ND Series Service Manualhttps://dvwi9lnoau63q.cloudfront.net/schlage/brochures_sales_material/2021_Schlage_ND_Series_Service_Manual.pdf
templateND Series Templatehttps://dvwi9lnoau63q.cloudfront.net/schlage/templates/Schlage_ND_Series_Template.pdf

Specifications

Brand:
Schlage
Cylinder Type:
Keyless
Keyway:
Not Applicable
Latch Dimensions:
1-1/8" X 2-1/4"
Lever/Knob/Pull Design:
Broadway
Specifications Bullet 4:
1-1/8" X 2-1/4" Spring Latch
Backset (in):
2-3/4"
Manufacturer:
Schlage
Latch Description:
Spring Latch
Lever/Knob/Pull:
Lever
Includes Cylinder(s)?:
No
Latch Number:
13-248
Electronic:
No
Box Width (in):
8-1/4"
Grade:
Grade 1
ADA:
Yes
Door Range (Thickness):
1-5/8" - 2-1/8"
Can Be Keyed:
No
Country Of Origin:
Mexico
Box Height (in):
4-3/4"
Base Material:
Brass Bronze
Box Depth (in):
9-1/2"
Finish Description:
Satin Nickel
Finish:
619/US15
Specifications Bullet 3:
2-3/4" Backset
Function:
Passage
Strike Number:
10-025
Commercial Residential:
Commercial
Door Handing:
Non-handed
Specifications Bullet 5:
1-1/4" x 4-7/8" ASA Strike
Product Warranty:
10 Year Warranty
Box Weight (lbs):
5 lbs
Latch Throw (in):
1/2"
Specifications Bullet 2:
Broadway Lever
Specifications Bullet 10:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 7:
3-7/16" Rose
Specifications Bullet 9:
2-1/8" Bore Hole Diameter
Certification:
ANSI A156.2-2011, Series 4000, Grade 1, UL Listed
Specifications Bullet 1:
Grade 1 Passage Function Cylindrical Lockset
Fire Rated:
3 Hours {A}
Specifications Bullet 6:
3-1/16" Projection
Bore Hole Diameter (in):
2-1/8"
Specifications Bullet 8:
For Doors 1-5/8" - 2-1/8" Thick
Rose/Escutcheon Dimensions (in):
3-7/16"
Specifications Bullet 11:
10 Year Warranty
Minimum Door Thickness (in):
1-5/8"
Rose/Escutcheon Design:
Not Applicable
Maximum Door Thickness (in):
2-1/8"
Series:
ND Series Lever Locks
Strike Description:
ASA Strike
Projection (in):
3-1/16"
Strike Dimensions:
1-1/4" x 4-7/8"
Parent Manufacturer:
Allegion
Rose/Escutcheon:
Rose
UOM:
1
Uid:
SCH100ND10SBRW619
Url Title:
nd10s-brw-619
Title:
ND10S BRW 619 Cylindrical Lock
Type:
Locks, Cylinders, Cores, Keyblanks
Sub Type:
Cylindrical Lock
Last Modified:
2023-02-28T07:44:47+00:00
Last Pricing:
2023-02-24T00:00:00+00:00
Msrp:
614
Avg Lead Time:
31
Finish Family:
Matte Silver
Popularity:
9
Pack Weight:
5
Pack Length:
9.5
Pack Width:
8.25
Pack Height:
4.75
Pack Volume:
372.28125
Ul Listing:
UL/cUL Listed
Ansi Code:
ANSI A156.2 Series 4000, Grade 1
Baa Qualified:
Yes
Limited Warranty:
10 Years
Accessible:
Yes
Unit Of Measure:
Each
Unit Of Measure 2:
Case
Unit Of Measure 2 Qty:
6
Vendor:
Allegion

Warranty Information

10 Year Warranty
